Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the power door lock switch is located in the door trim panel release the retaining tabs using a flat-bladed tool.

    Remove the switch from the door trim panel.

  2. If the power door lock switch is located in the door handle bezel remove the bezel from the door trim panel. Refer to DOOR HANDLE BEZEL REPLACEMENT  .
  3. Disconnect the electrical connector (2) from the power door lock switch (1).
  4. With the flat-bladed tool release the retaining tabs for the door lock switch on the trim bezel.
  5. Remove the power door lock switch (1) from the trim bezel.

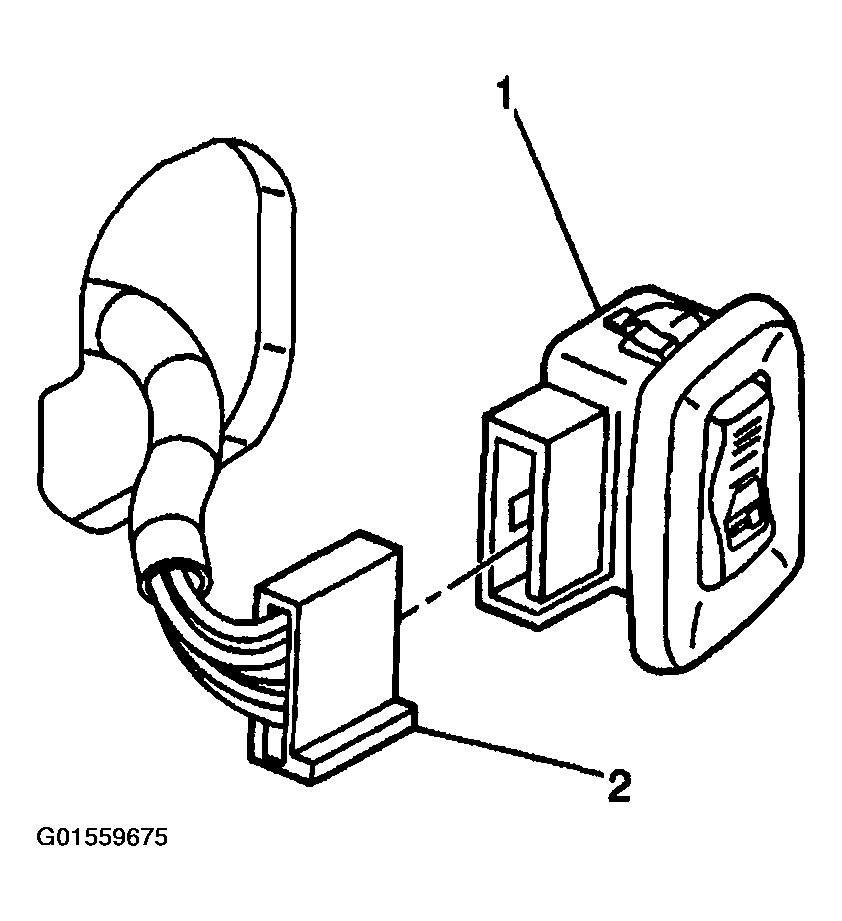

    Fig 1: Disconnecting Electrical Connector From Power Door Lock Switch
    G01559675Courtesy of GENERAL MOTORS CORP.
