Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper trim finish panel from the front door. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  2. Remove the rear view mirror sound absorber.
  3. Disconnect the rear view mirror electrical connector (3), if equipped.

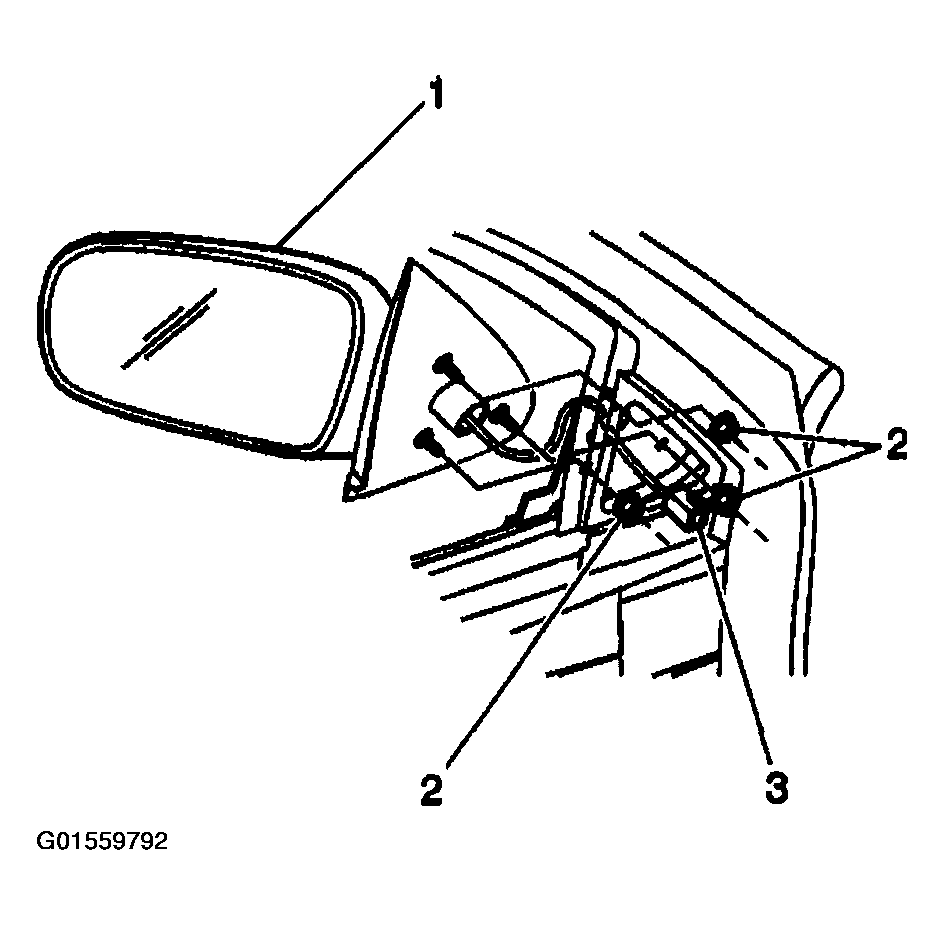

    Fig 1: Disconnecting Rear View Mirror Electrical Connector
    G01559792Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear view mirror nuts (2).
  5. Remove the rear view mirror (1) from the door.

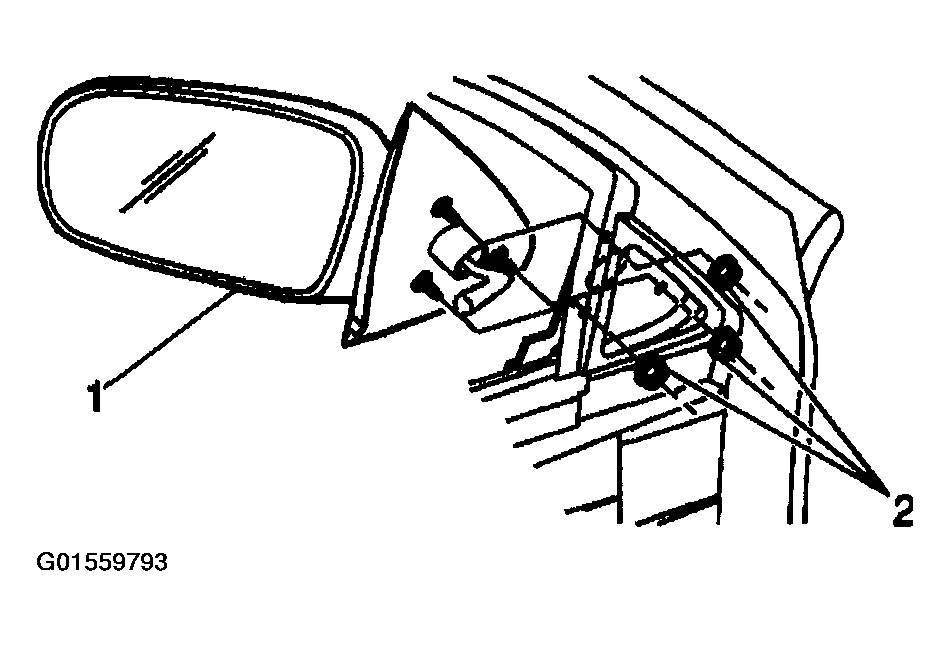

    Fig 2: Removing Rear View Mirror From Door
    G01559793Courtesy of GENERAL MOTORS CORP.
