Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger carpet retainer. Refer to CARPET RETAINER REPLACEMENT (SEDAN) or CARPET RETAINER REPLACEMENT (COUPE) in Interior Trim.
  2. Remove enough of the carpet to access the door lock relay (1) located on the passenger hinge pillar (2).
  3. Pull the relay (1) away from the hinge pillar (2) disengaging the rosebud retainer.
  4. Disconnect the electrical connector (3) from the relay (1).
  5. Remove the relay (1) from the vehicle.

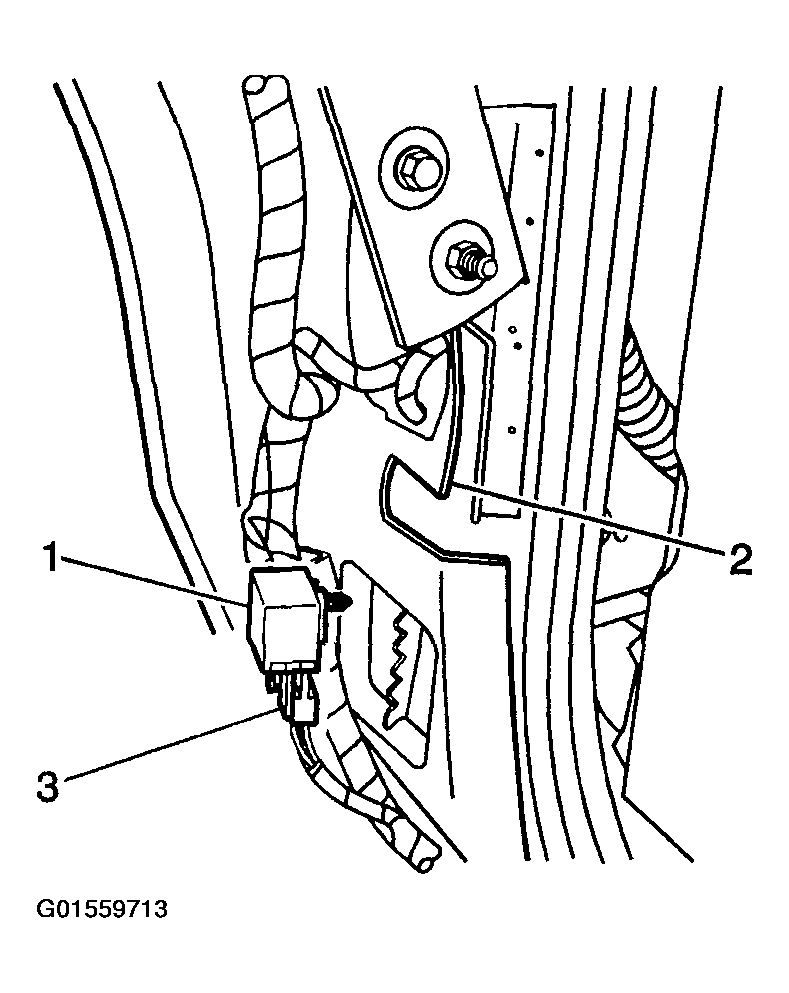

    Fig 1: Removing Relay From Vehicle - Power Door
    G01559713Courtesy of GENERAL MOTORS CORP.
