Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door in order to remove the rear door hinges.
  2. Clean the mounting surfaces with clean a rag and mark the rear door hinge locations on each surface with a grease pencil or other suitable marker.
  3. Remove the bolts from the doorside rear door hinge.
  4. Remove the bolts (1-5) from the bodyside rear door hinge.
  5. Remove the rear door hinge from the vehicle.

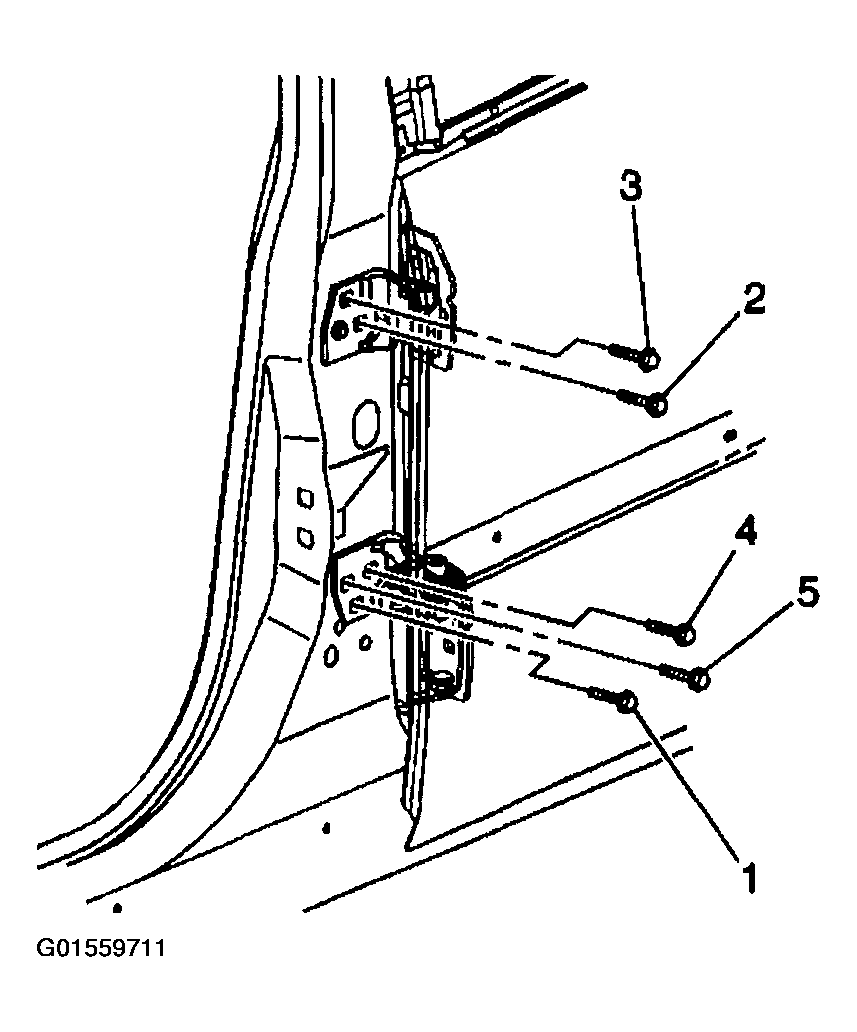

    Fig 1: Removing Bolts (1-5) From Bodyside Rear Door Hinge
    G01559711Courtesy of GENERAL MOTORS CORP.
