Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the door.
  2. Clean the mounting surfaces of the hinges with a clean rag and mark the front door hinge locations on each surface with a grease pencil or other suitable marker.
  3. Remove the front door. Refer to DOOR REPLACEMENT - SIDE FRONT  .

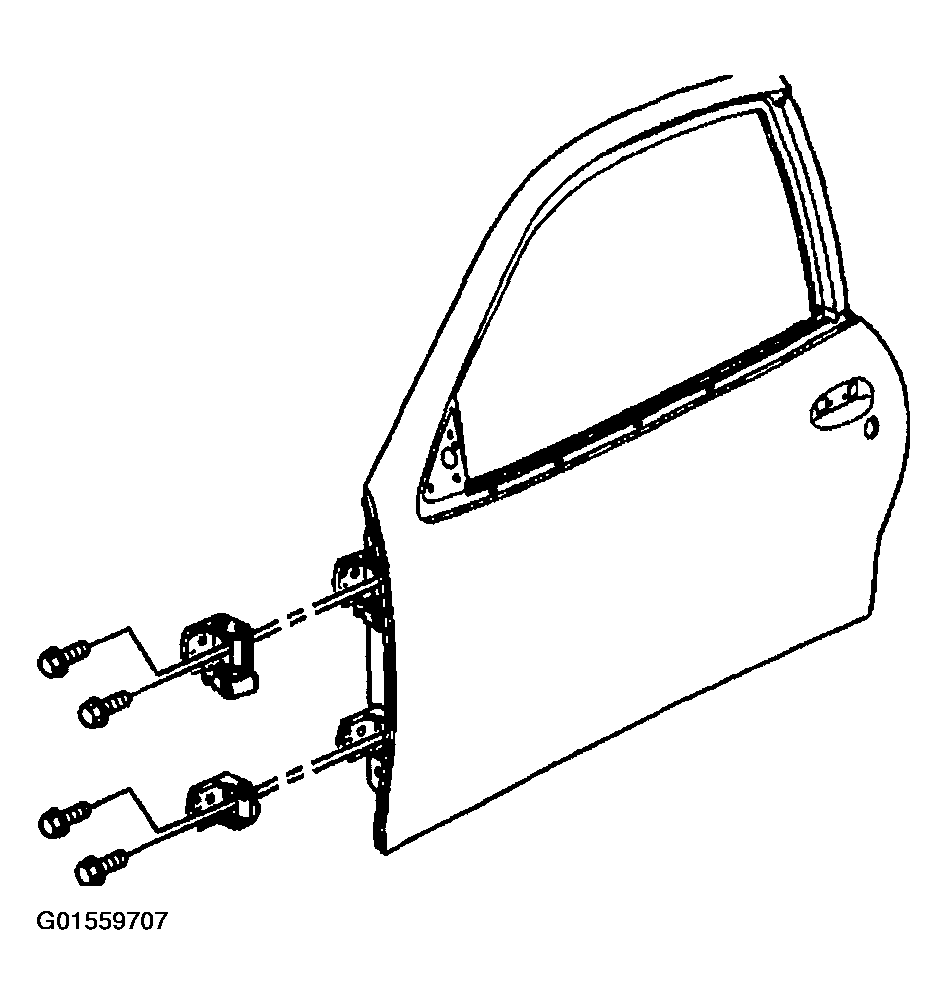

    Fig 1: Removing Door Hinge - Front Door
    G01559707Courtesy of GENERAL MOTORS CORP.
  4. Remove the hinge to pillar bolts and nuts.
  5. Remove the front door hinge from the vehicle.

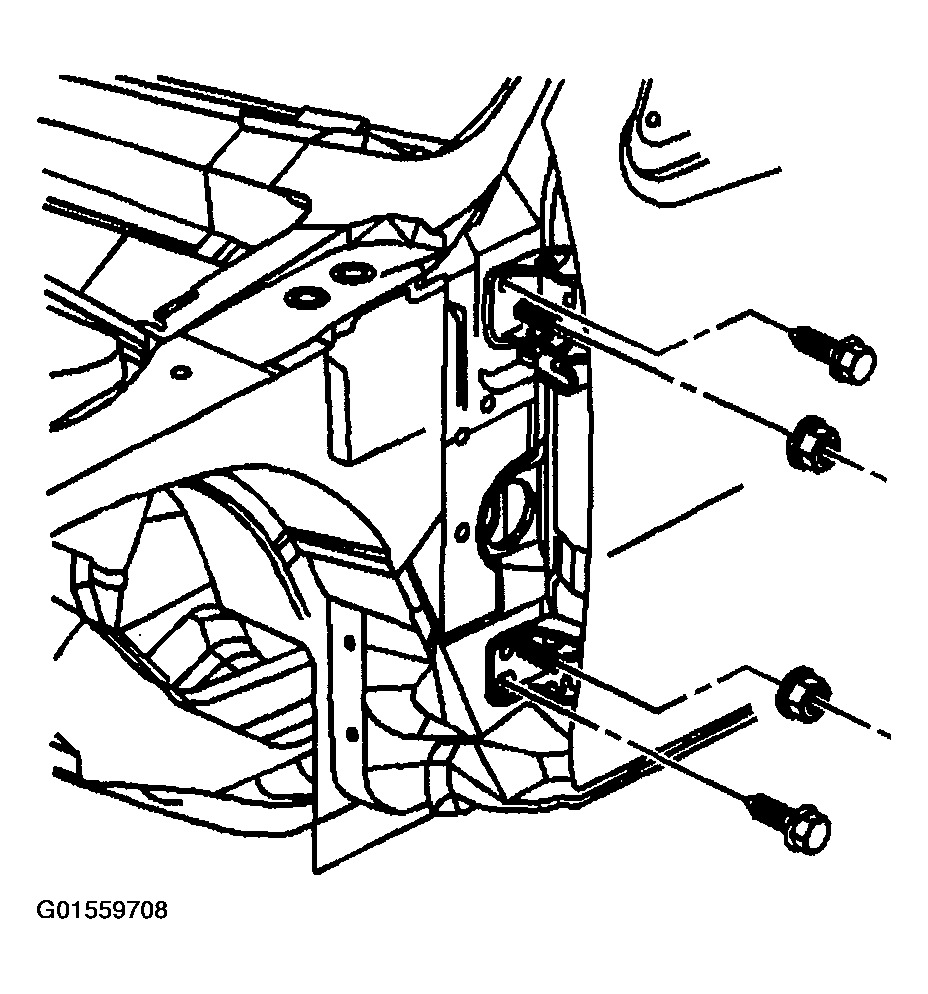

    Fig 2: Removing Hinge To Pillar Bolts And Nuts - Front Door
    G01559708Courtesy of GENERAL MOTORS CORP.
