Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (CHEVROLET)  .
  3. Remove the bolts (2) from the engine assembly.
  4. Remove the energy absorber from the door.

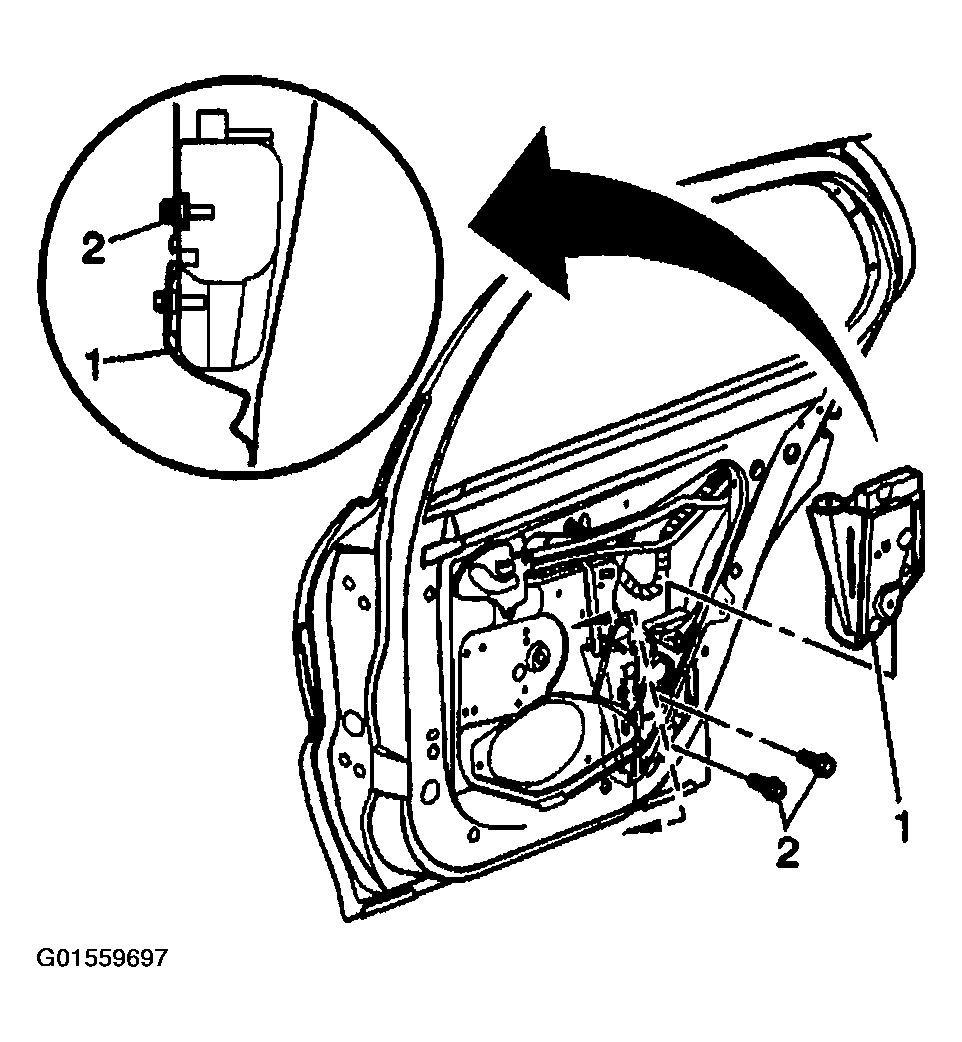

    Fig 1: Removing Energy Absorber From Door - Rear Door
    G01559697Courtesy of GENERAL MOTORS CORP.
