Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window to the full DOWN position.
  2. Remove the door outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - FRONT DOOR WINDOW BELT OUTER  or SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  3. Pull the door window channel retainer at the door window frame applique (1) in order to access the door window frame applique screws (2).
  4. Remove the screws (2) from the door window frame applique.
  5. Pull and slide the door window frame applique in order to disengage the applique (1) from the door.

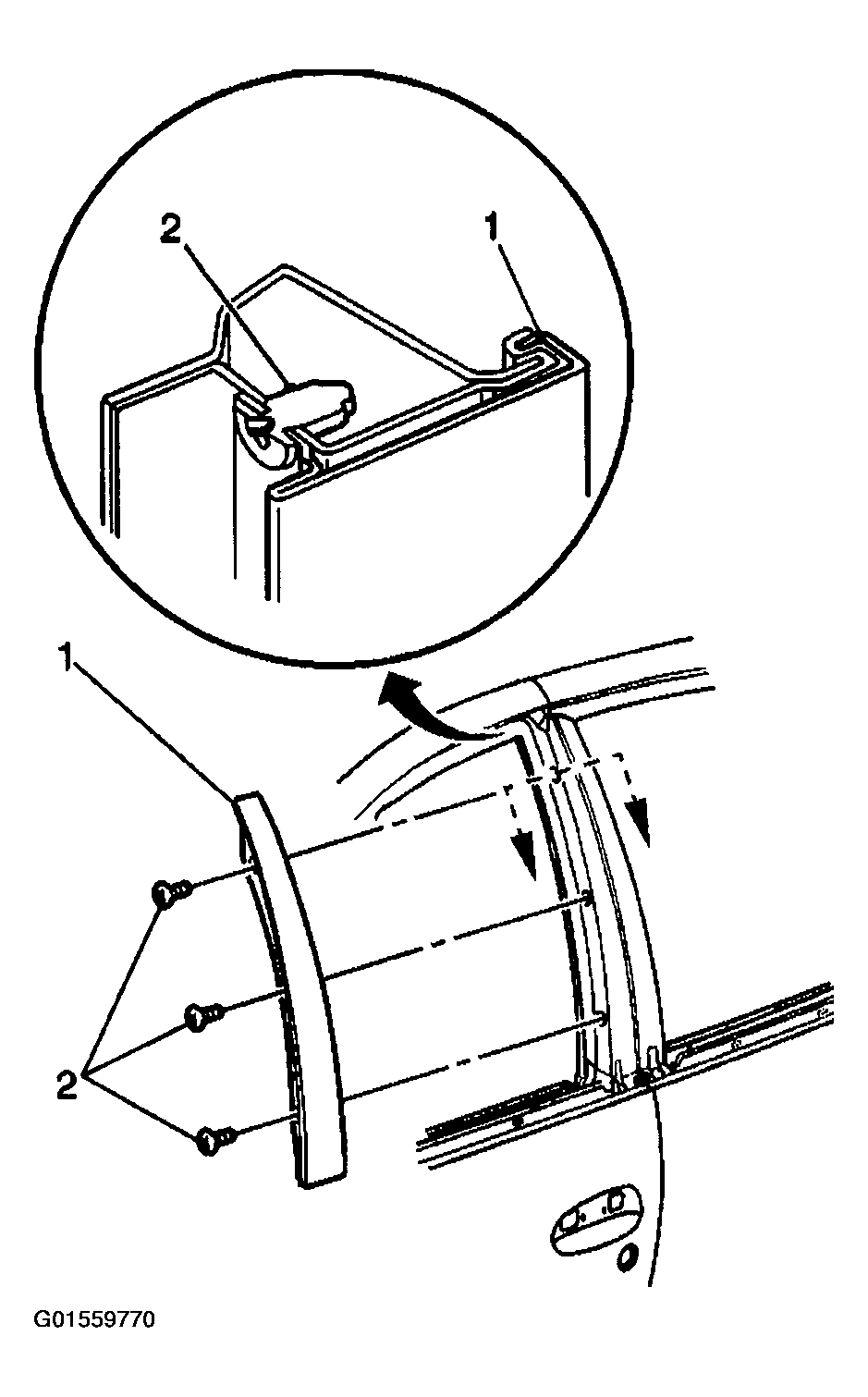

    Fig 1: Removing Door Window Frame Applique From Door
    G01559770Courtesy of GENERAL MOTORS CORP.
