Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (CHEVROLET)  .
  2. Drill out the rivets (3) which retain the door armrest hanger plate (1).
  3. Remove the door armrest hanger plate (1) from the door.

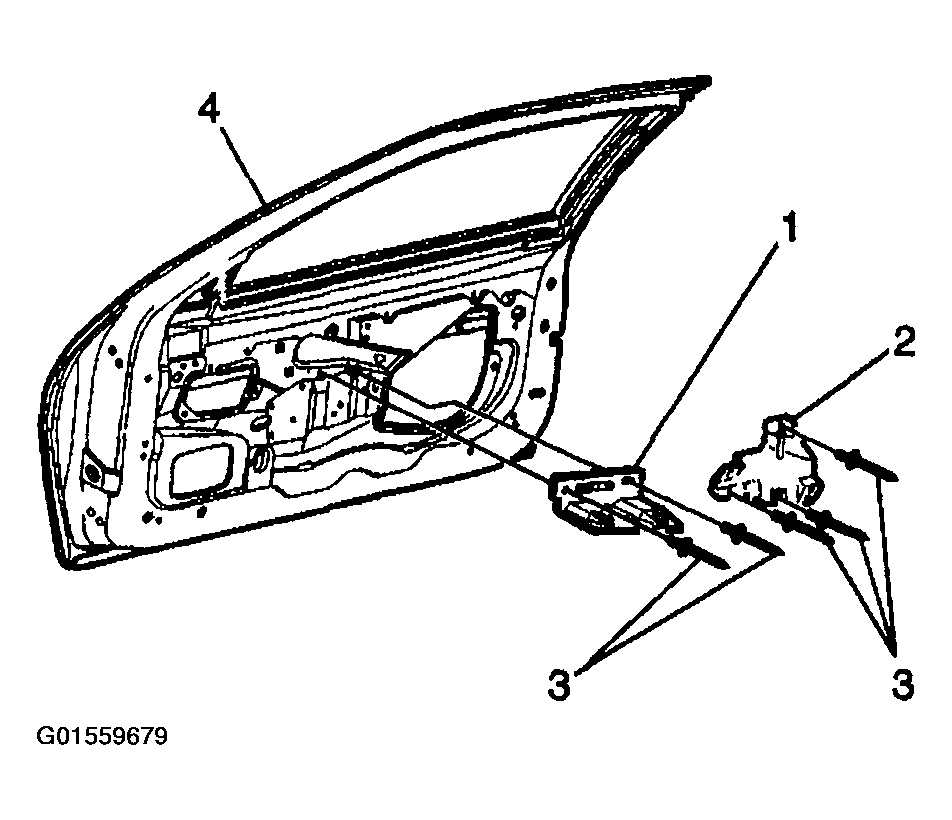

    Fig 1: Removing Door Armrest Hanger Plate From Door
    G01559679Courtesy of GENERAL MOTORS CORP.
