Power Door Locks Inoperative - Passenger Door (W/O Keyless Entry)
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

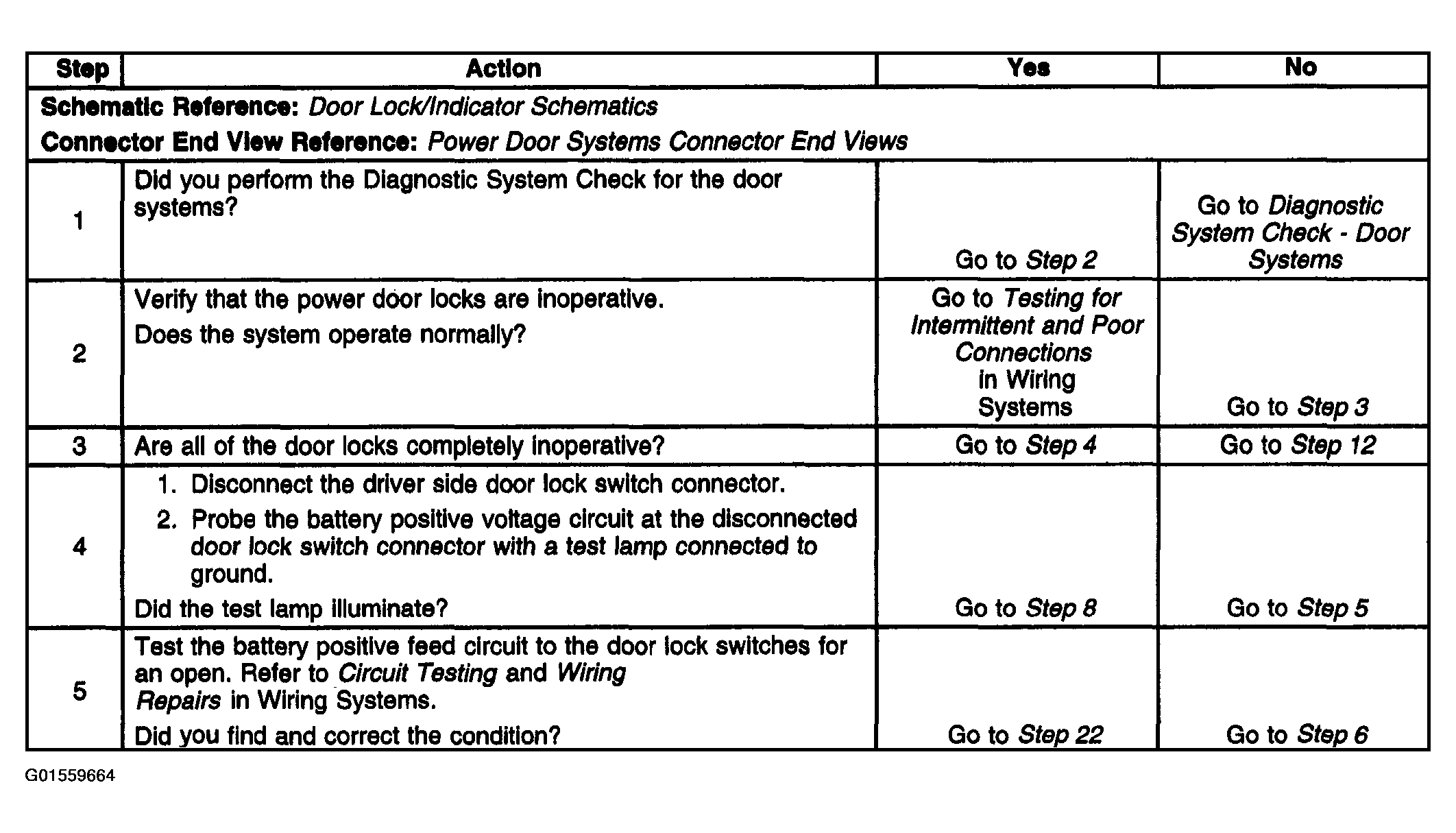

Fig 1: Power Door Locks Inoperative Passenger Door - W/O Keyless Entry (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

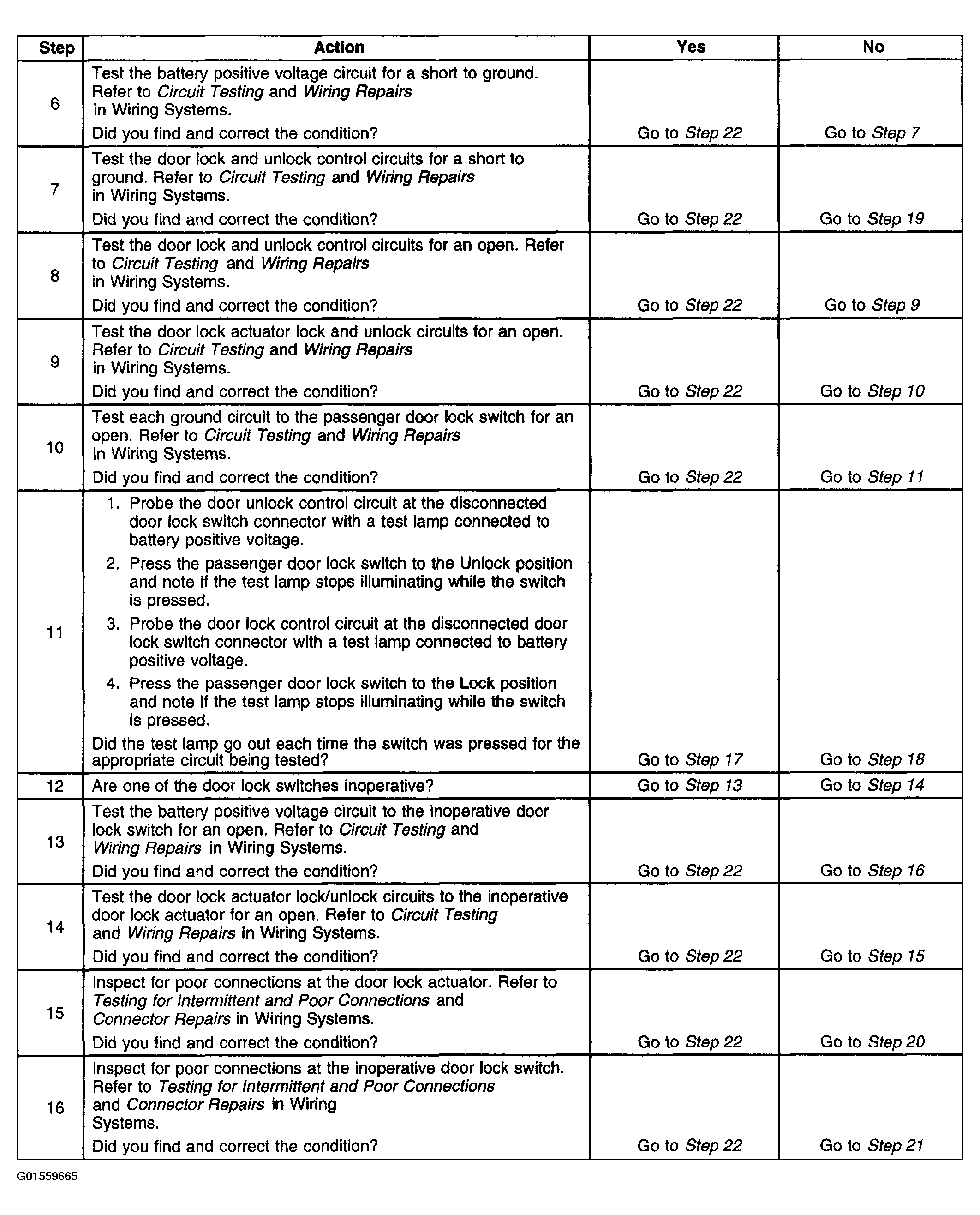

Fig 2: Power Door Locks Inoperative Passenger Door - W/O Keyless Entry (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

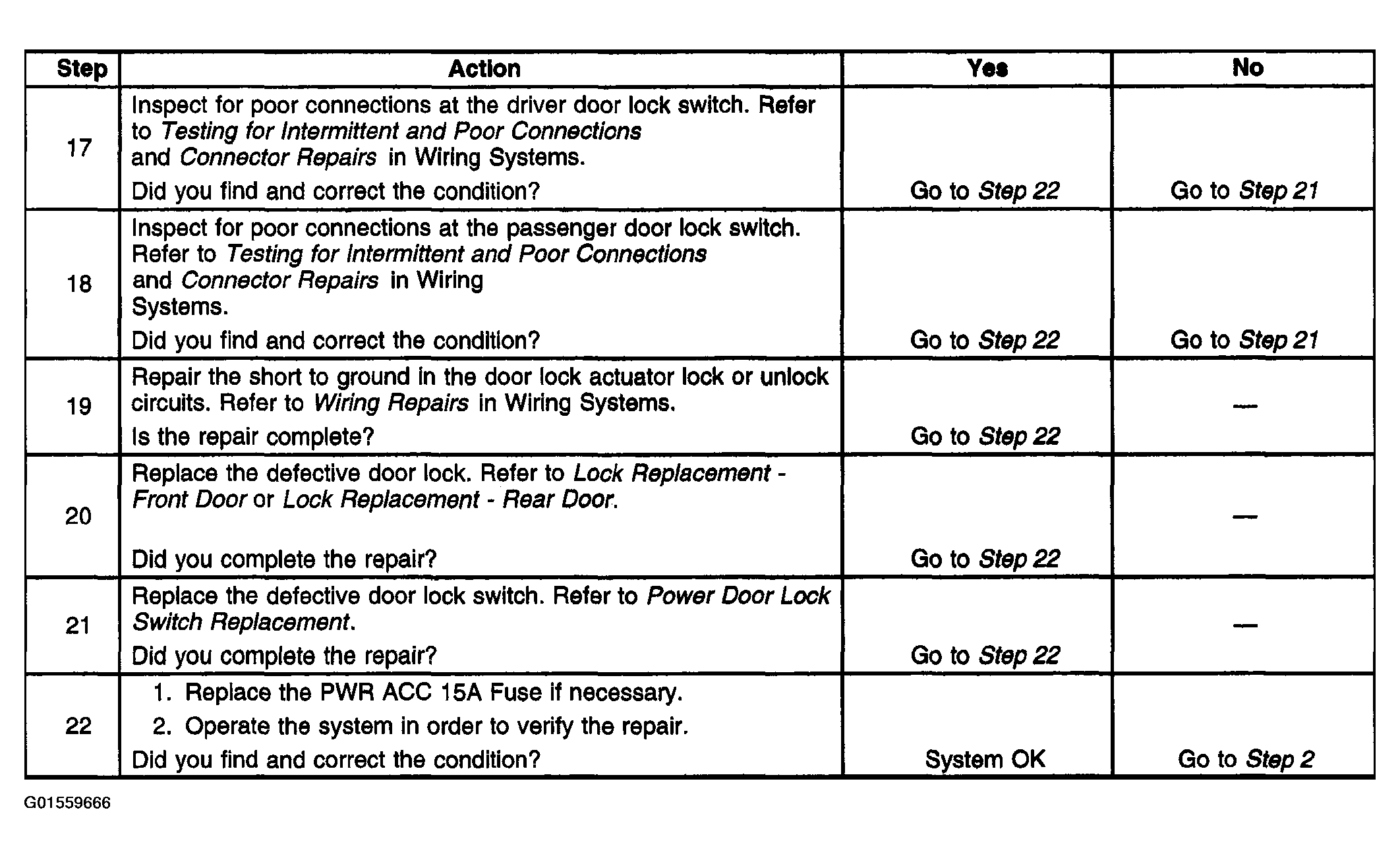

Fig 3: Power Door Locks Inoperative Passenger Door - W/O Keyless Entry (3 Of 3)
