Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)  .
  2. Remove the energy absorber. Refer to ENERGY ABSORBER REPLACEMENT - REAR  .
  3. Remove the nuts from the impact bar.
  4. Remove the impact bar.

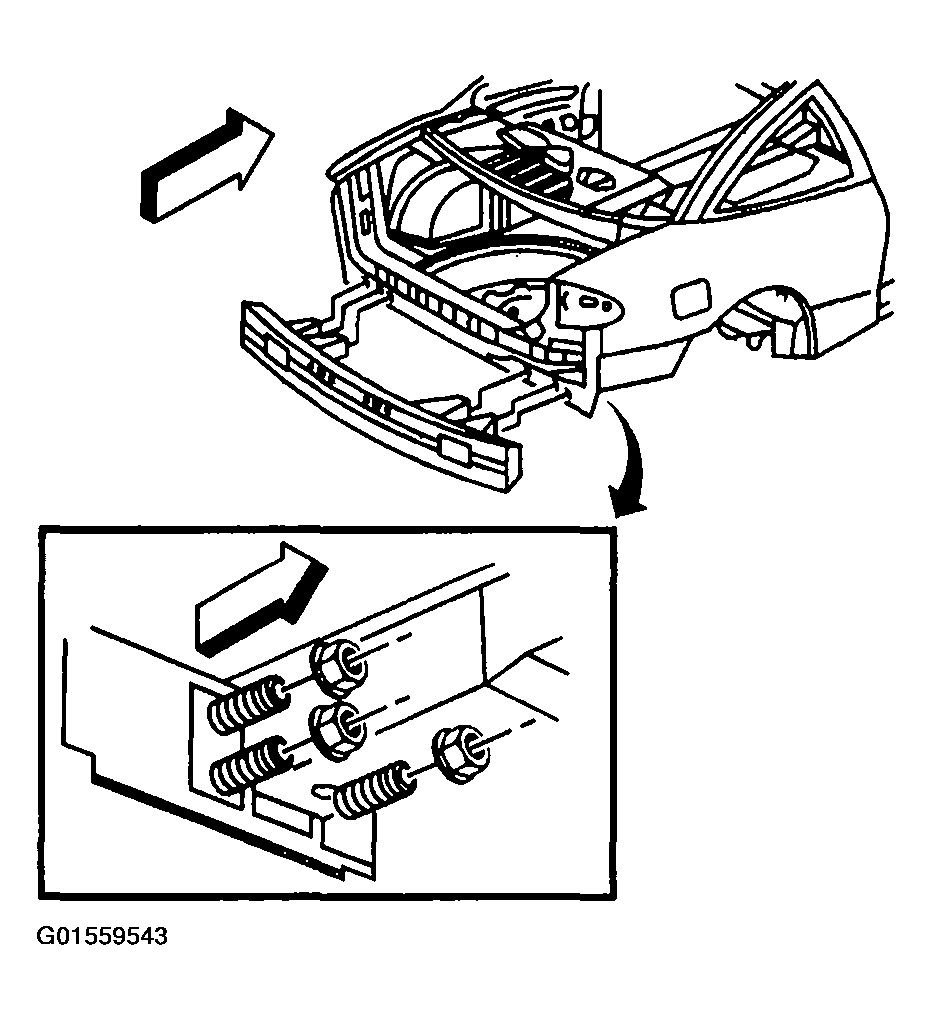

    Fig 1: Removing Nuts From Impact Bar
    G01559543Courtesy of GENERAL MOTORS CORP.
