Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front bumper impact bar.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts to the front bumper impact bar.

    Tighten

    Tighten the front bumper impact bar nuts to 150 N.m (111 lb ft).

  3. Install the wiring harness and the components to the impact beam.
  4. Install the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)  .
  5. Lower the vehicle.

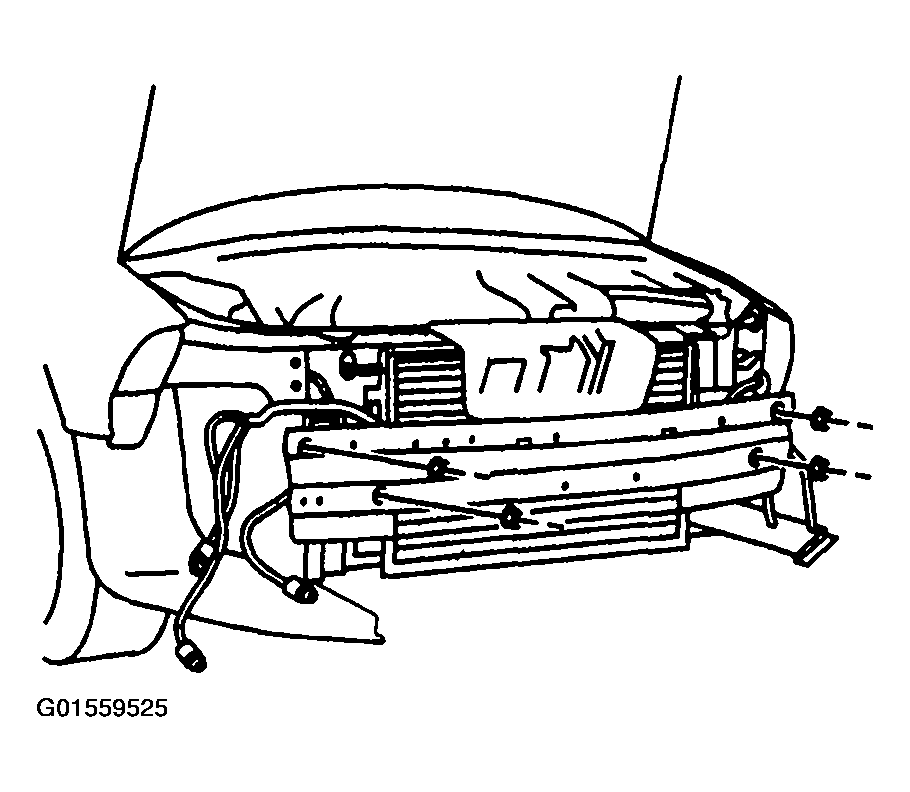

    Fig 1: Installing Nuts To Front Bumper Impact Bar
    G01559525Courtesy of GENERAL MOTORS CORP.
