Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear fascia bracket into the rear fascia.
  2. Install the rear license plate lamp socket and bulb. Refer to LICENSE LAMP REPLACEMENT (SEDAN AND COUPE) or LICENSE LAMP REPLACEMENT (SUNFIRE GT) in Lighting Systems.
  3. Install the electrical connector to the rear fascia.
  4. Perform the following steps to install the rear fascia:
    1. Align the rear fascia to the center of the rear impact bar.
    2. With the aid of an assistant, fit both corners of the rear fascia to the quarter panel.
  5. Install the push pin fasteners to the lower center tabs of the rear fascia.

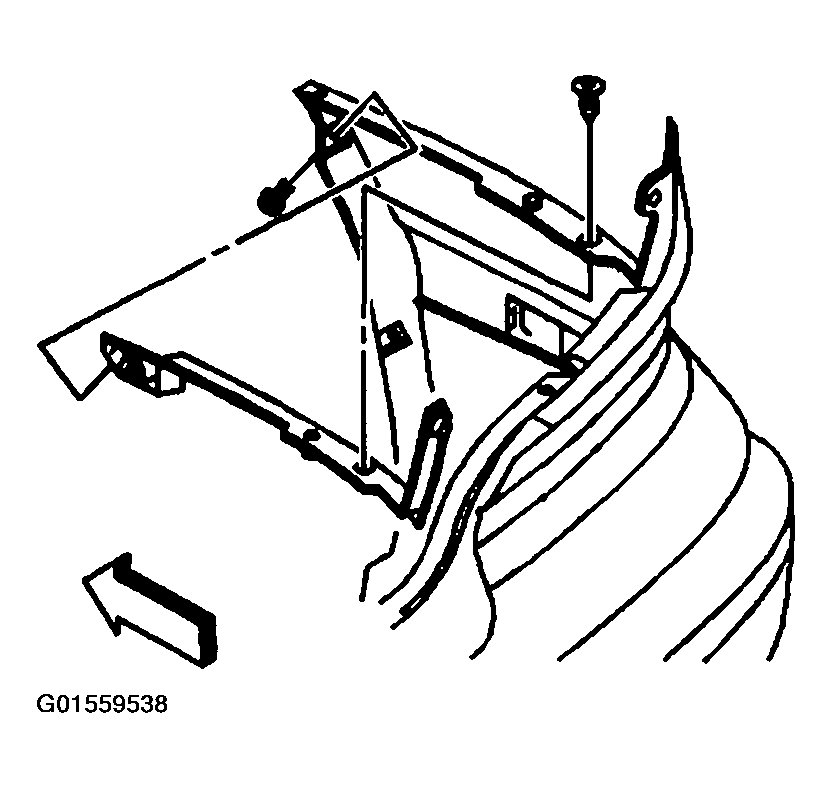

    Fig 1: Installing Rear Fascia Bracket Into Rear Fascia
    G01559538Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the screws to the rear fascia in the rear wheel opening.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  7. Lower the vehicle.

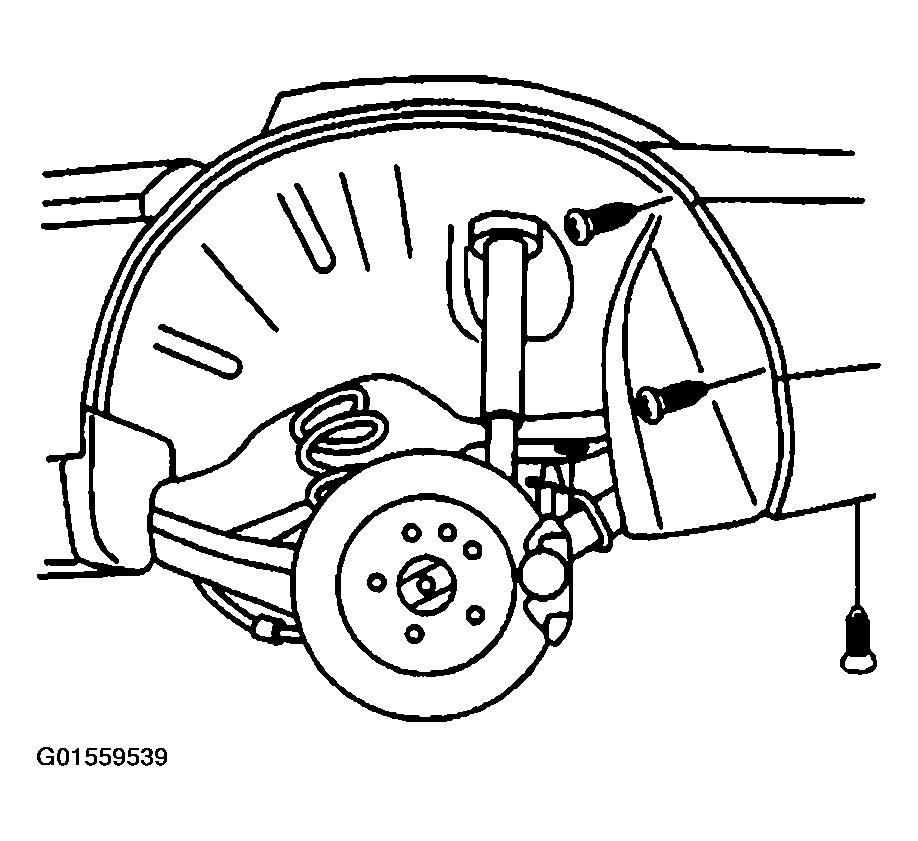

    Fig 2: Installing Screws To Rear Fascia In Rear Wheel Opening
    G01559539Courtesy of GENERAL MOTORS CORP.
  8. Install the screws that attach the rear fascia to the quarter panel.

    Tighten

    Tighten the screws to 3 N.m (27 lb in).

  9. Install the rear compartment trim as required. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  10. Close the rear compartment lid.

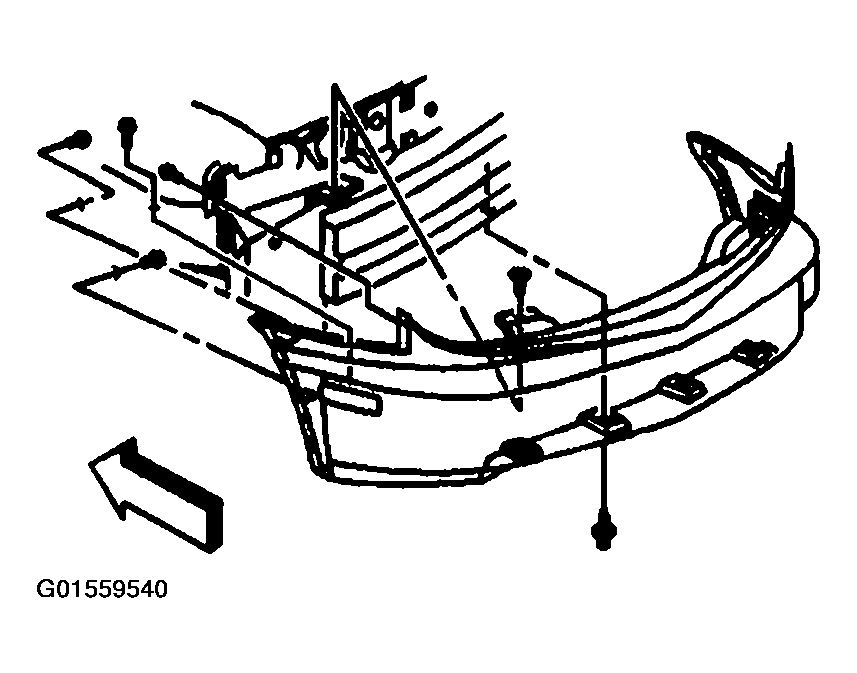

    Fig 3: Installing Screws Attaching Rear Fascia To Quarter Panel
    G01559540Courtesy of GENERAL MOTORS CORP.
