Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Position the front bumper fascia on the vehicle.

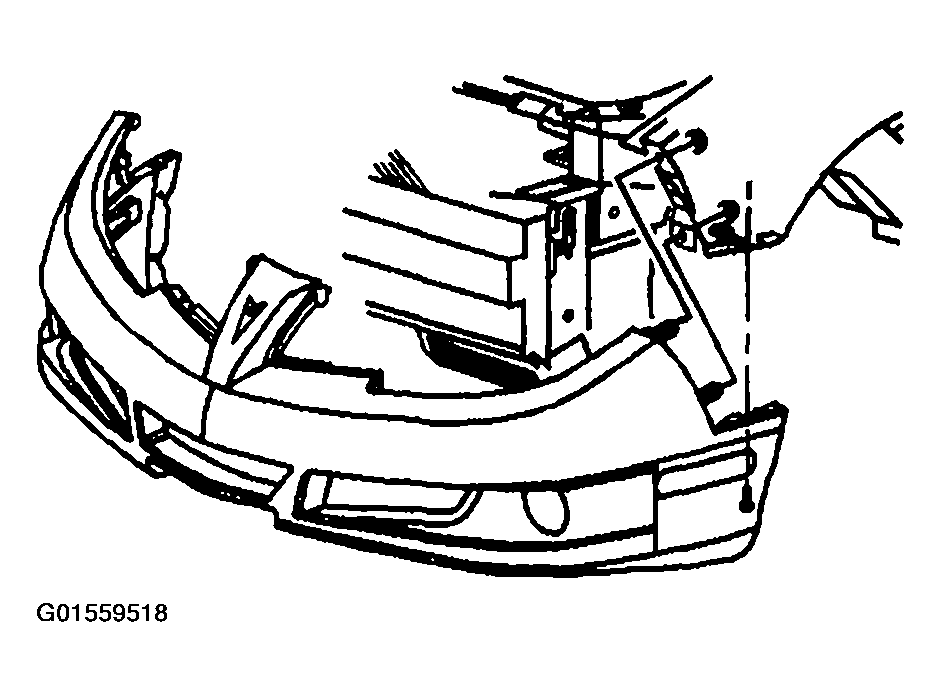

Fig 1: Positioning Front Bumper Fascia On Vehicle
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Accessing through the headlamp opening, install the bolts that attach the fascia to the fender.
Tighten

Tighten the bolts to 9 N.m (80 lb in).

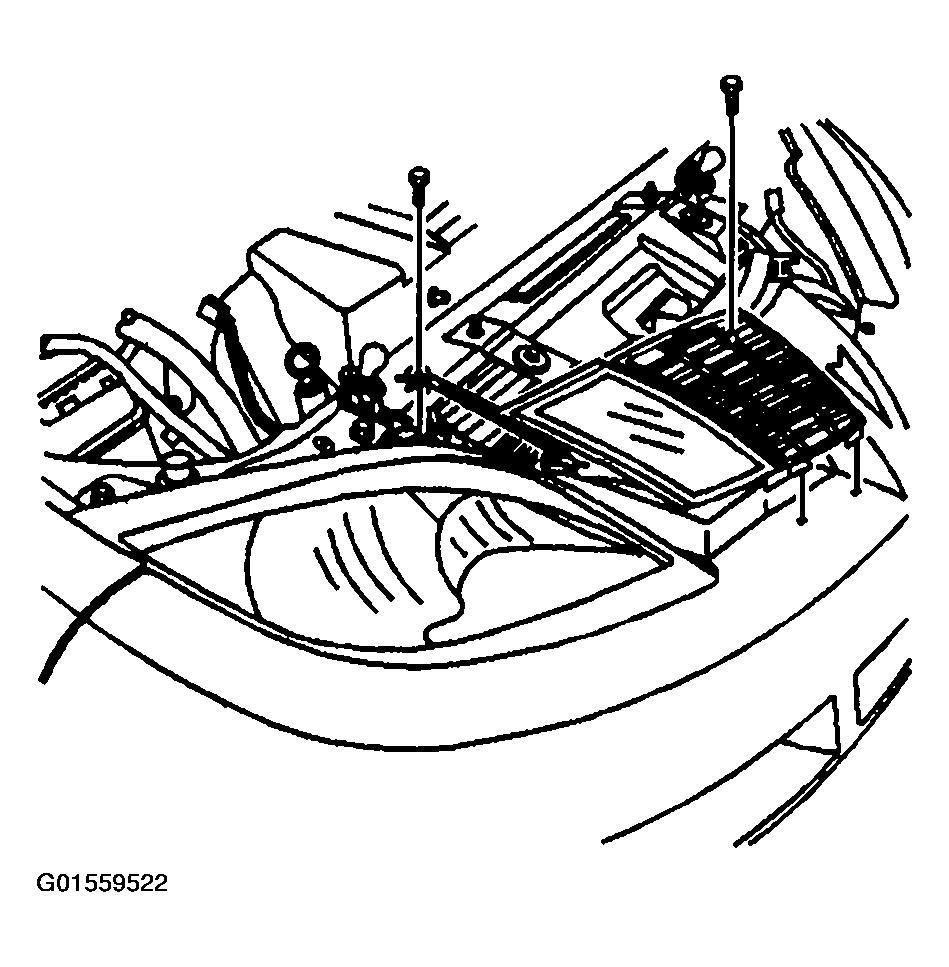

Fig 2: Installing Bolts Attaching Fascia To Fender
Courtesy of GENERAL MOTORS CORP.
Connect the fog lamp electrical connectors, if equipped.

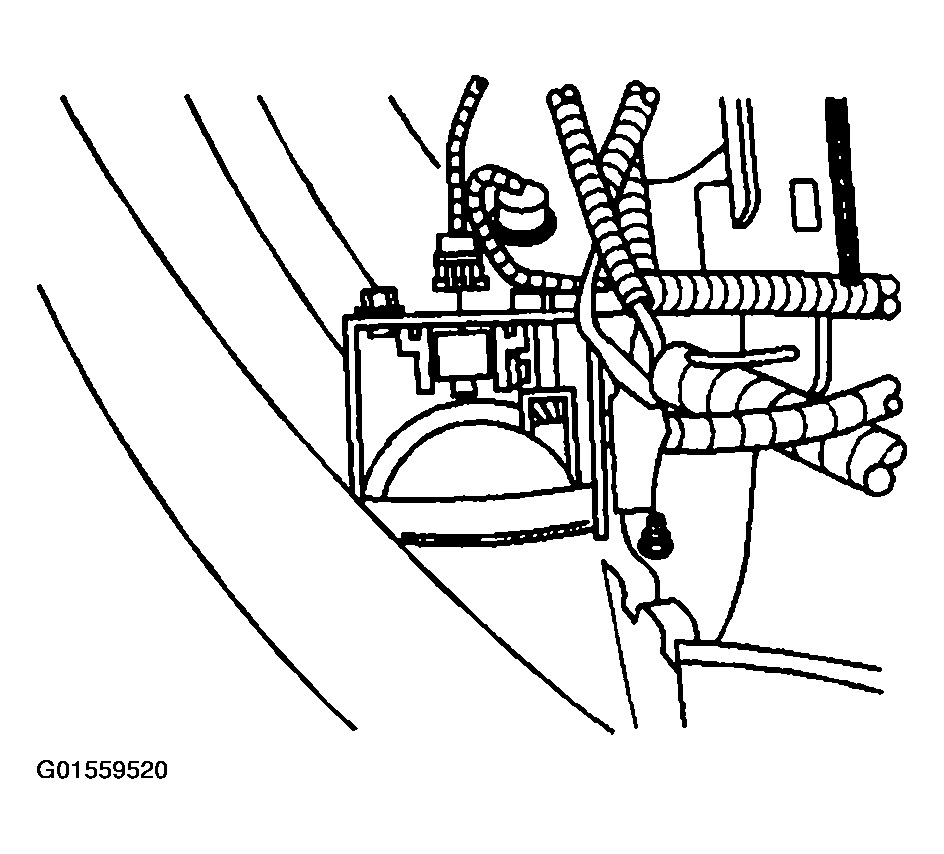

Fig 3: Connecting Fog Lamp Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the fasteners that attach the fascia brackets to the bumper beam.

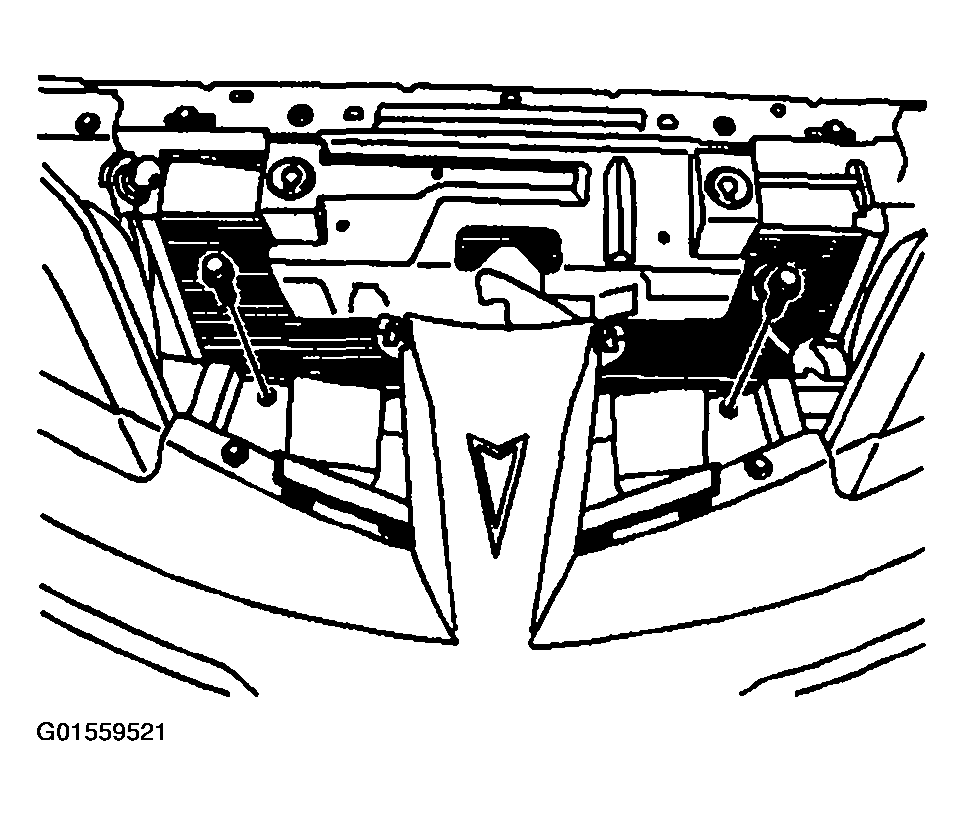

Fig 4: Installing Fasteners Attaching Fascia Brackets To Bumper Beam
Courtesy of GENERAL MOTORS CORP.
Install the headlamps. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT (CHEVROLET) in Lighting Systems.
Install the grille and the park/turn signal turn lamp assembly. Refer to GRILLE REPLACEMENT (PONTIAC) in Exterior Trim and to PARK/TURN SIGNAL LAMP REPLACEMENT (PONTIAC) in Lighting Systems.

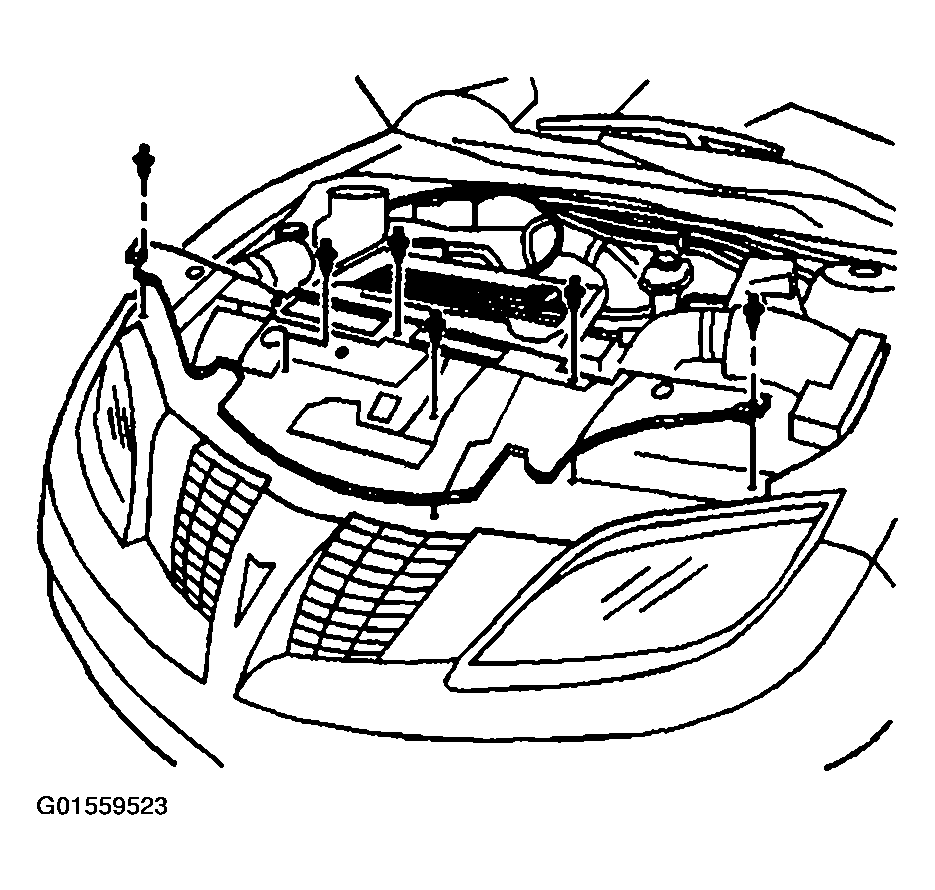

Fig 5: Installing Grille And Park/Turn Signal Turn Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
Install the hood latch close out panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
Install the front fender liner to the front fascia.

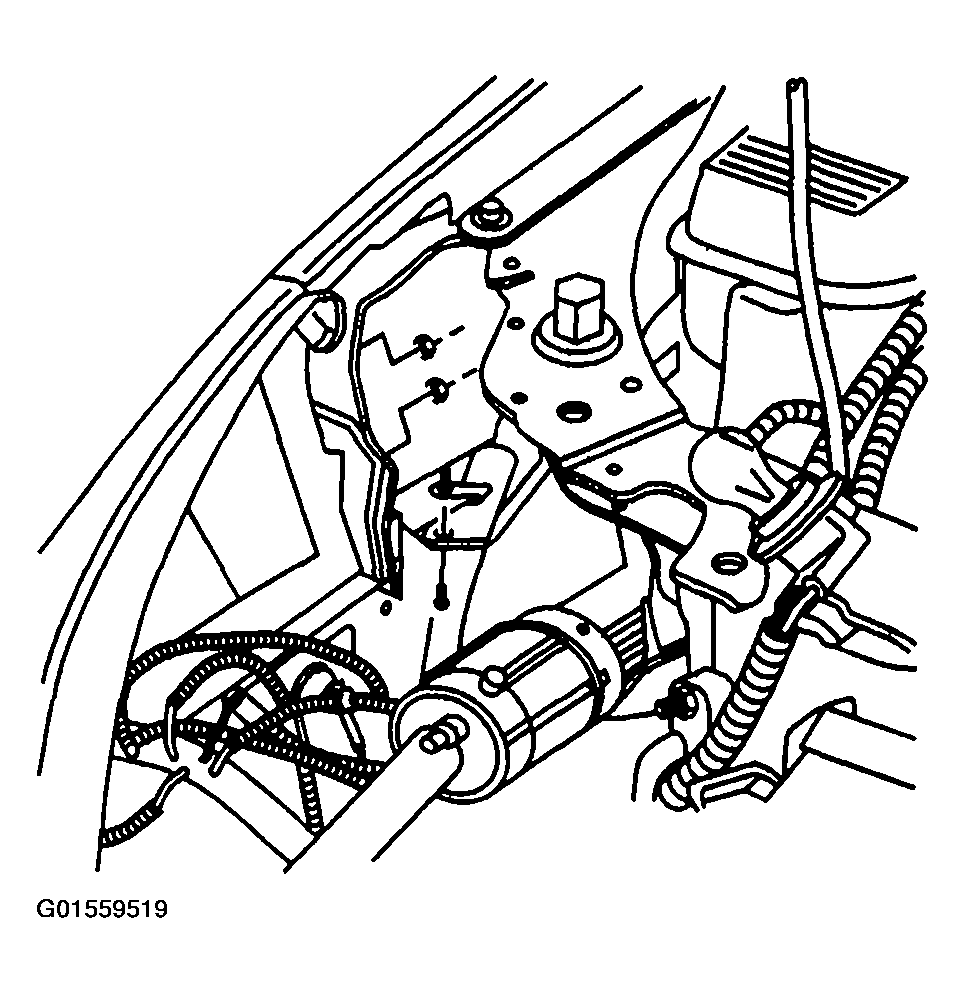

Fig 6: Installing Front Fender Liner To Front Fascia
Courtesy of GENERAL MOTORS CORP.
