Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front fender liner from the fascia.
Remove the hood latch close out panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT in Body Front End.
Remove the headlamp assemblies. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT (CHEVROLET) in Lighting Systems.

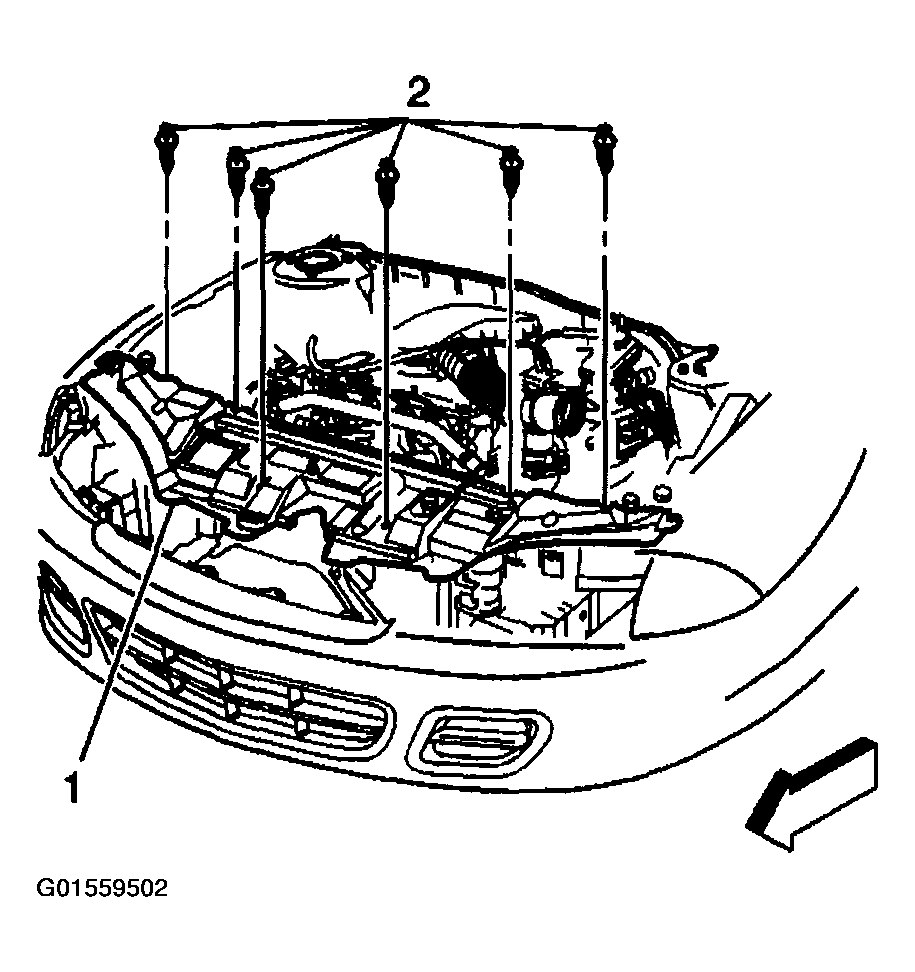

Fig 1: Removing Front Fascia Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the fasteners that attach the front fascia bracket to the front impact beam.

Fig 2: Removing Fasteners Attaching Front Fascia Bracket To Front Impact Beam
Courtesy of GENERAL MOTORS CORP.
Disconnect the fog lamp electrical connectors, if equipped.

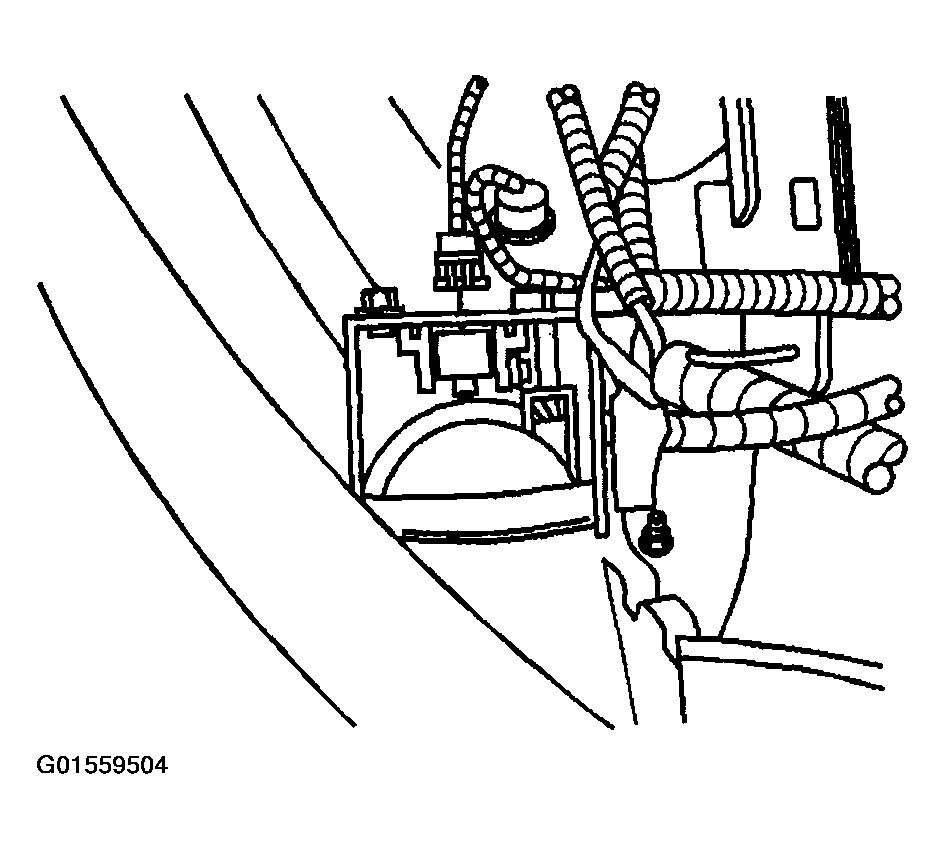

Fig 3: Disconnecting Fog Lamp Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Remove the center fastener that attaches the fascia to the fender. Access the fastener from the top, through the headlamp openings.
Disengage the fascia from the shoulder bolts by pulling the fascia outward at the fenders.

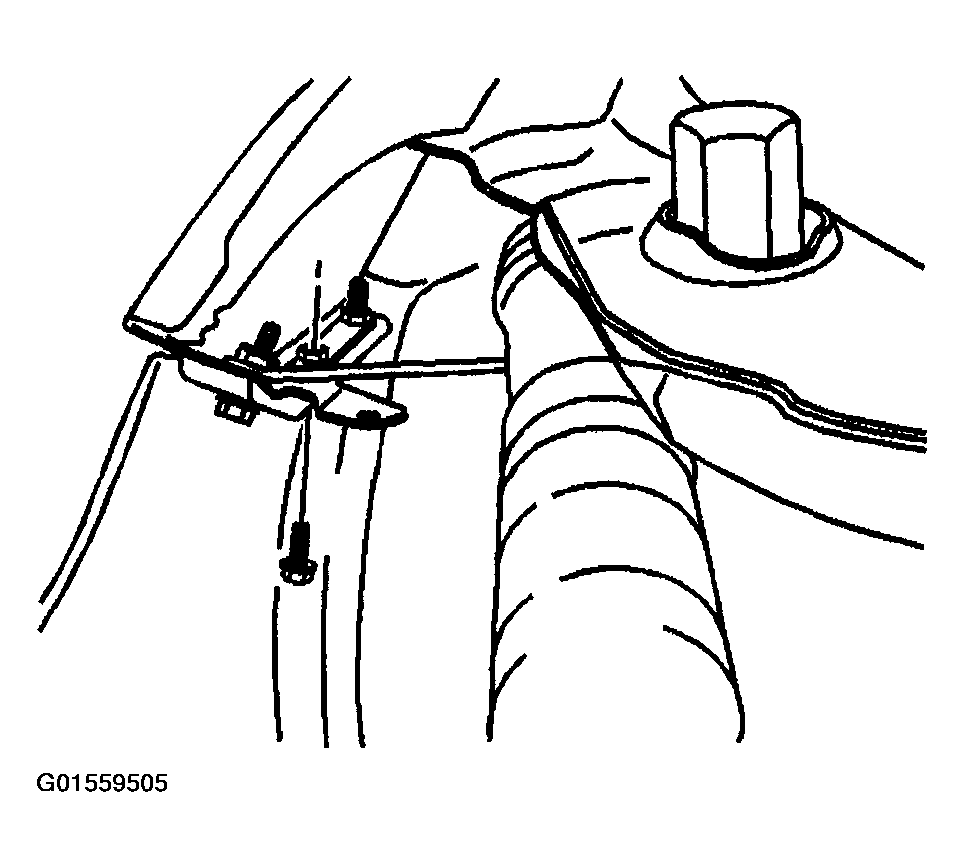

Fig 4: Removing Center Fastener Attaching Fascia To Fender
Courtesy of GENERAL MOTORS CORP.
Remove the front bumper fascia from the vehicle.

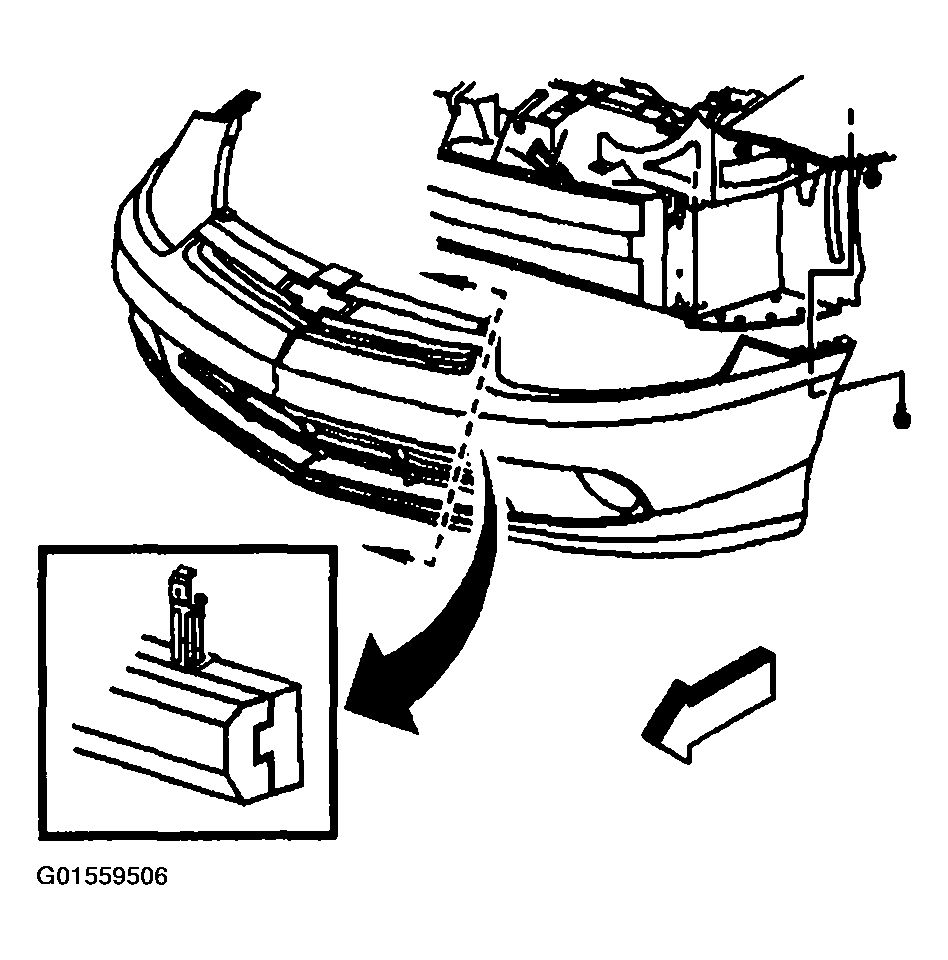

Fig 5: Removing Front Bumper Fascia From Vehicle
Courtesy of GENERAL MOTORS CORP.
