Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)  .
  2. Remove the push-in retainers from the rear bumper energy absorber.
  3. Remove the rear bumper energy absorber from the impact bar.

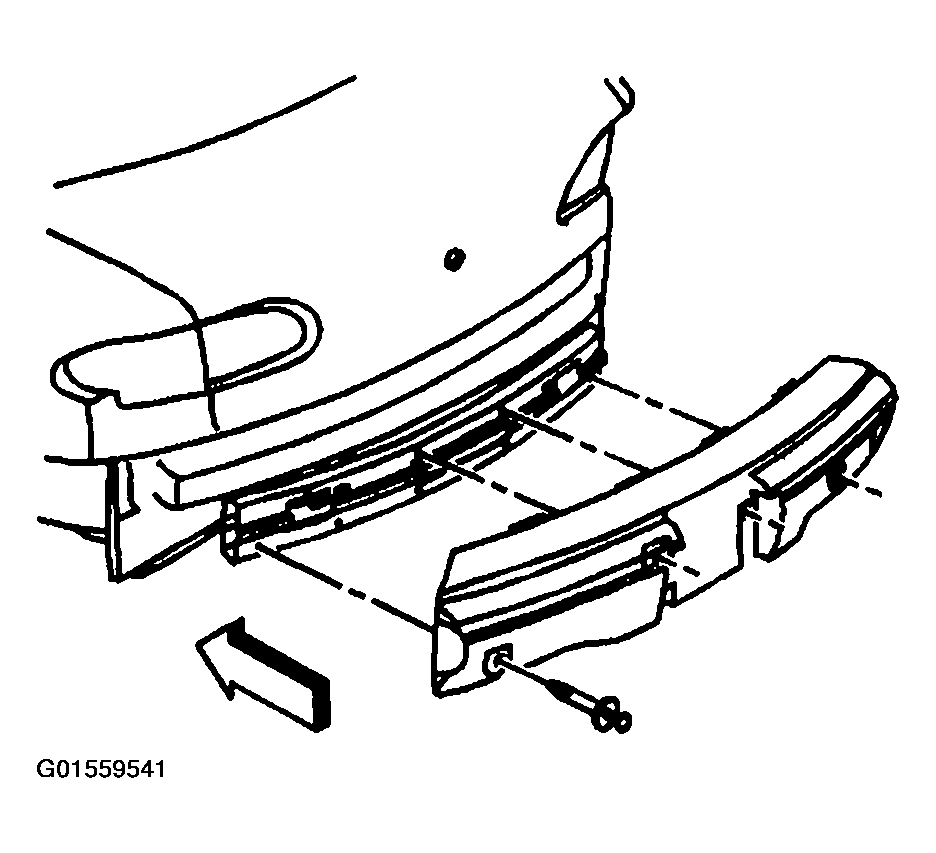

    Fig 1: Removing Push-In Retainers From Rear Bumper Energy Absorber
    G01559541Courtesy of GENERAL MOTORS CORP.
