Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear bumper energy absorber to the impact bar.
  2. Install the push-in retainers to the rear bumper energy absorber.
  3. Install the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC)  .

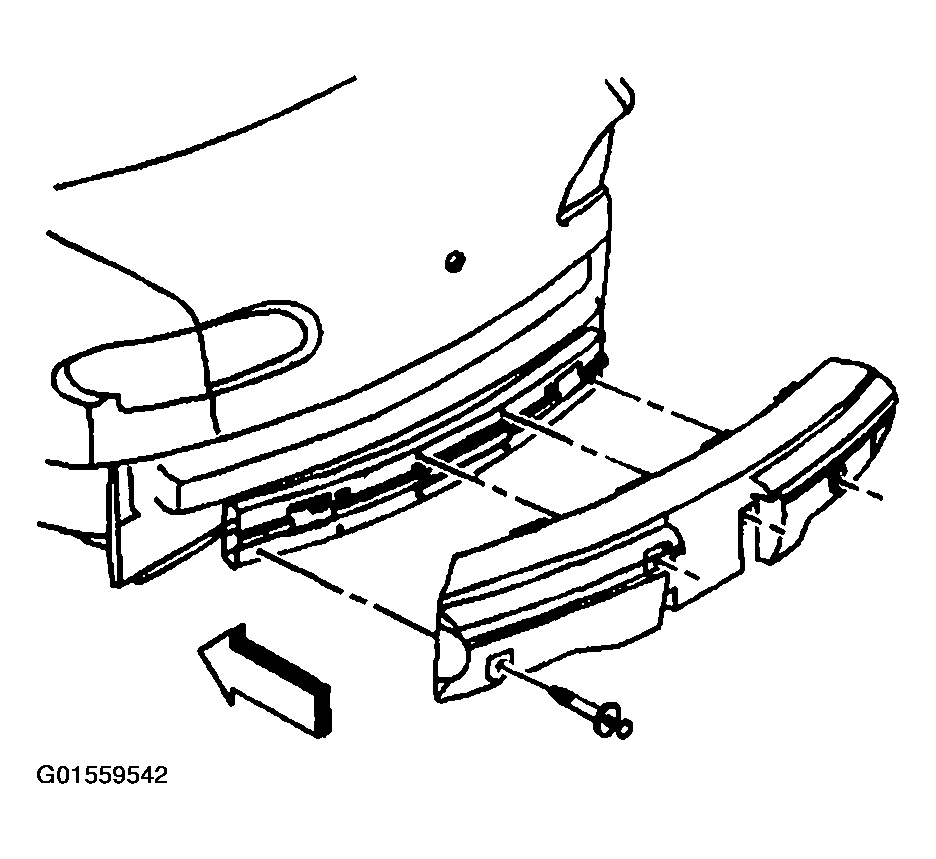

    Fig 1: Installing Push-In Retainers To Rear Bumper Energy Absorber
    G01559542Courtesy of GENERAL MOTORS CORP.
