Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the energy absorber into the front fascia.
  2. Install the fasteners that attach the energy absorber to the fascia.

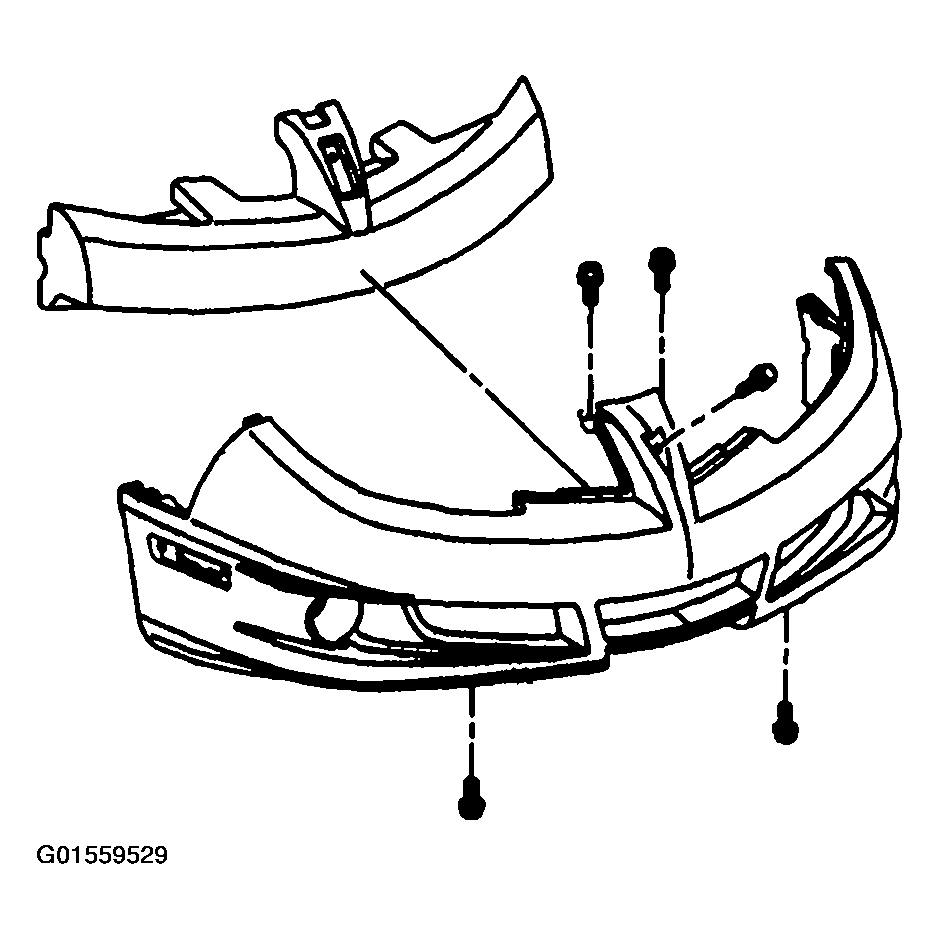

    Fig 1: Installing Fasteners Attaching Energy Absorber To Fascia
    G01559529Courtesy of GENERAL MOTORS CORP.
  3. Install the Pontiac emblem to the center of the front fascia. Refer to EMBLEM REPLACEMENT - FRONT BUMPER FASCIA .
  4. Install the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)  .
    Fig 2: Installing Pontiac Emblem To Center Of Front Fascia
    G01559530Courtesy of GENERAL MOTORS CORP.
