Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)  .
  2. Remove the fasteners that attach the energy absorber to the fascia.
  3. Remove the energy absorber from the front fascia.

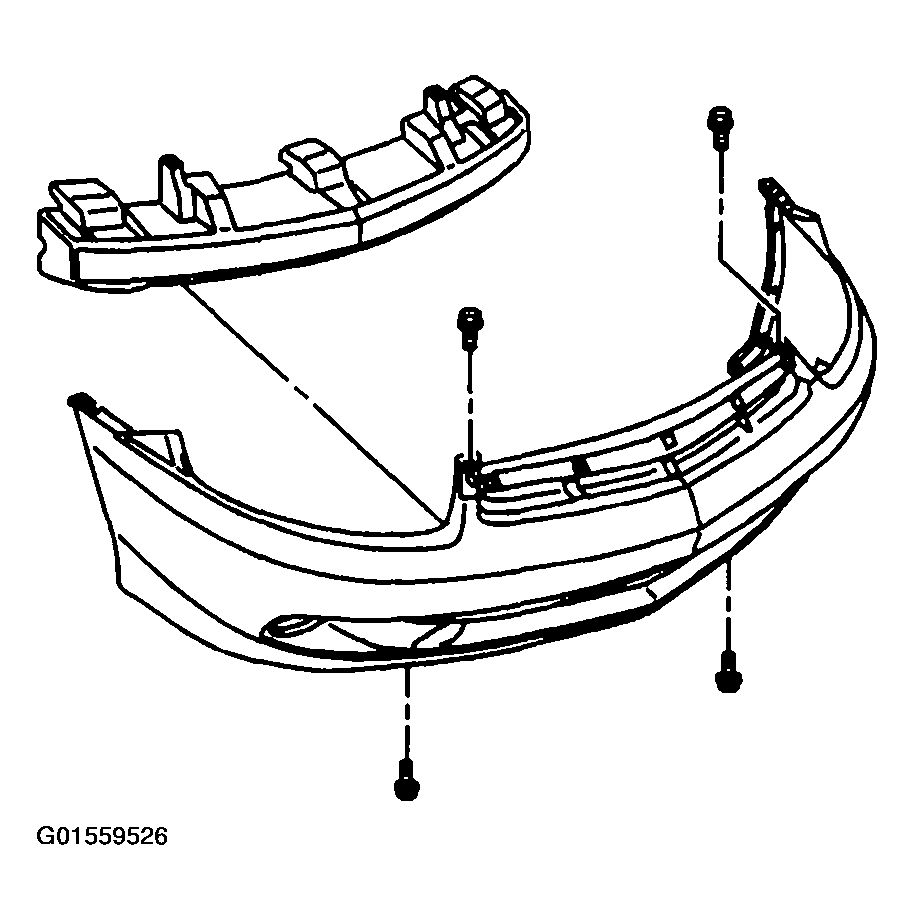

    Fig 1: Removing Fasteners Attaching Energy Absorber To Fascia
    G01559526Courtesy of GENERAL MOTORS CORP.
