Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the energy absorber into the front fascia.
  2. Install the fasteners that attach the energy absorber to the fascia.
  3. Install the front fascia. Refer to FASCIA REPLACEMENT - FRONT BUMPER (CHEVROLET)  or FASCIA REPLACEMENT - FRONT BUMPER (PONTIAC)  .

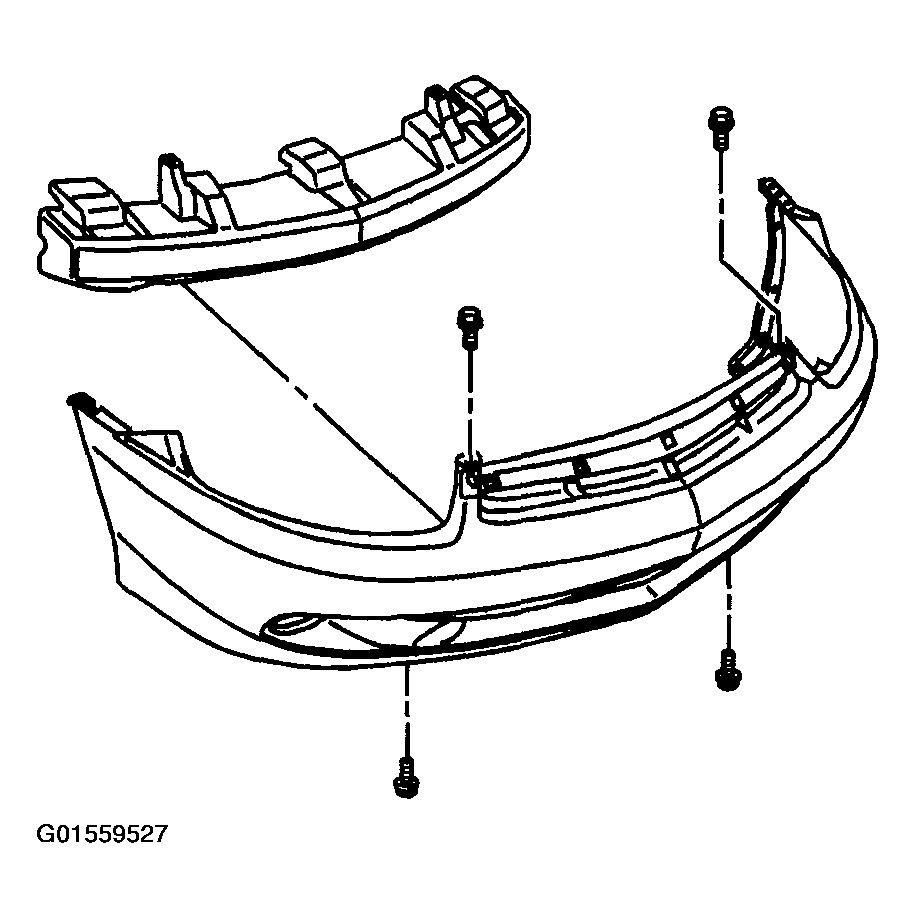

    Fig 1: Installing Fasteners Attaching Energy Absorber To Fascia
    G01559527Courtesy of GENERAL MOTORS CORP.
