Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the rocker panel molding screws.
  3. Use the J 38778  to release the rocker panel retainers.
  4. Remove the rocker panel molding from the rocker.

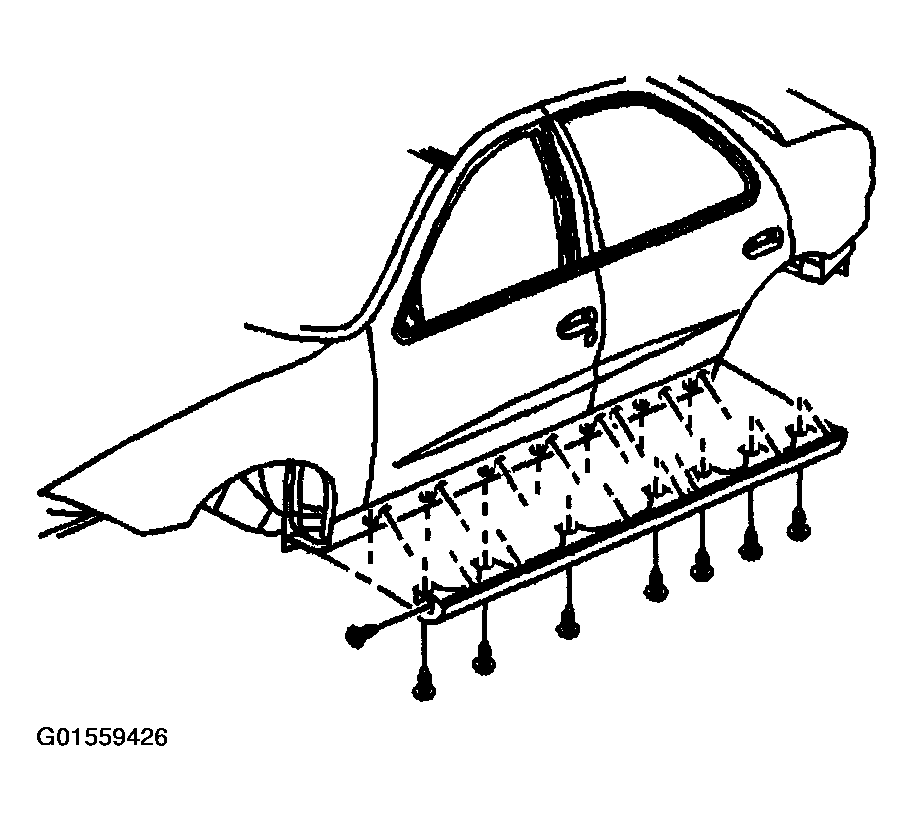

    Fig 1: Removing Rocker Panel Molding Screws
    G01559426Courtesy of GENERAL MOTORS CORP.
