Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rocker panel molding to the rocker.
  2. Press the rocker panel molding to the rocker until the retainers are fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

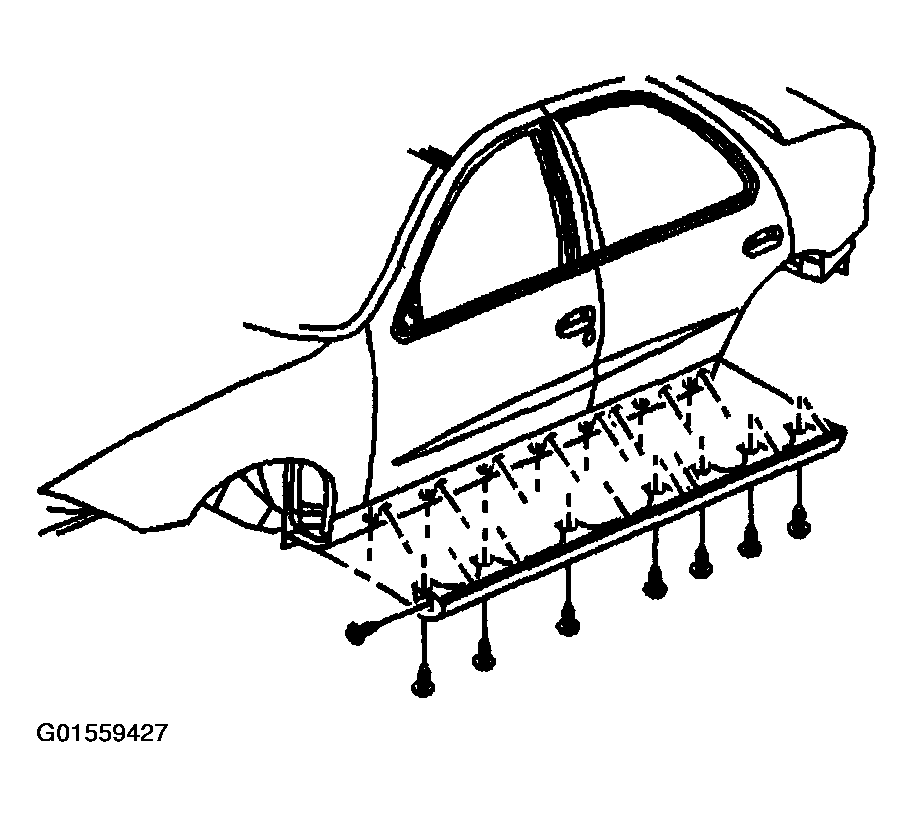

    Fig 1: Installing Rocker Panel Molding Screws
    G01559427Courtesy of GENERAL MOTORS CORP.
  3. Install the rocker panel molding screws.

    Tighten

    Tighten the rocker panel molding screws to 2 N.m (18 lb in).

  4. Lower the vehicle.
