Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. When replacing a body side molding do the following:
    1. Use tape to protect the mounting surface during removal.
    2. Use tape for alignment marks for installation of the body side molding.

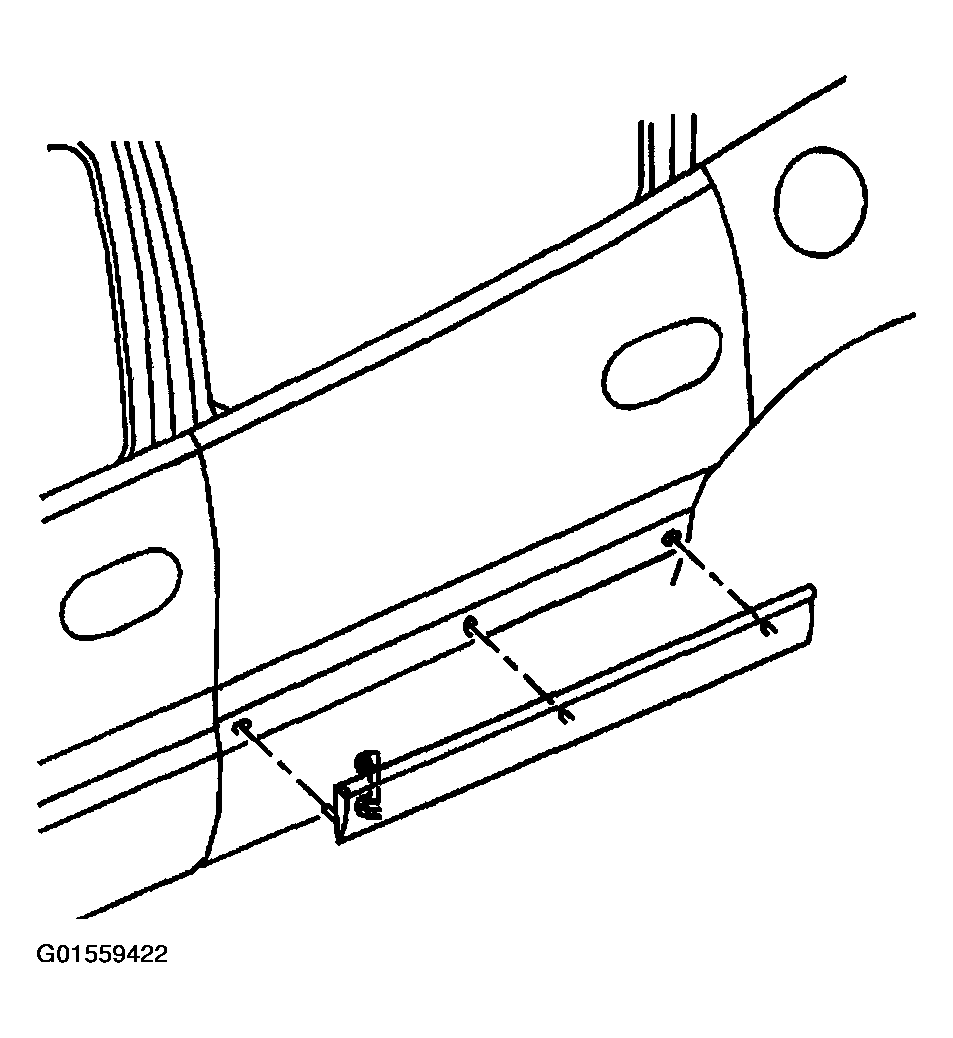

      Fig 1: Removing Body Side Molding - Rear Door
      G01559422Courtesy of GENERAL MOTORS CORP.
  2. To remove a body side molding, heat the body side molding using a J 25070  .
  3. Hold the J 25070  approximately 152 mm (6 in) from the surface.
  4. Apply heat using a circular motion for about 30 seconds.
