Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the screws that retain the grille assembly to the park/turn lamp.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

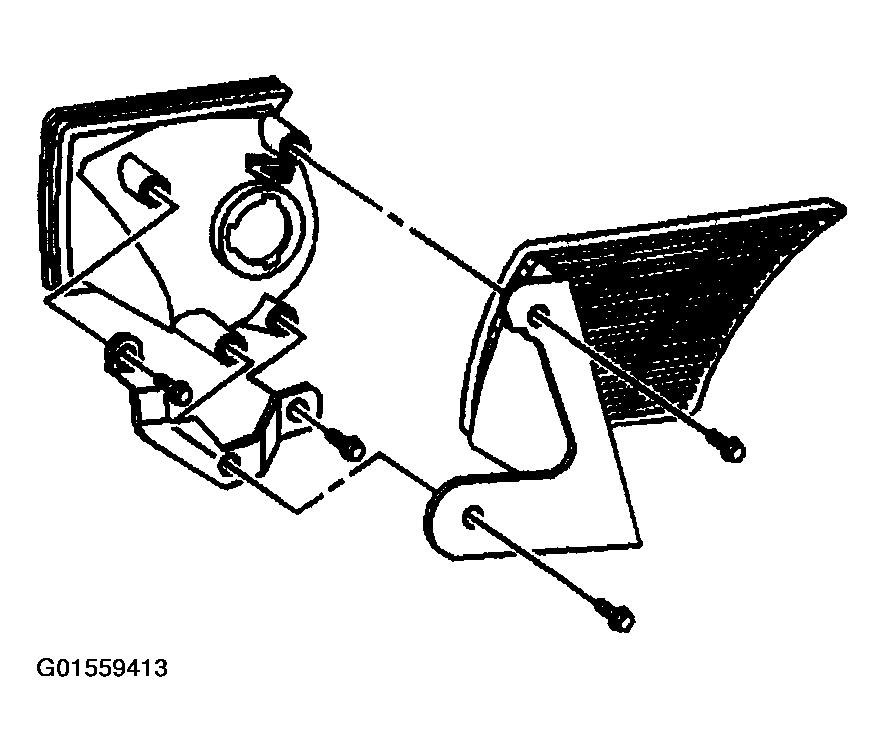

    Fig 1: Installing Screws Retaining Grille Assembly To Park/Turn Lamp
    G01559413Courtesy of GENERAL MOTORS CORP.
  2. Install the push retainer that secures the grill to the lamp assembly.

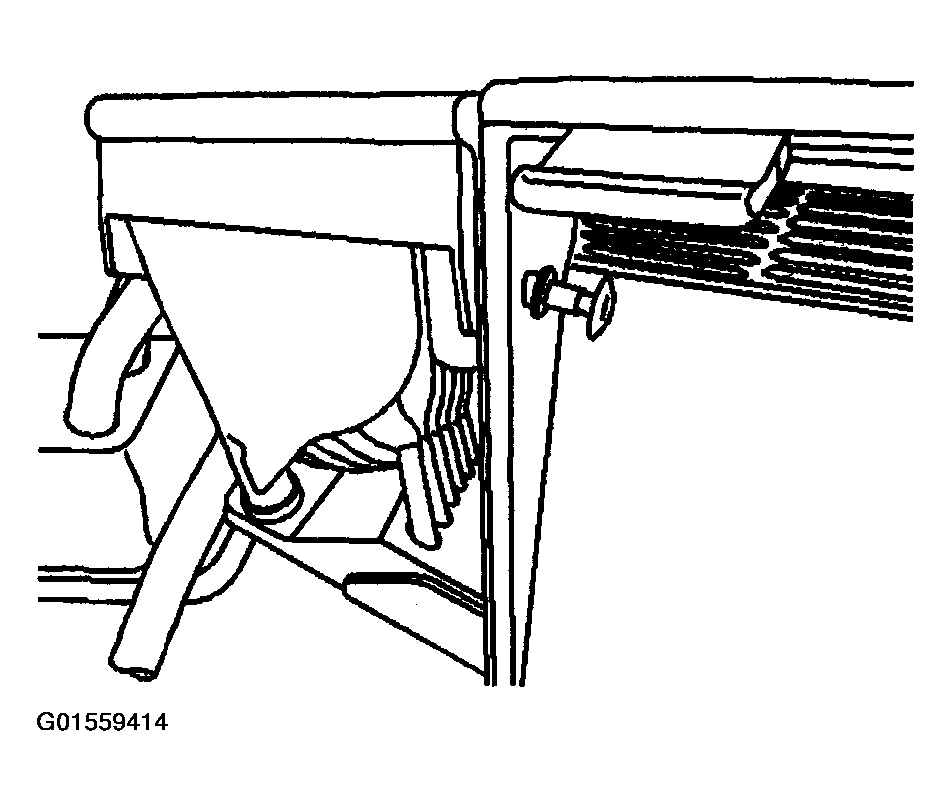

    Fig 2: Installing Push Retainer Securing Grill To Lamp Assembly
    G01559414Courtesy of GENERAL MOTORS CORP.
  3. Position the lamp assembly with the grille to the vehicle.
  4. Install the grill screw to the grill.

    Tighten

    Tighten the screw to 2 N.m (18 lb in).

  5. Install the bolt that retains the lamp bracket to the upper tie bar.

    Tighten

    Tighten the bolt to 10 N.m (7 lb ft).

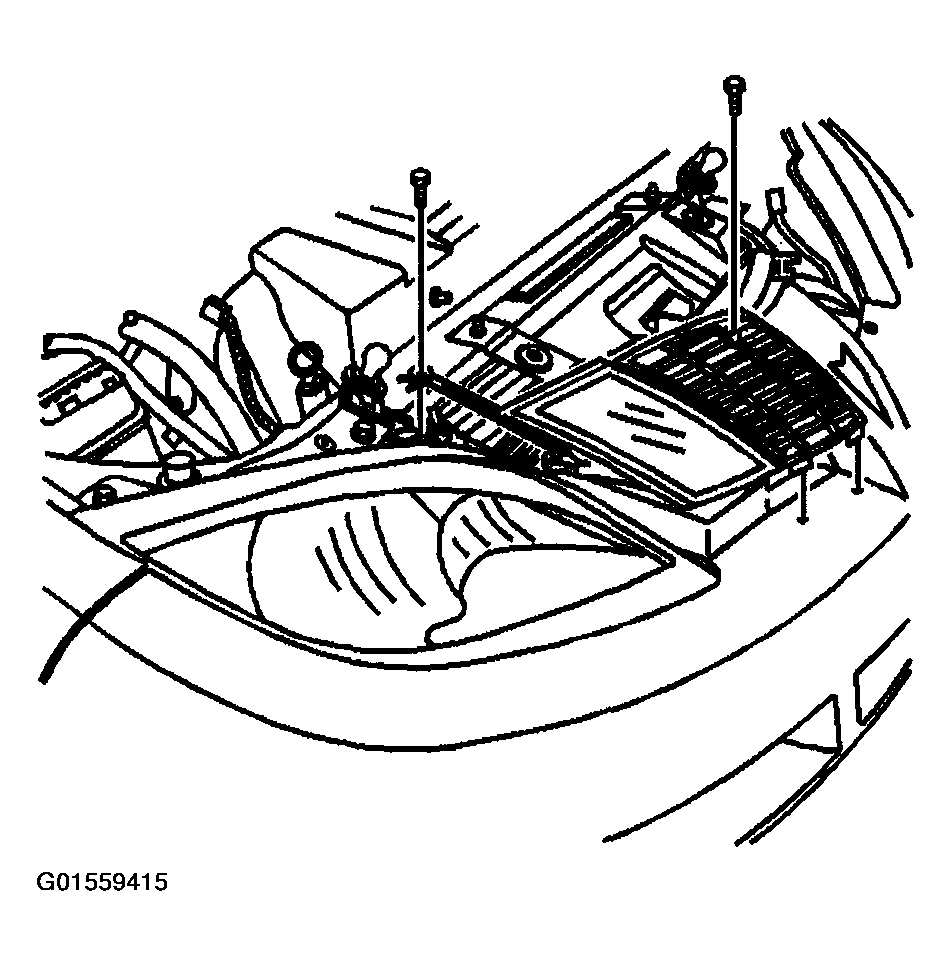

    Fig 3: Installing Grill Screw To Grill
    G01559415Courtesy of GENERAL MOTORS CORP.
  6. Install the park/turn signal bulb by rotating the socket clockwise until the locking tab locks.
  7. Install the hood close out filler panel. Refer to HOOD CLOSE OUT FILLER REPLACEMENT .
  8. Close the hood.

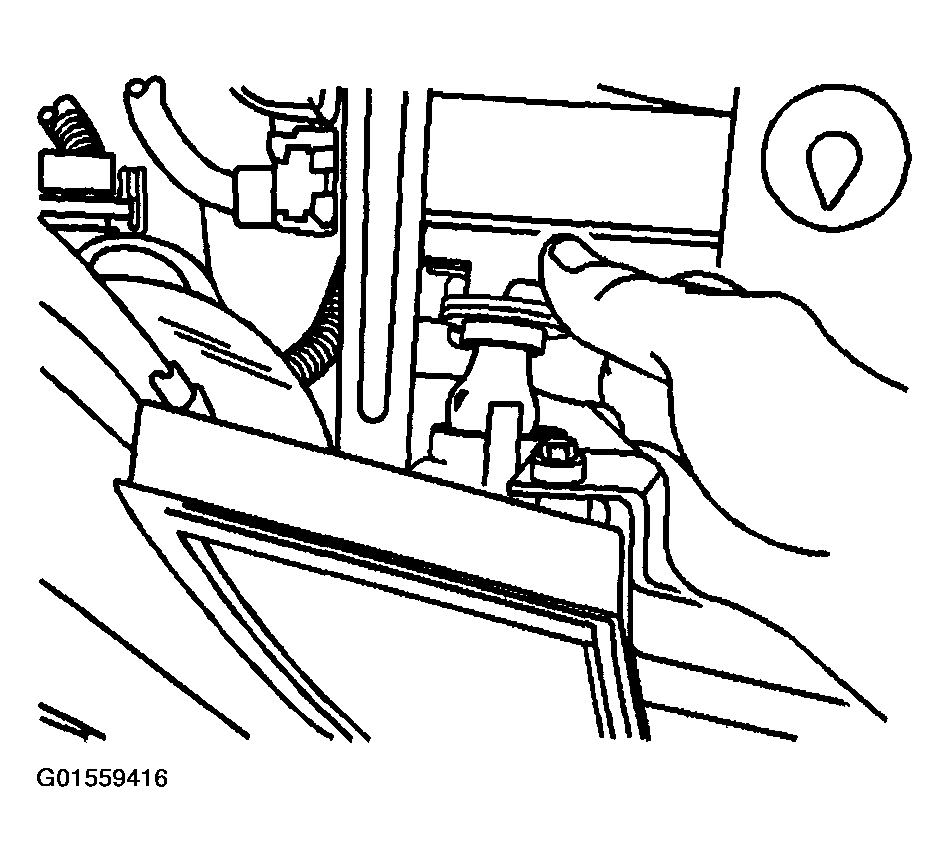

    Fig 4: Installing Park/Turn Signal Bulb By Rotating Socket Clockwise
    G01559416Courtesy of GENERAL MOTORS CORP.
