Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Apply the emblem/nameplate in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.
- Clean the area where the emblem/nameplate will be installed.
Use a lint free cloth and Varnish Makers and Painters (VMP) naphtha or a, 50/50 mixture, by volume of isopropyl alcohol and water to clean the area.
- Dry the area thoroughly.
- If the location of the emblem/nameplate has not been marked, apply tape.

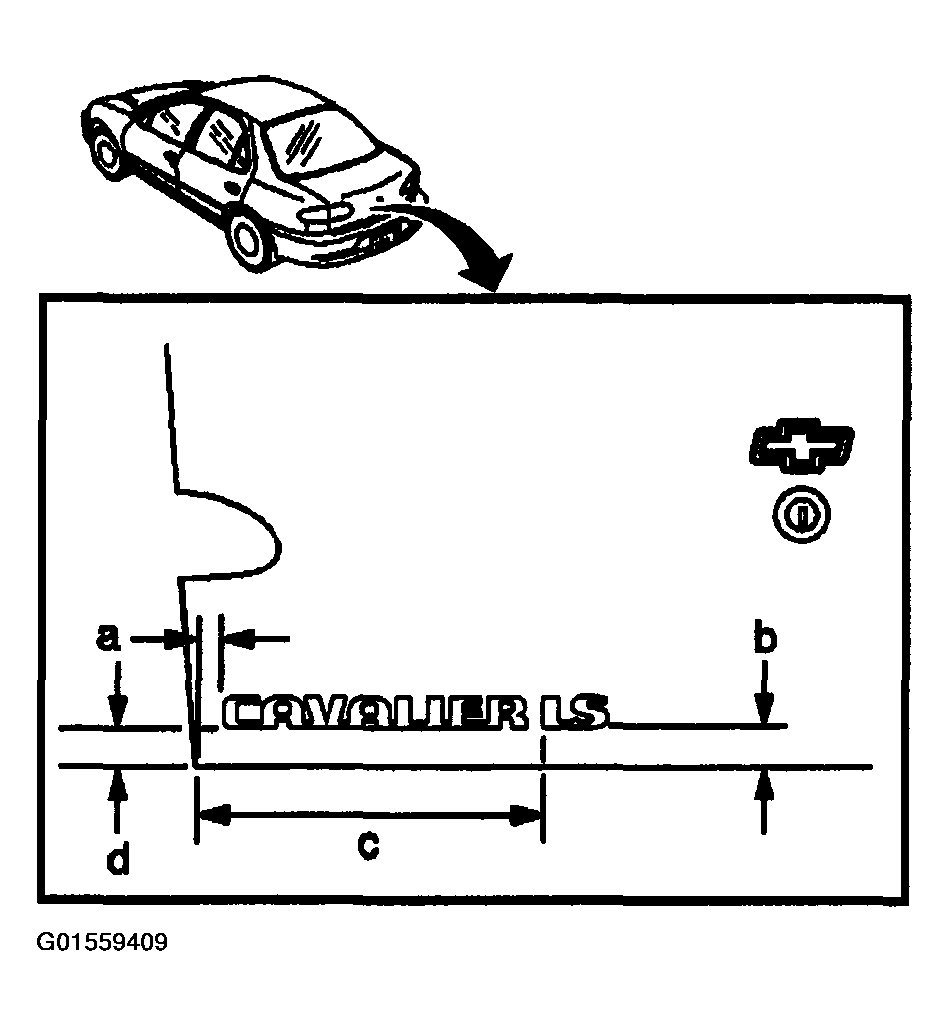

- Install the Cavalier LS emblem/nameplate to the following dimensions:
- Dimension (a) is 43 mm (1.688 in) from the left edge of the rear compartment lid to the nameplate.
- Dimension (b) is 45 mm (1.750 in) from the bottom edge of the rear compartment lid to the nameplate.
- Dimension (c) is 235 mm (9.250 in) from the left edge of the rear compartment lid to the LS nameplate.
- Dimension (d) is 45 mm (1.750 in) from the bottom edge of the rear compartment lid to the nameplate.
- Heat the mounting surface to approximately 27-41°C (80-105°F) using the J 25070 , if necessary.
- Ensure that the temperature of the emblem/nameplate is approximately 29-32°C (85-90°F).IMPORTANT: Do not touch the adhesive backing on the emblem/nameplate.
- Remove the protective liner from the back of the emblem/name plate.
- Position the emblem/nameplate to the location marks and press the emblem/nameplate to the mounting surface.
- Apply equal pressure along the emblem/nameplate to uniformly bond the item to the mounting surface.
- Remove the protective tape from the mounting surface.
