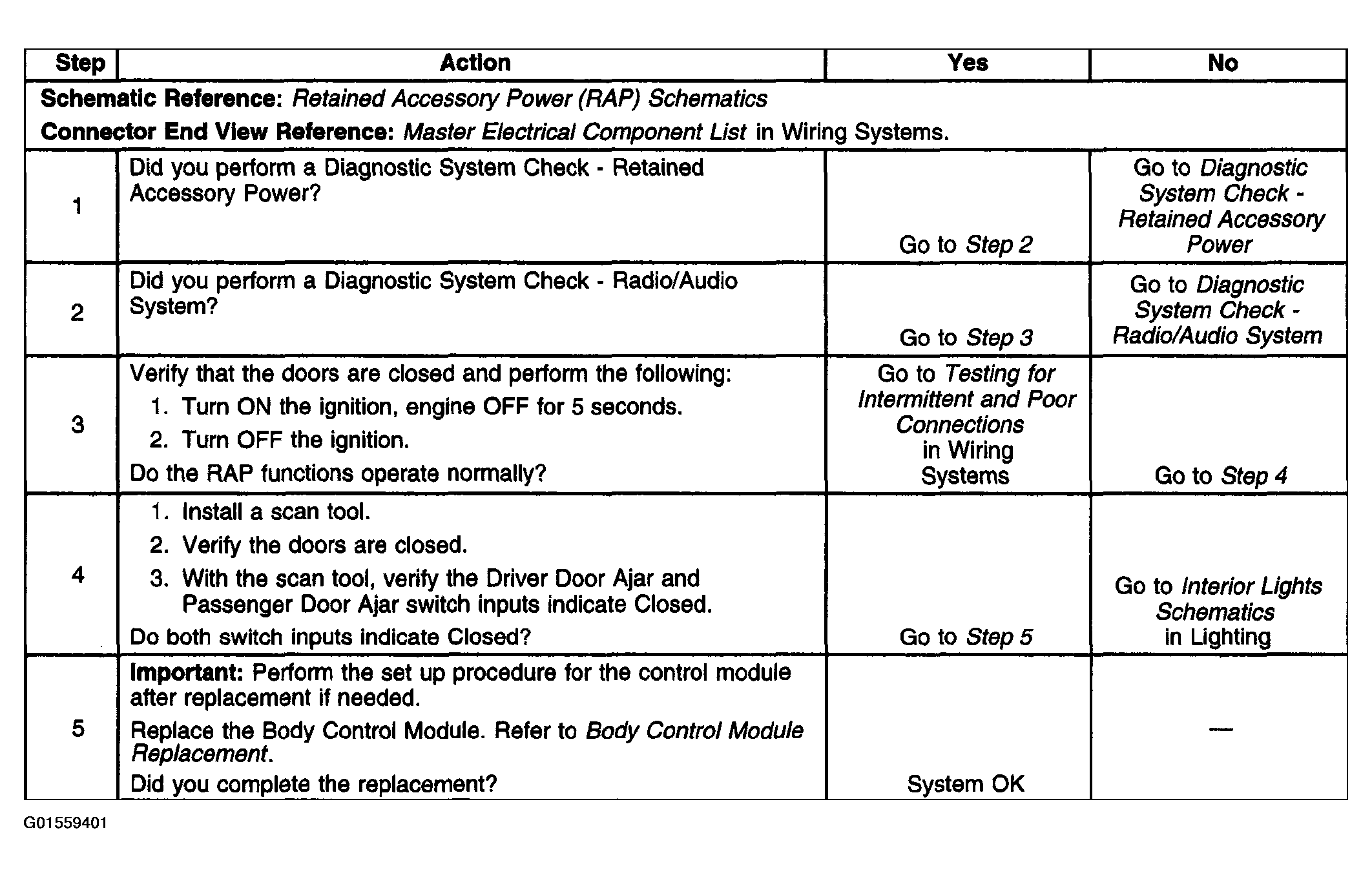

Diagnostic Aids
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
All Retained Accessory Power, RAP functions on this vehicle are controlled by the Body Control Module, BCM using Class 2 serial data. If Class 2 communication between the Radio, BCM and Data Link Connector is functioning properly, and the door ajar switches are working properly, replace the BCM.
