Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table:

  1. Tests for a magnetic field near the ignition lock cylinder.

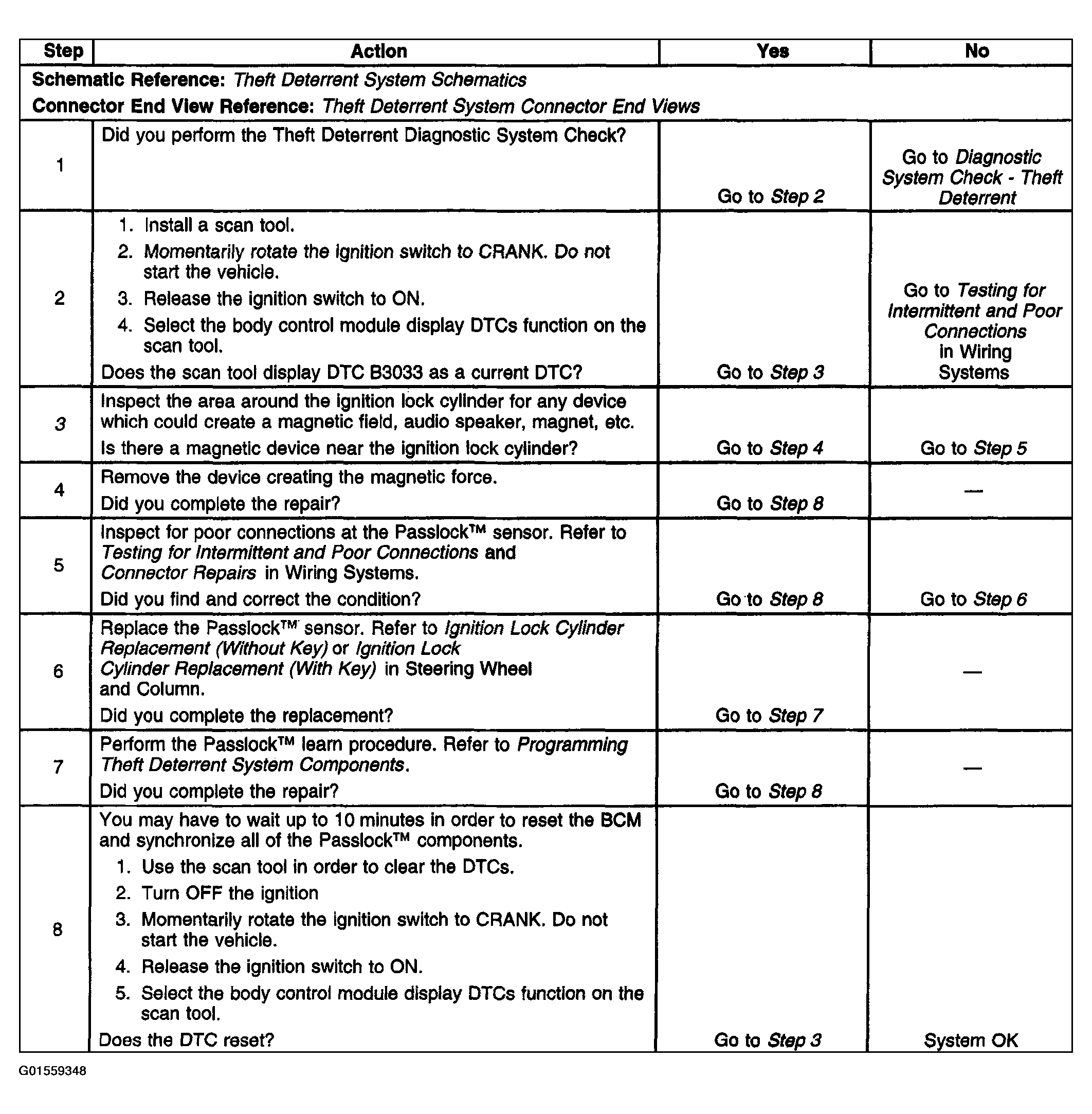

Fig 1: Diagnostic System Check - DTC B3033
G01559348Courtesy of GENERAL MOTORS CORP.
