Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table:

  1. Tests for the proper operation of the circuit in the normal voltage range.

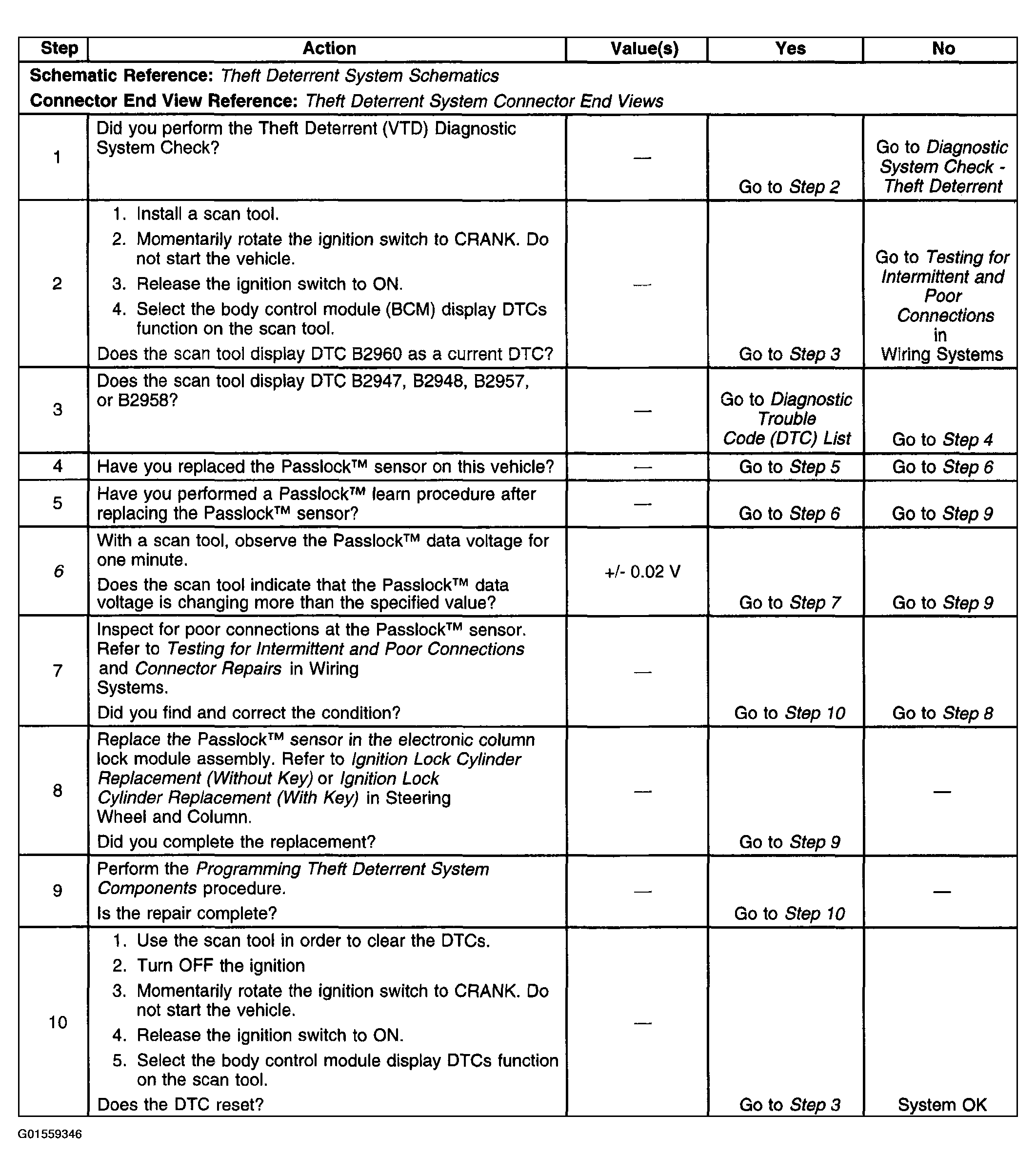

Fig 1: Diagnostic System Check - DTC B2960
G01559346Courtesy of GENERAL MOTORS CORP.
