Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. Verifies that DTC B2947 is a current DTC.
  2. Tests for a short to ground in the Passlock™ sensor or the pigtail harness.

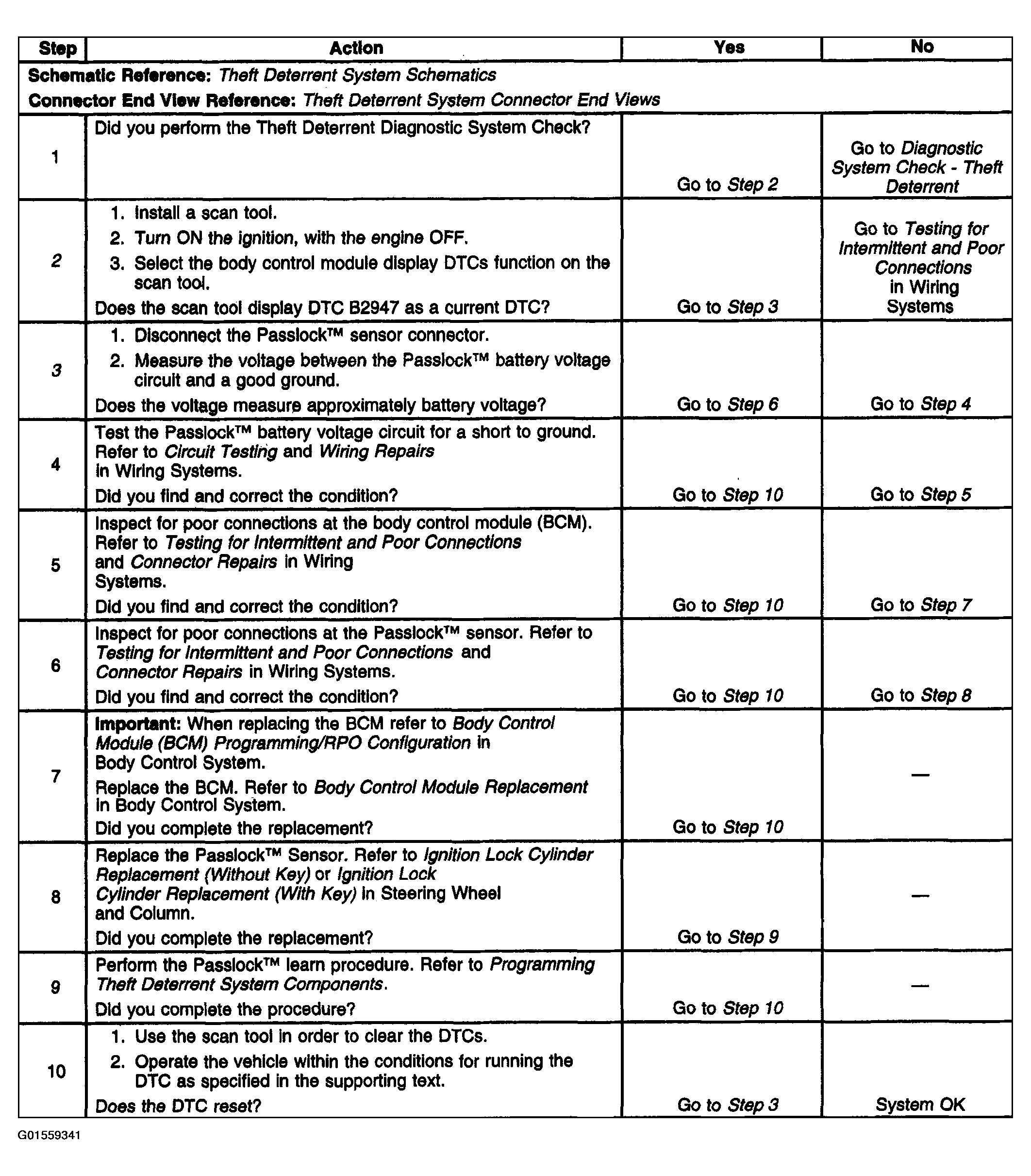

Fig 1: Diagnostic System Check - DTC B2947
G01559341Courtesy of GENERAL MOTORS CORP.
