Theft Deterrent System Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

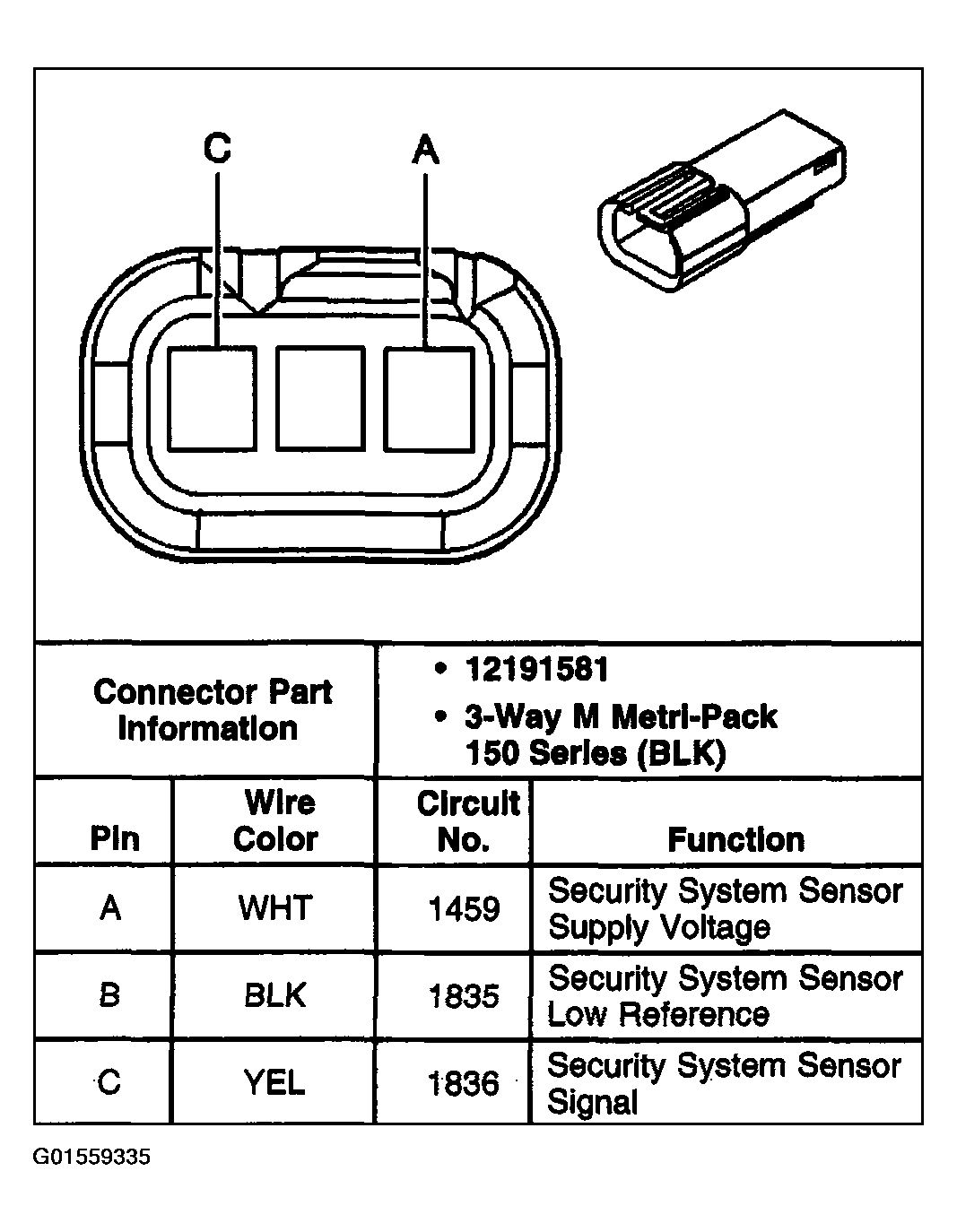

Fig 1: Identifying Passlock Sensor Connector End View
G01559335Courtesy of GENERAL MOTORS CORP.
