Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.
  2. Disconnect the horn electrical connector (2).
  3. Remove the horn bracket bolt (3).
  4. Remove the horn (1) from the front frame rail.

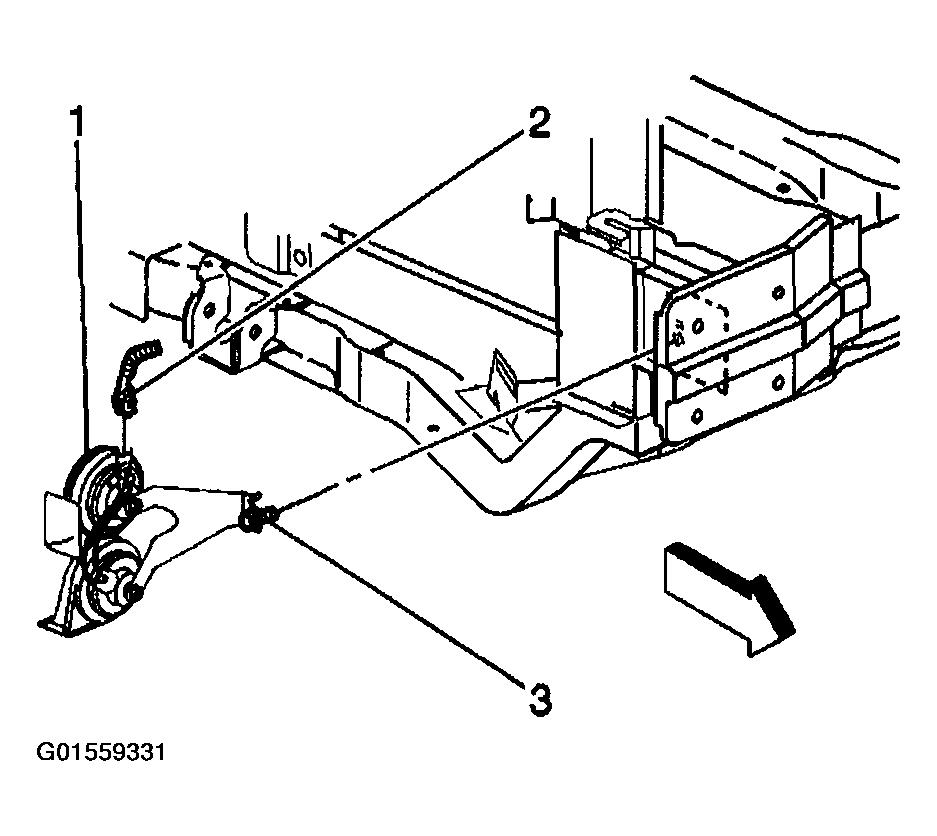

    Fig 1: Removing Horn From Front Frame Rail
    G01559331Courtesy of GENERAL MOTORS CORP.
