Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the horn (1) into the slot in the front frame rail.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the horn bracket bolt (3).

    Tighten

    Tighten the bolt (3) to 10 N.m (89 lb in).

  3. Connect the horn electrical connector (2).
  4. Install the right front fender liner. Refer to FRONT FENDER LINER REPLACEMENT in Body Front End.

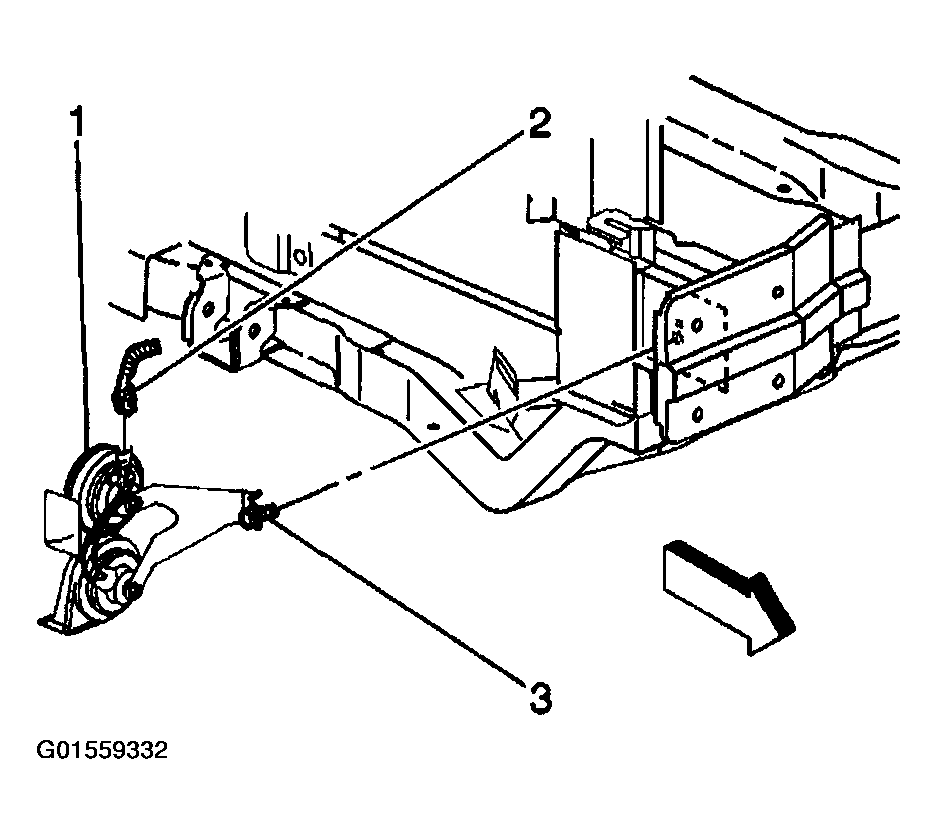

    Fig 1: Installing Horn Into Front Frame Rail
    G01559332Courtesy of GENERAL MOTORS CORP.
