Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) compartment door in order to access the screws (2).
  2. Remove the screws (2) from the I/P accessory trim plate (3).
  3. Pull the I/P trim plate (3) rearward to disengage the retainers.
  4. Remove the I/P trim plate (3) from the I/P carrier (1).

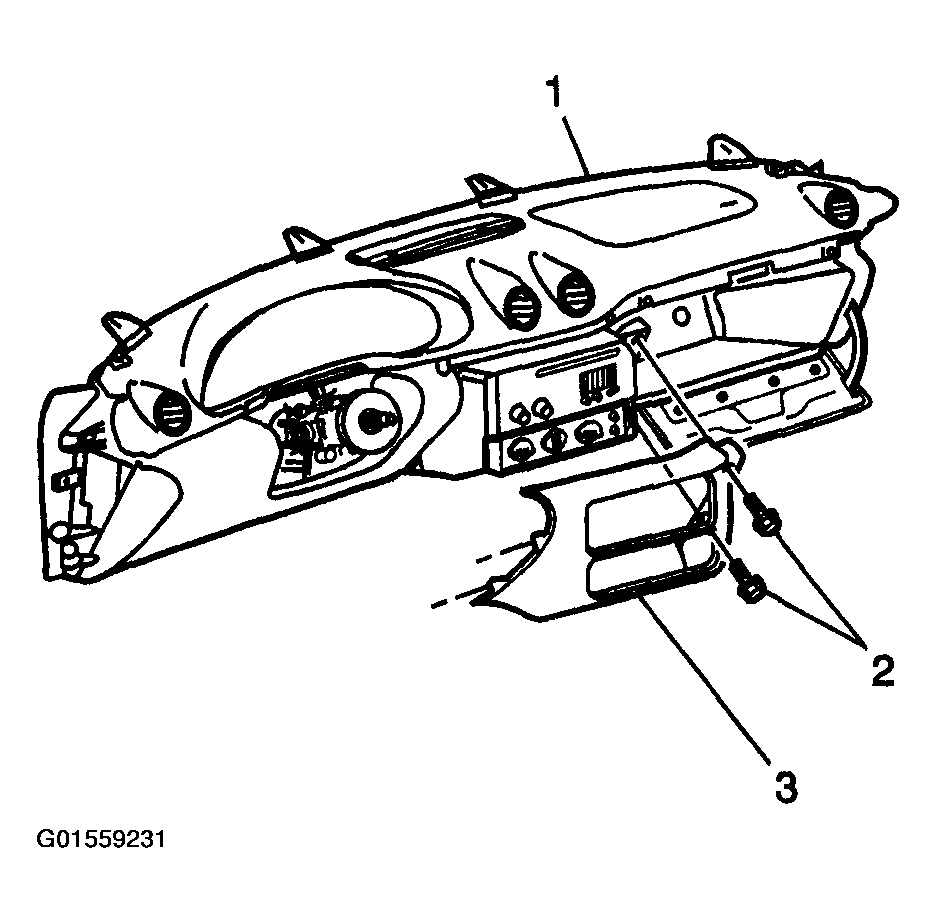

    Fig 1: Removing I/P Trim Plate From I/P Carrier (Pontiac)
    G01559231Courtesy of GENERAL MOTORS CORP.
