Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the instrument panel (I/P) upper trim pad (4), using a small flat-bladed tool, in order to release the tabs from the retainers.
  2. Remove the I/P upper trim pad (4) from the I/P.

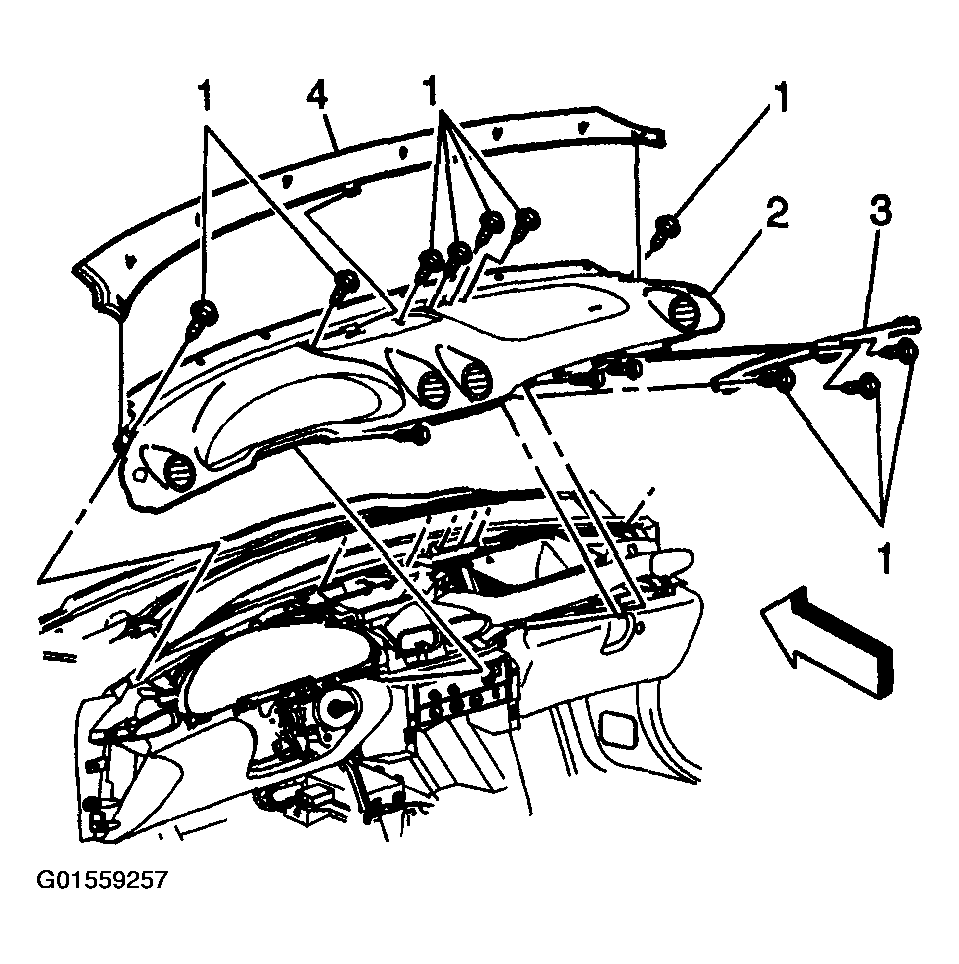

    Fig 1: Removing I/P Upper Trim Pad From I/P (Pontiac)
    G01559257Courtesy of GENERAL MOTORS CORP.
