OnStar Schematics (Antennas, Data Link, Ground and Power)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

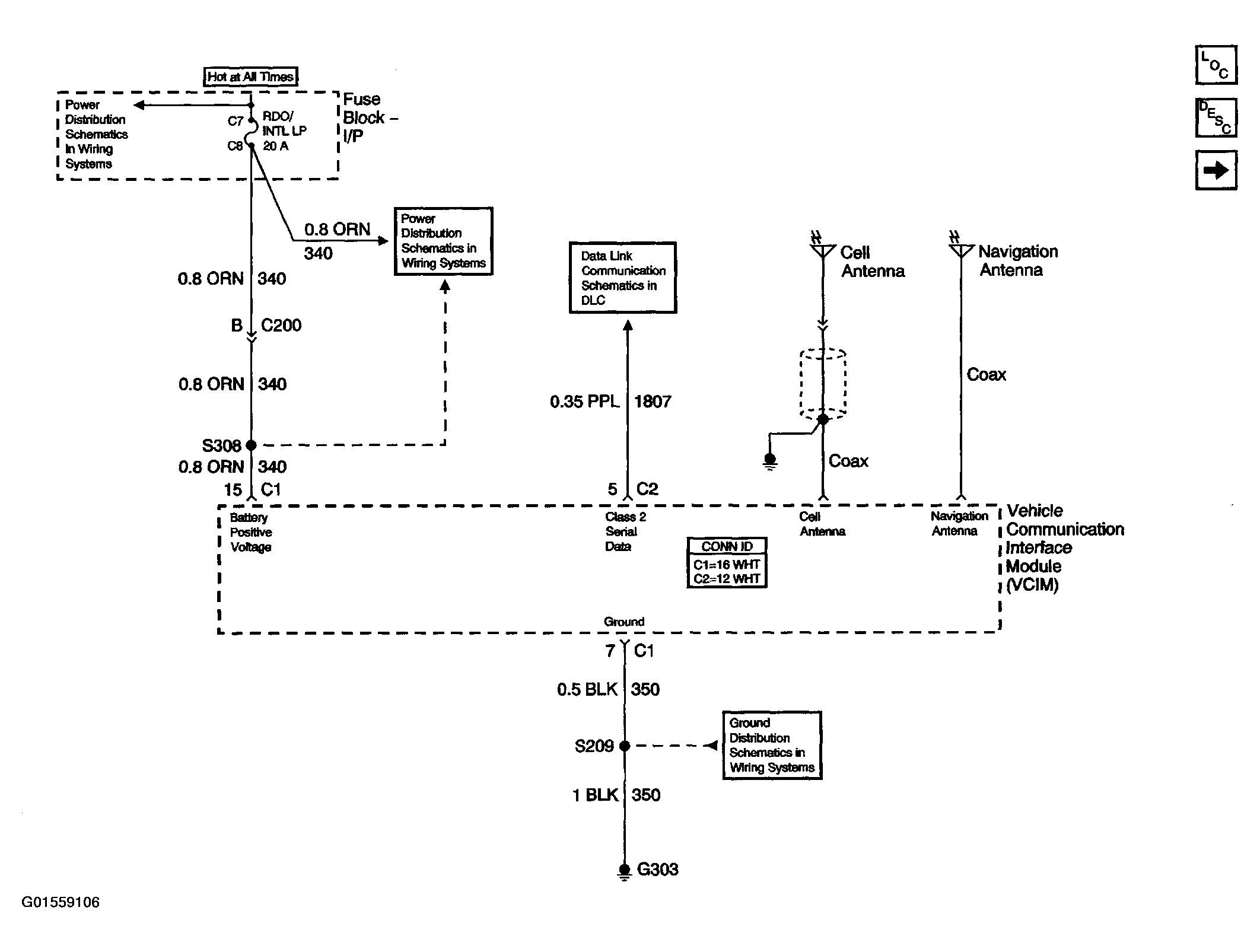

Fig 1: OnStar Schematics (Antennas, Data Link, Ground And Power)
G01559106Courtesy of GENERAL MOTORS CORP.

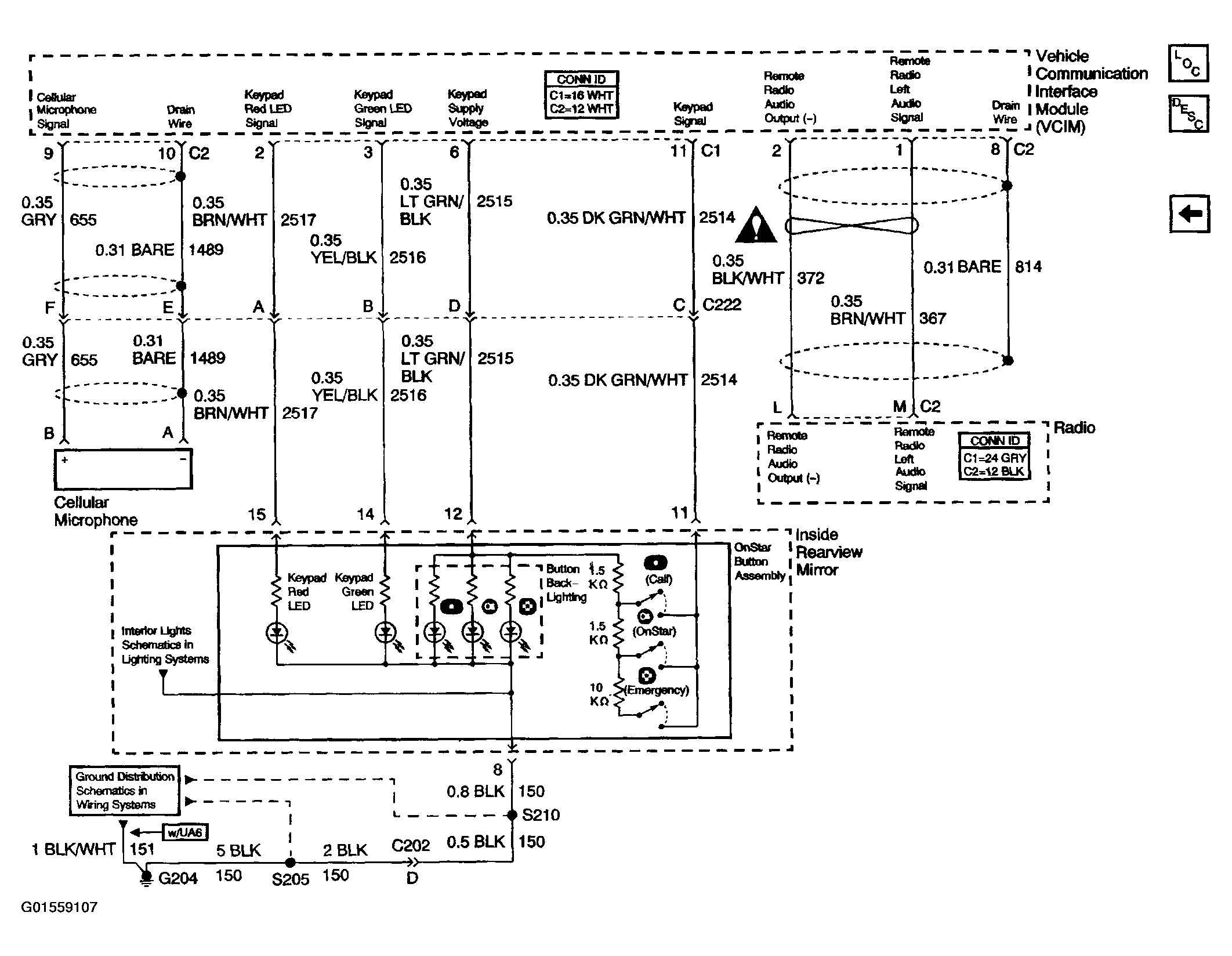

Fig 2: OnStar Schematics (Inside Rearview Mirror)
G01559107Courtesy of GENERAL MOTORS CORP.
