Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the headliner enough to gain access to the opening in the overhead compartment. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Disconnect the wire harness electrical connection (2) for the OnStar microphone (3).
  3. With a flat-bladed tool disengage the retaining tabs (4) on the microphone (3).

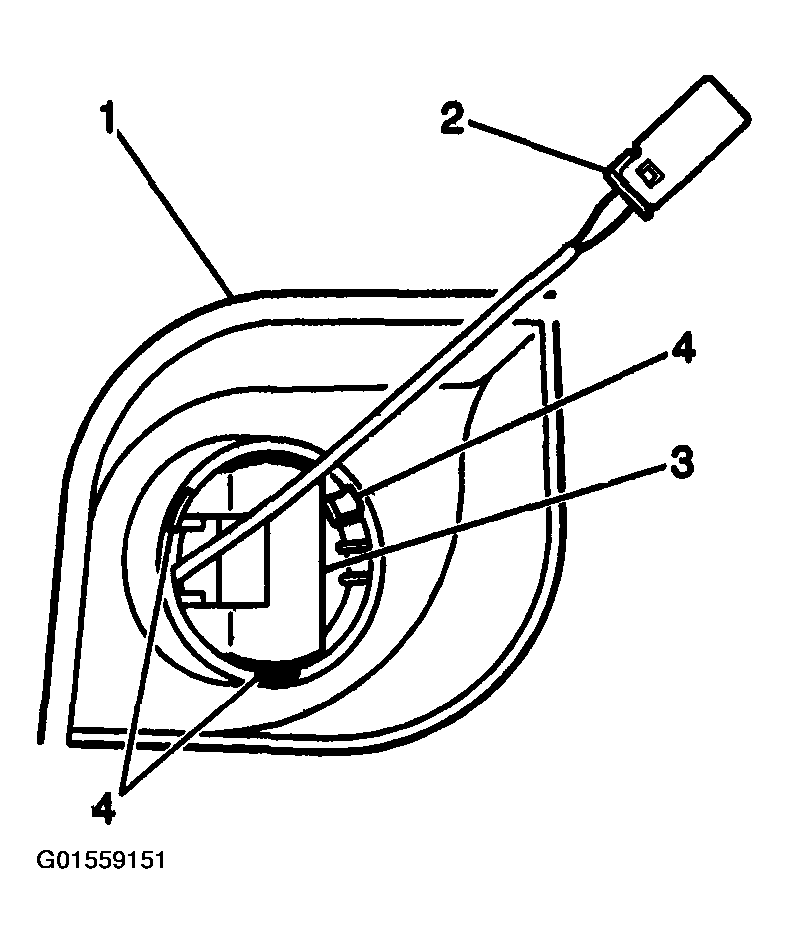

    Fig 1: Removing OnStar Microphone (Without Sunroof) (1 Of 2)
    G01559151Courtesy of GENERAL MOTORS CORP.
  4. Push the microphone (3) out of the overhead console (1).
  5. Route the electrical connector (2) through the opening in the overhead console (1).
    Fig 2: Removing OnStar Microphone (Without Sunroof) (2 Of 2)
    G01559152Courtesy of GENERAL MOTORS CORP.
