Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the rear window with an alcohol wipe.
  2. Dry the glass thoroughly using a lint free cloth.
    IMPORTANT:
    • The adhesion promoter must be used to assure bonding of the coupling.
    • Mask off or protect areas before applying the adhesion promoter.
  3. Apply glass adhesion promoter GM P/N 12378555 (Canadian P/N 88901239) to the rear window in the area where you will install the coupling. Follow the Glass Adhesion Promoter instructions on the product label.
    Fig 1: Cleaning Rear Window
    G01559139Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Align the inner and outer antenna couplings.
    • Do not touch the adhesive backing on the antenna coupling.
  4. Remove the protective film from the adhesive backing on the outer antenna coupling.
  5. Align the outer antenna coupling to the inner antenna coupling.
  6. Press firmly on all 4 corners and the center of the antenna outer coupling (5) in order to ensure proper adhesion to the rear window (4). Hold pressure on the outer coupling (5) for 10-30 seconds.
  7. Ensure that no gaps occur between the couplings (2, 5) and the back glass (4).

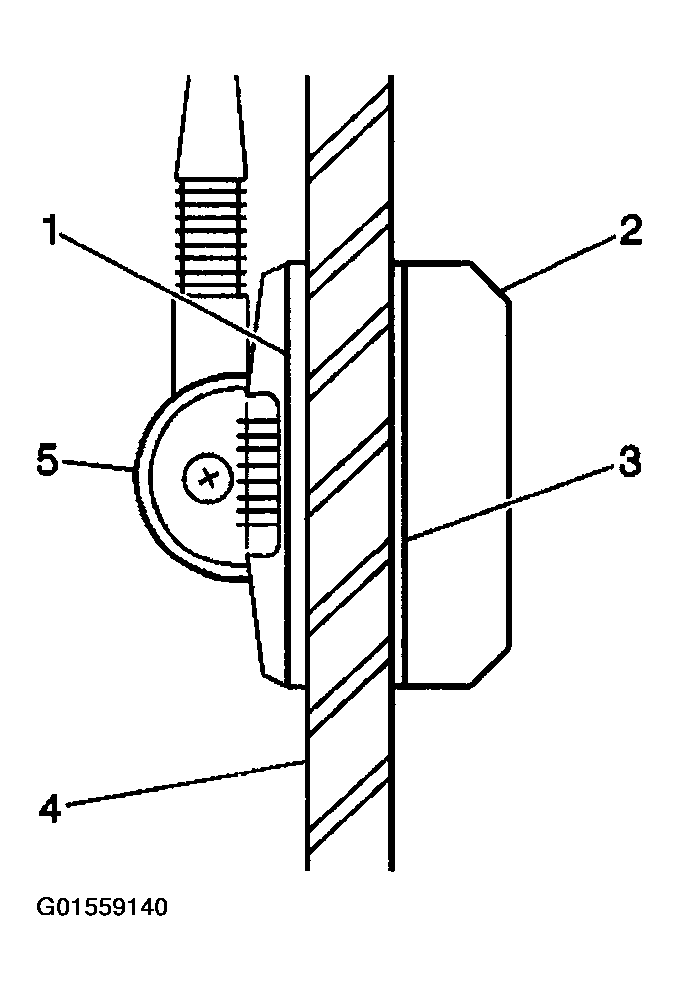

    Fig 2: Installing Antenna Outer Coupling
    G01559140Courtesy of GENERAL MOTORS CORP.
