Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the inside of the rear window with an alcohol wipe.
  2. Dry the glass thoroughly using a lint free cloth.
    IMPORTANT:
    • The adhesion promoter must be used to assure adequate bonding of the coupling.
    • Mark off or protect areas before applying the adhesion promoter.
  3. Apply glass adhesion promoter GM P/N 12378555 (Canadian P/N 88901239) to the rear window in the area where you will install the antenna coupling. Follow the Glass Adhesion Promoter instructions on the product label.
    IMPORTANT:
    • Align the inner and outer antenna couplings.
    • Do not touch the adhesive backing on the antenna coupling.
    • The RF connections for the inner antenna coupling should run parallel to the defogger gridline.
  4. Remove the protective film from the adhesive backing on the inner antenna coupling.
    Fig 1: Cleaning Inside Of Rear Window
    G01559136Courtesy of GENERAL MOTORS CORP.
  5. Align the inner antenna coupling to the outer antenna coupling, or to the locating marks on the rear window above the defogger grid line.
  6. Press firmly on all 4 corners and on the center of the antenna inner coupling (2) in order to ensure proper adhesion to the rear window (4). Hold pressure on the inner coupling (2) for 10-30 seconds.
  7. Ensure that no gaps occur between the couplings (2, 5) and the rear window (4).
  8. Connect the coaxial cable to the inner coupling (2).

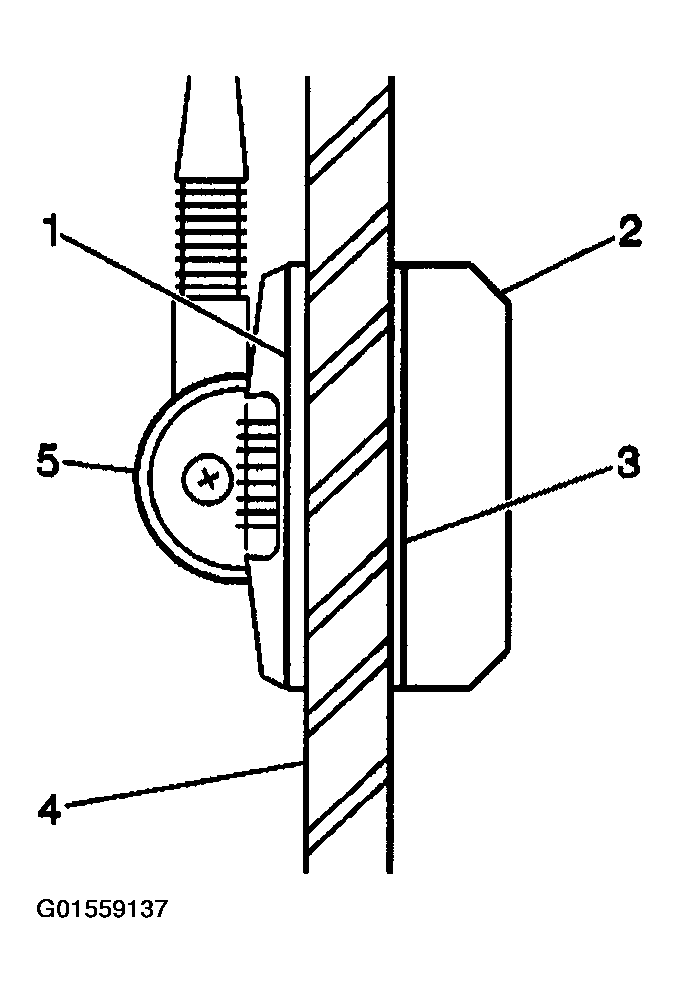

    Fig 2: Installing Antenna Inner Coupling
    G01559137Courtesy of GENERAL MOTORS CORP.
