Test Description

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. This step tests the at rest state of the Keypad Signal circuit.

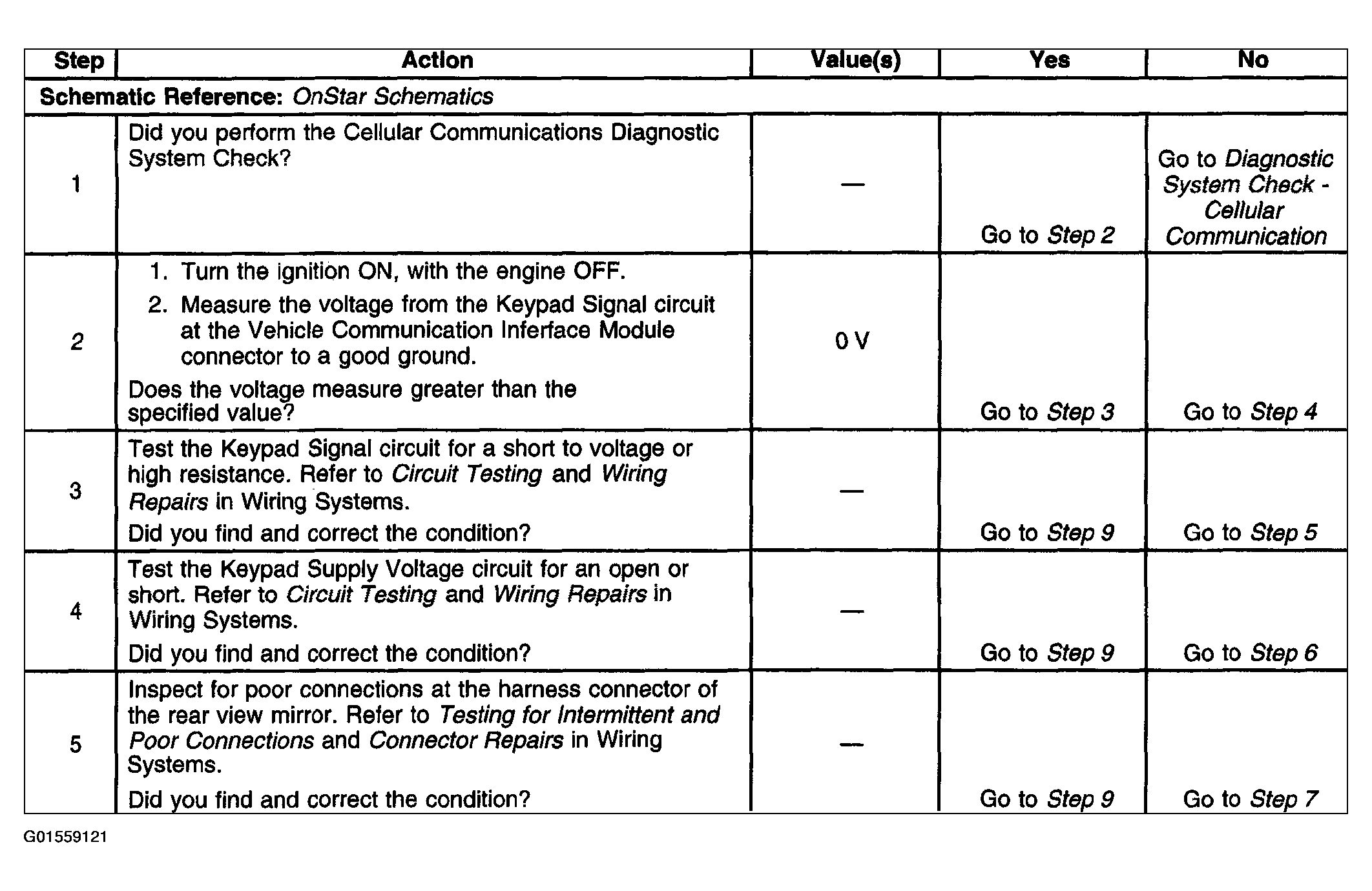

Fig 1: DTC B2482 - Diagnostic Table (1 Of 2)
G01559121Courtesy of GENERAL MOTORS CORP.

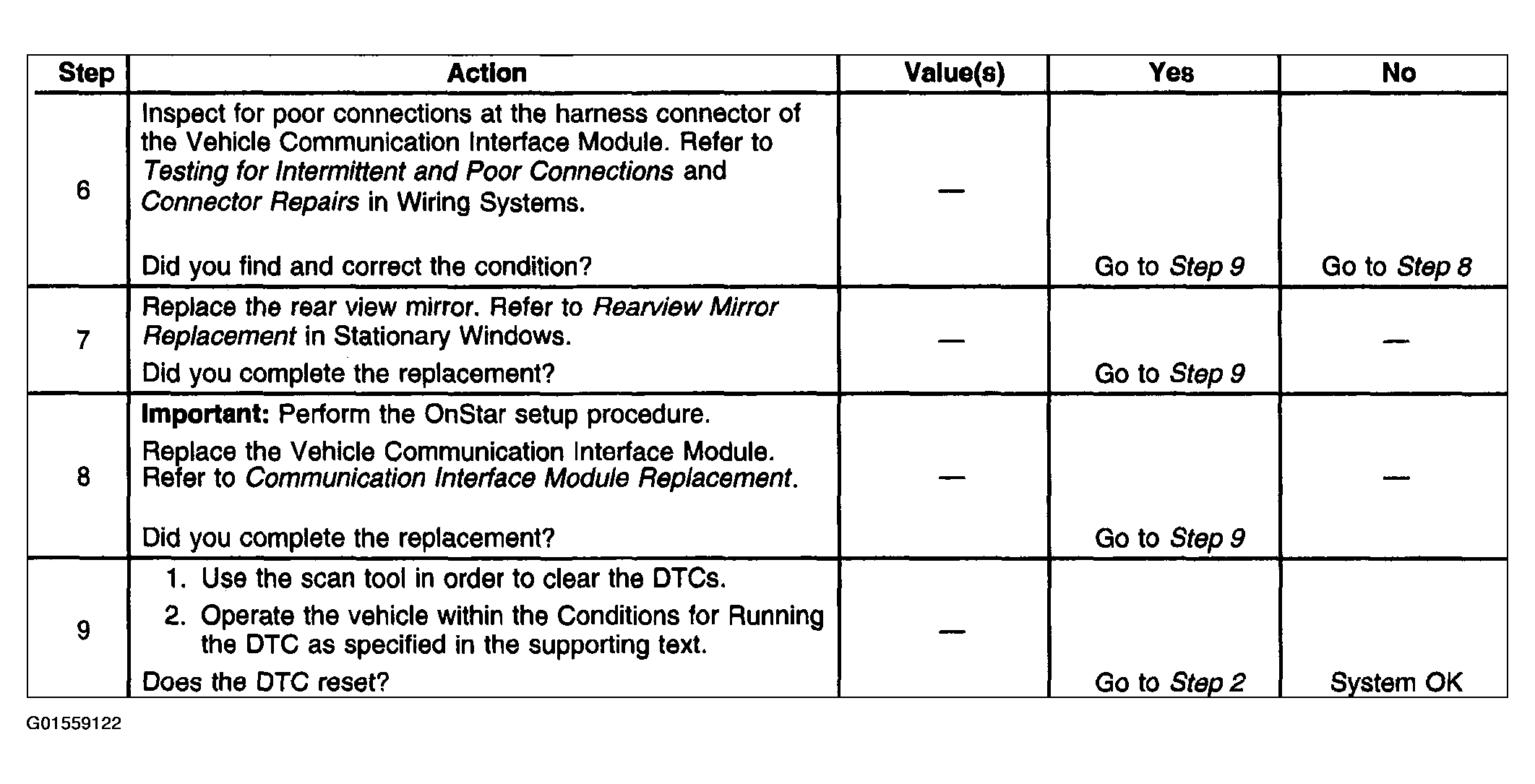

Fig 2: DTC B2482 - Diagnostic Table (2 Of 2)
G01559122Courtesy of GENERAL MOTORS CORP.
