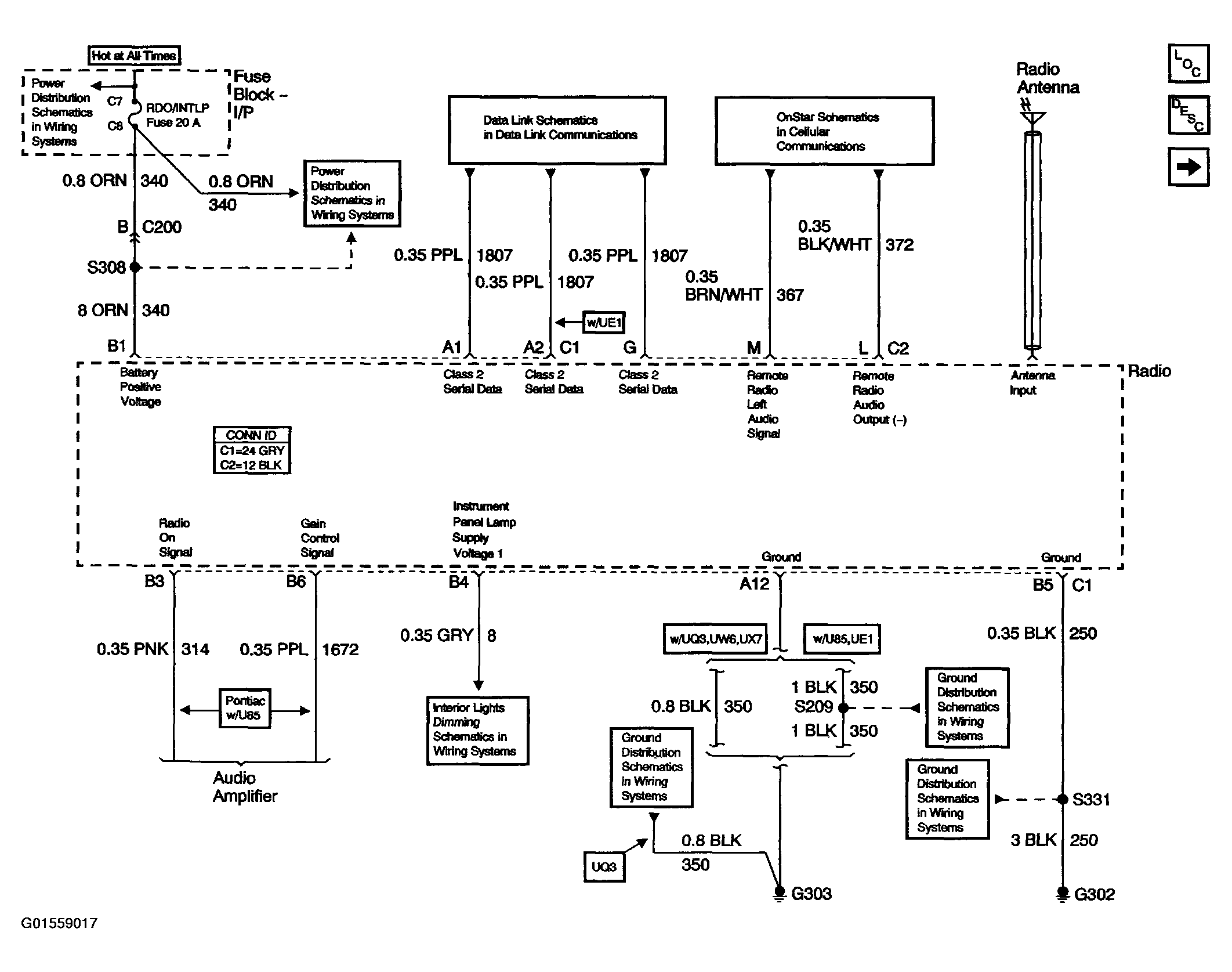

Fig 1: Radio/Audio System Schematic (Power, Ground And DLC)
Courtesy of GENERAL MOTORS CORP.

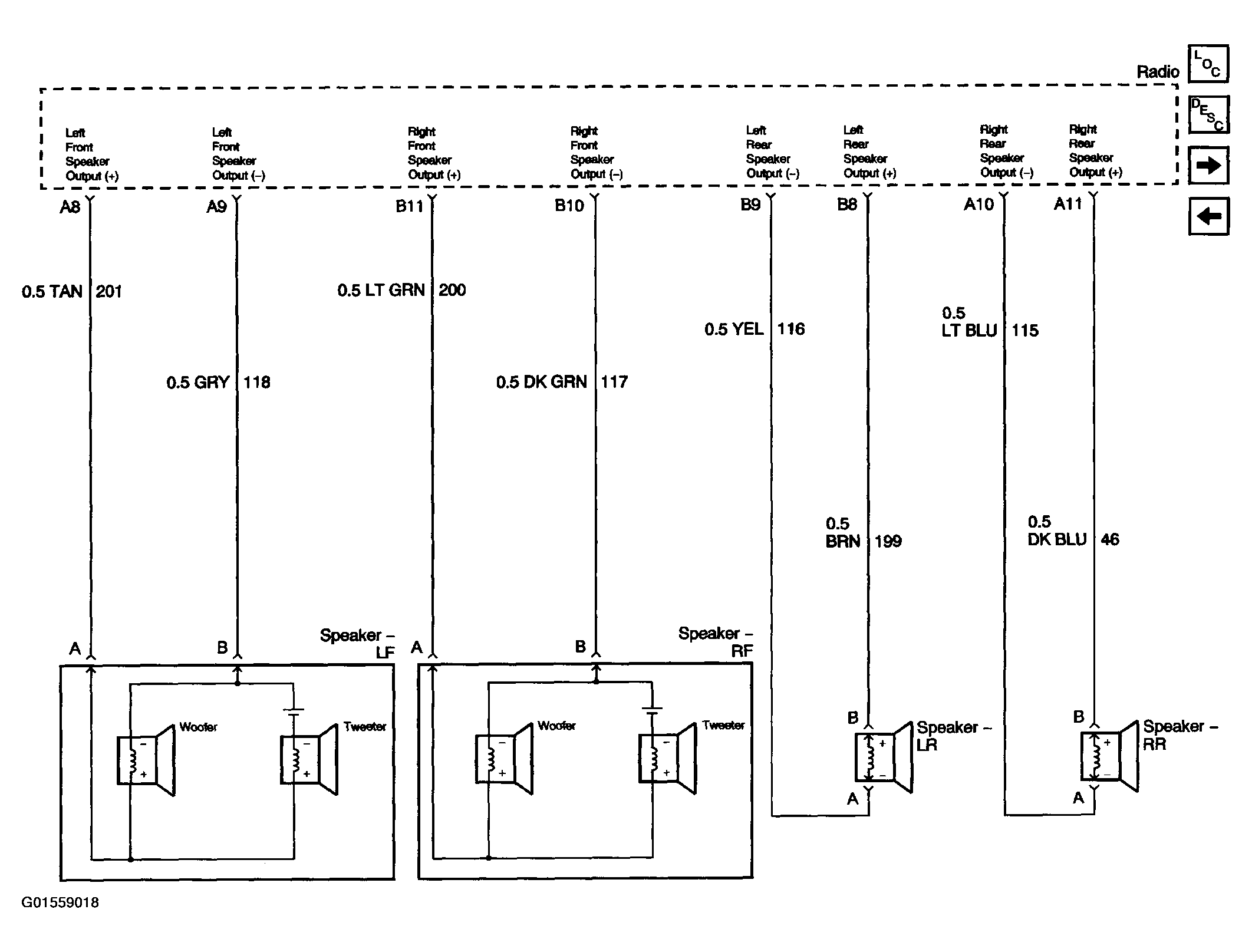

Fig 2: Radio/Audio System Schematic (U79, U7, UW6)
Courtesy of GENERAL MOTORS CORP.

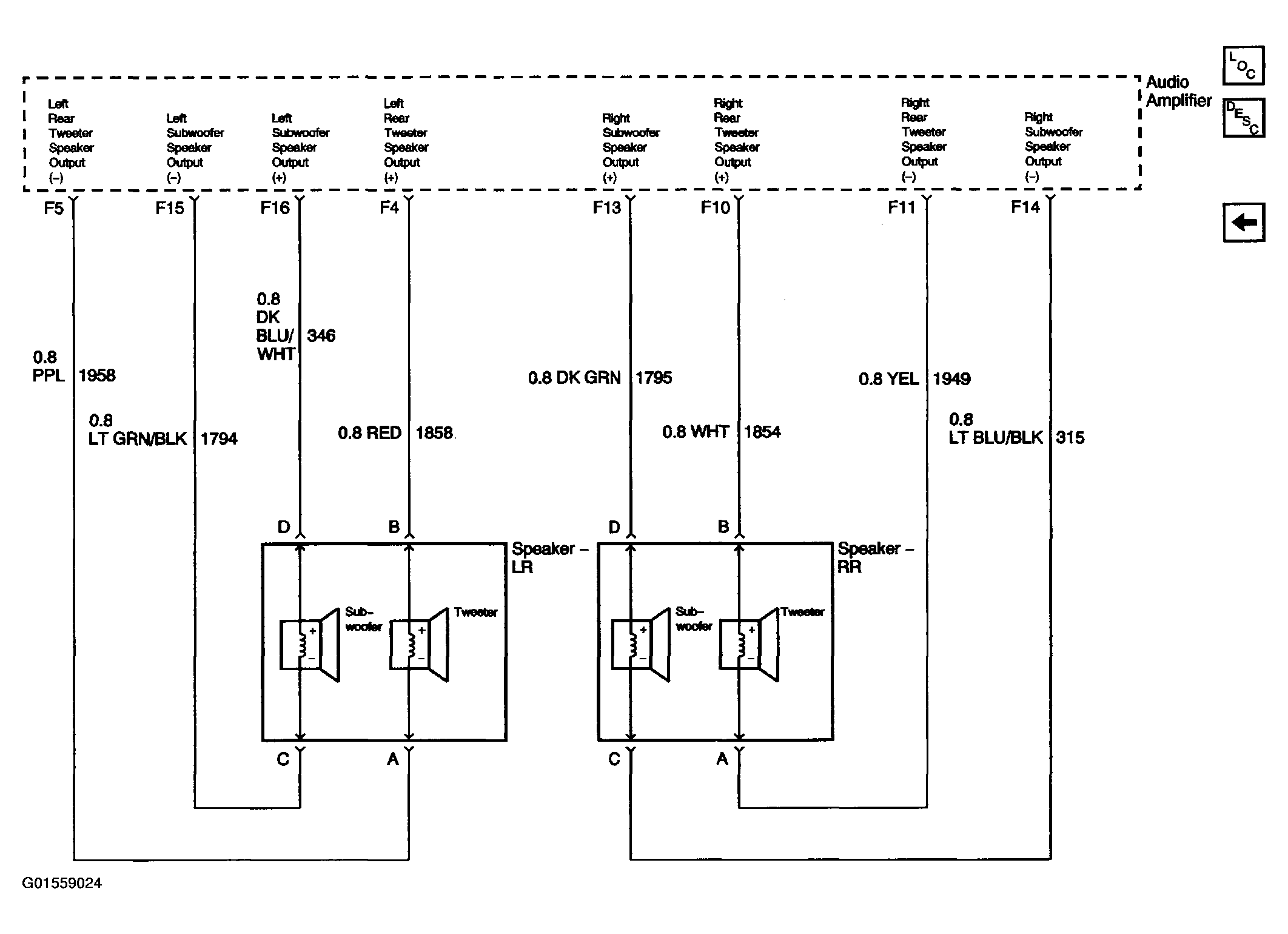

Fig 3: Radio/Audio System Schematic (Amplifier Power, Ground And Outputs (UQ3))
Courtesy of GENERAL MOTORS CORP.

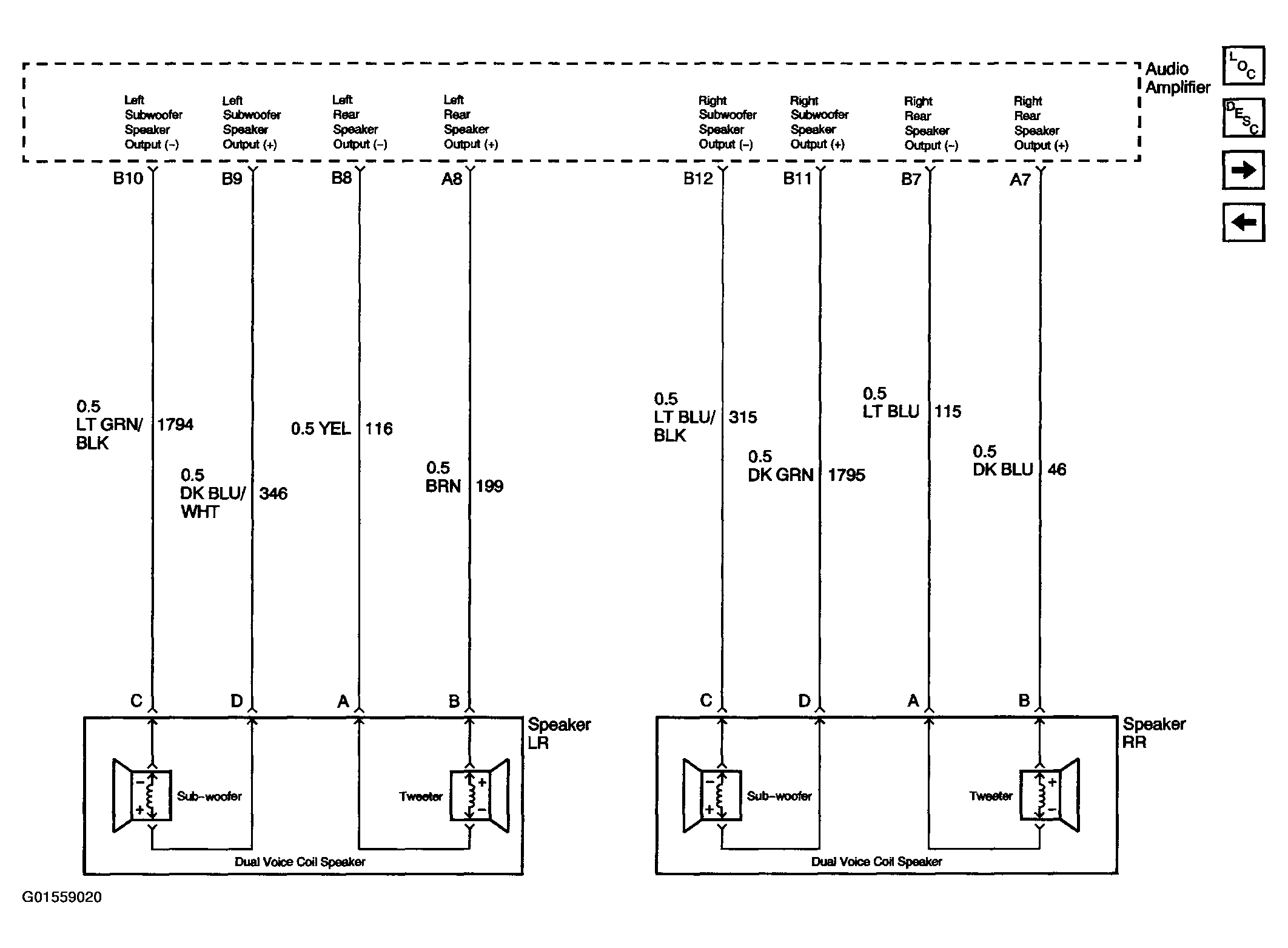

Fig 4: Radio/Audio System Schematic (Speakers - Rear UQ3)
Courtesy of GENERAL MOTORS CORP.

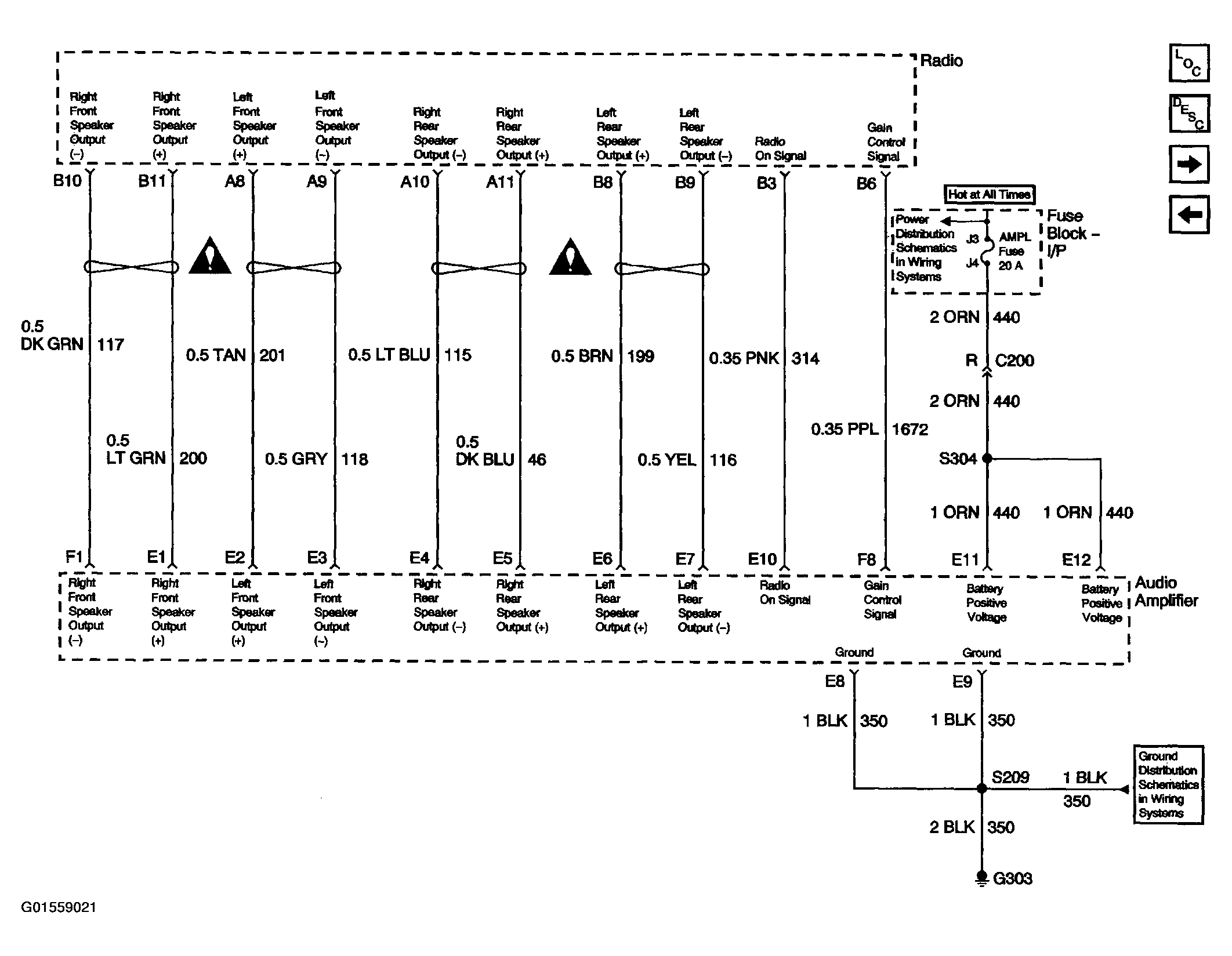

Fig 5: Radio/Audio System Schematic (Amplifier Power, Ground And Outputs U85)
Courtesy of GENERAL MOTORS CORP.

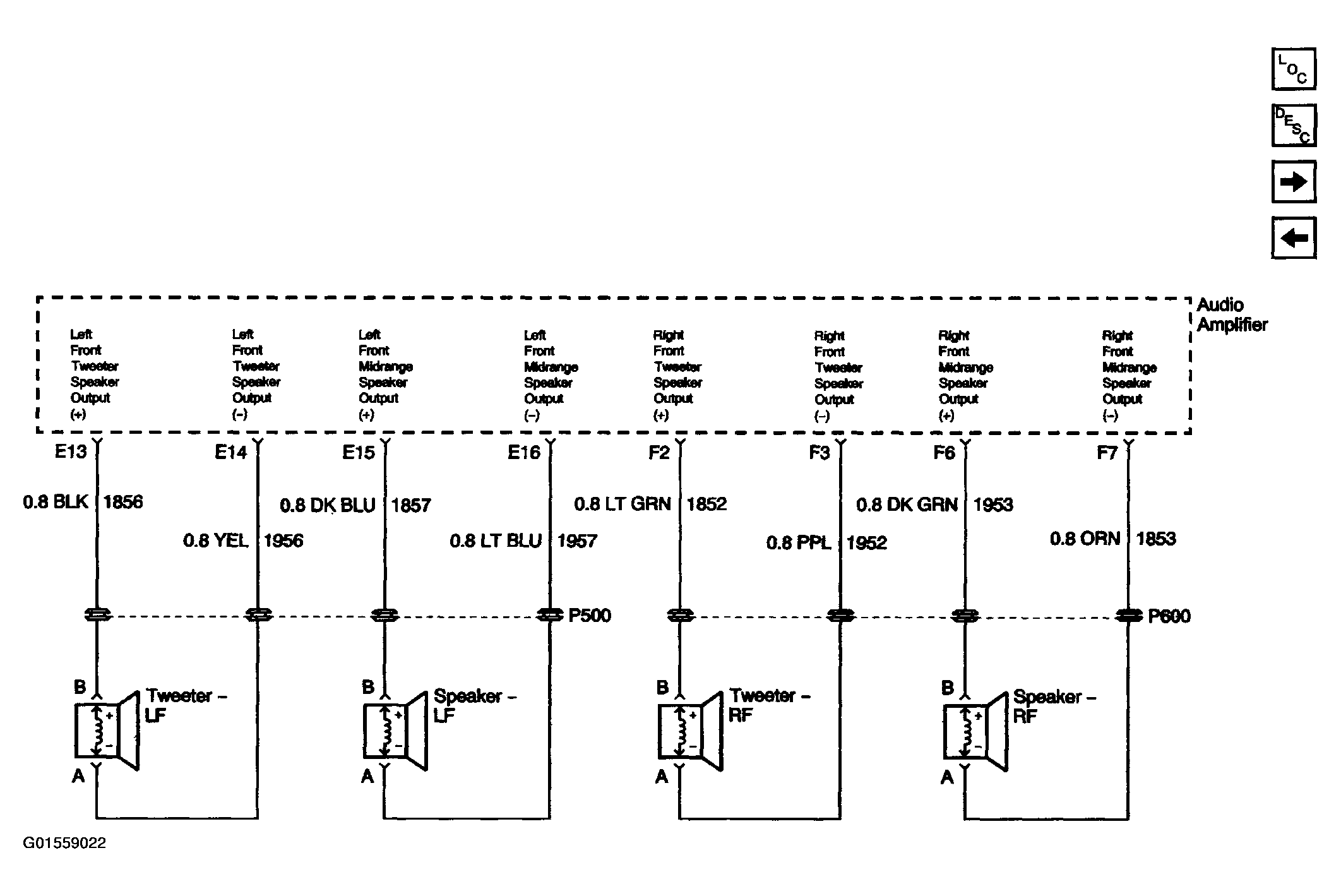

Fig 6: Radio/Audio System Schematic (Speakers - Front U85)
Courtesy of GENERAL MOTORS CORP.

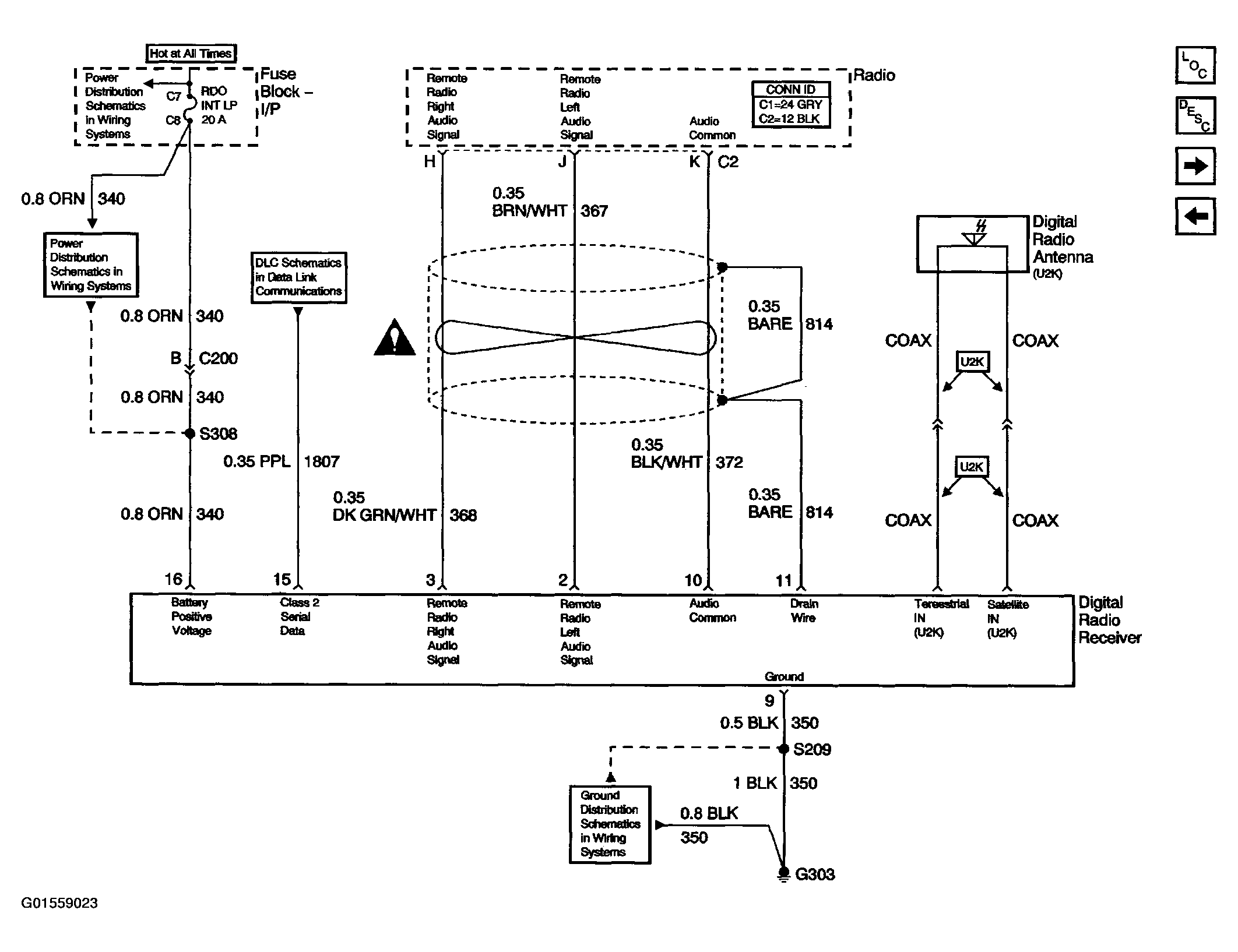

Fig 7: Radio/Audio System Schematic (Digital Radio Receiver U2K)
Courtesy of GENERAL MOTORS CORP.

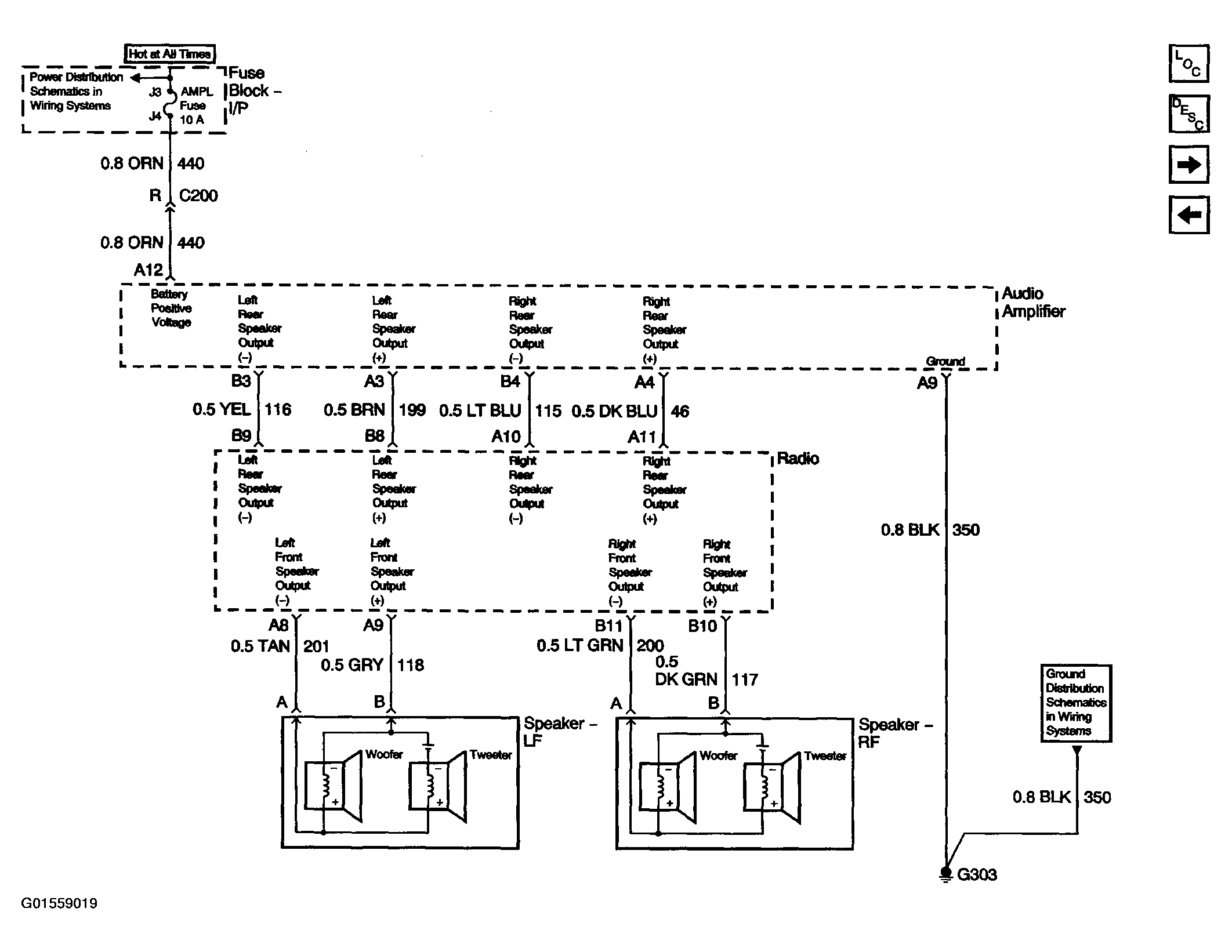

Fig 8: Radio/Audio System Schematic (Speakers - Rear U85)
