Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Press the tab on the front of the rear speaker spacer (3).
  3. Remove the speaker spacer (3) lifting up and out.
  4. Disconnect the electrical connector (1) from the speaker (2).
  5. Remove the rear speaker spacer (3) from the vehicle.

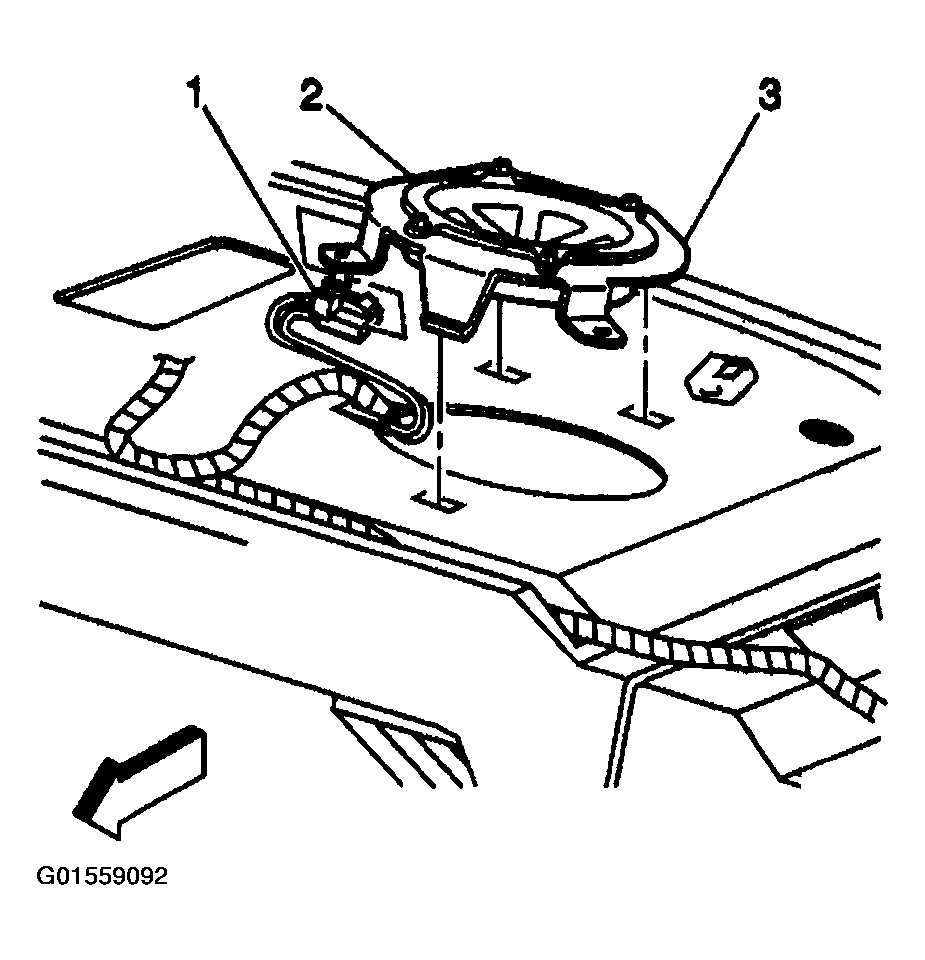

    Fig 1: Removing Rear Speaker From Rear Shelf
    G01559092Courtesy of GENERAL MOTORS CORP.
  6. Remove the screws (1) from rear speaker (3).
  7. Remove the rear speaker (3) from the spacer (2).

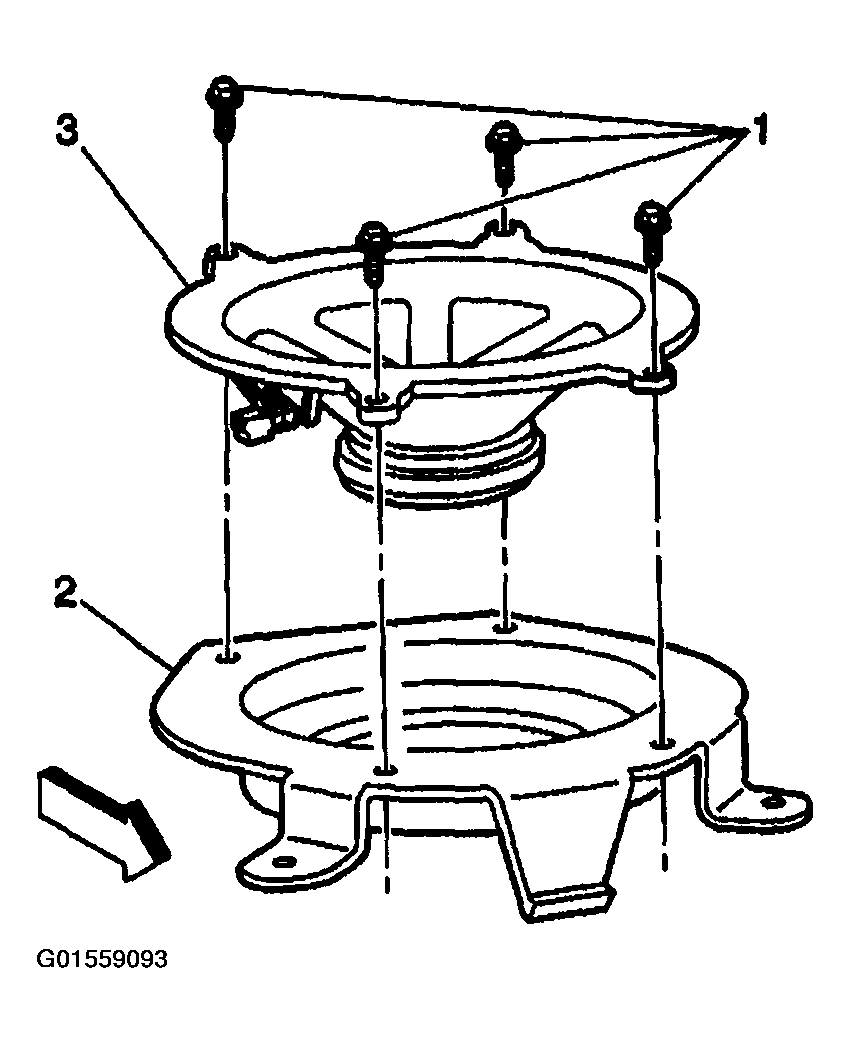

    Fig 2: Removing Screws From Rear Speaker
    G01559093Courtesy of GENERAL MOTORS CORP.
