Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear speaker (3) to the rear speaker spacer (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the rear speaker screws (1) to the rear speaker (3).

    Tighten

    Tighten the screws to 1.5 N.m (13 lb.in).

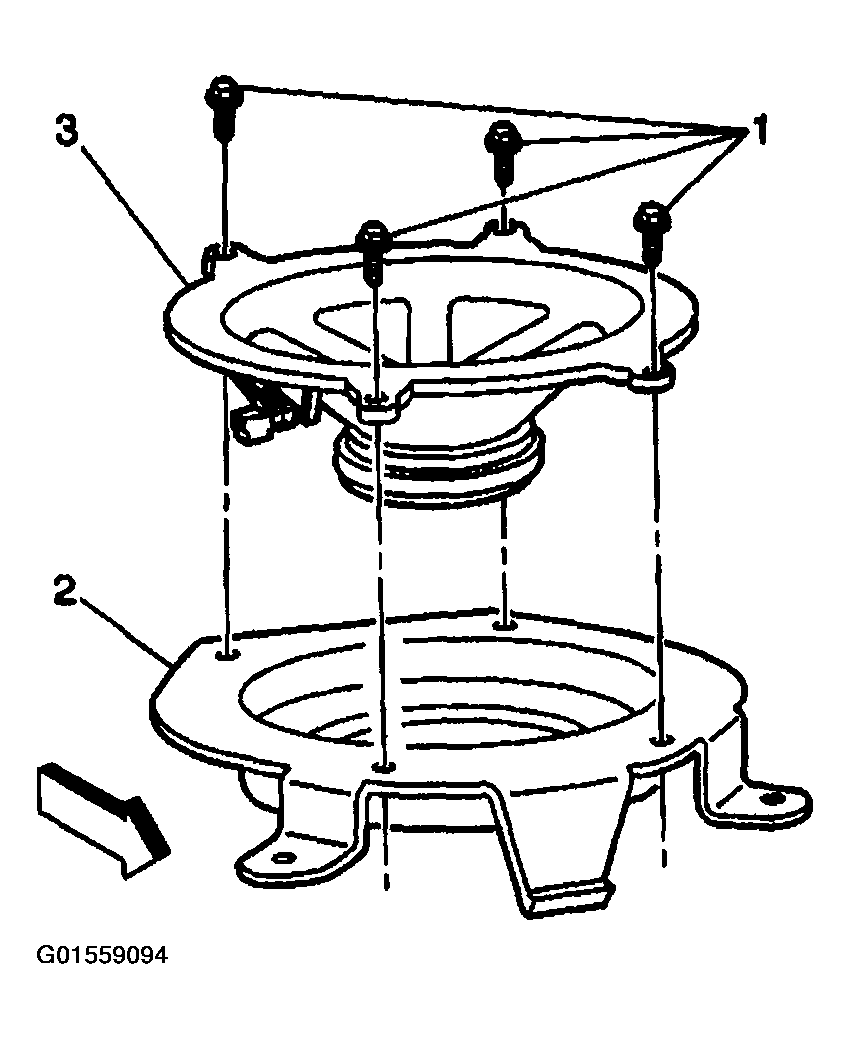

    Fig 1: Installing Screws To Rear Speaker
    G01559094Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector (1) to the rear speaker (2).
  4. Position the rear speaker spacer tabs (3) to the slots in the rear shelf.
  5. Install the rear speaker (2) to the rear shelf by pressing into place until fully seated.
  6. Install the rear window panel trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

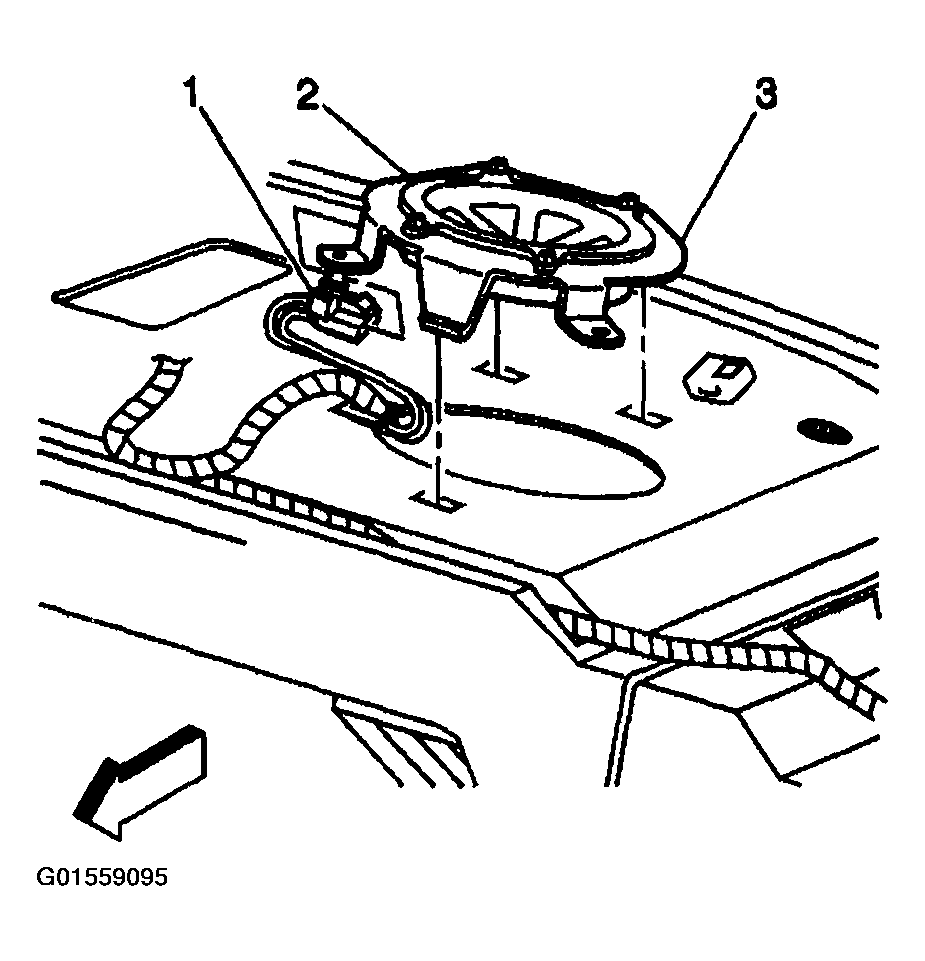

    Fig 2: Installing Rear Speaker To Rear Shelf
    G01559095Courtesy of GENERAL MOTORS CORP.
