Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC) or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET) in Doors.
  2. Disconnect the electrical connectors (1) and (2) from the speaker.
  3. Remove the bolts (3) from the speaker.
  4. Remove the front door speaker from the front door.

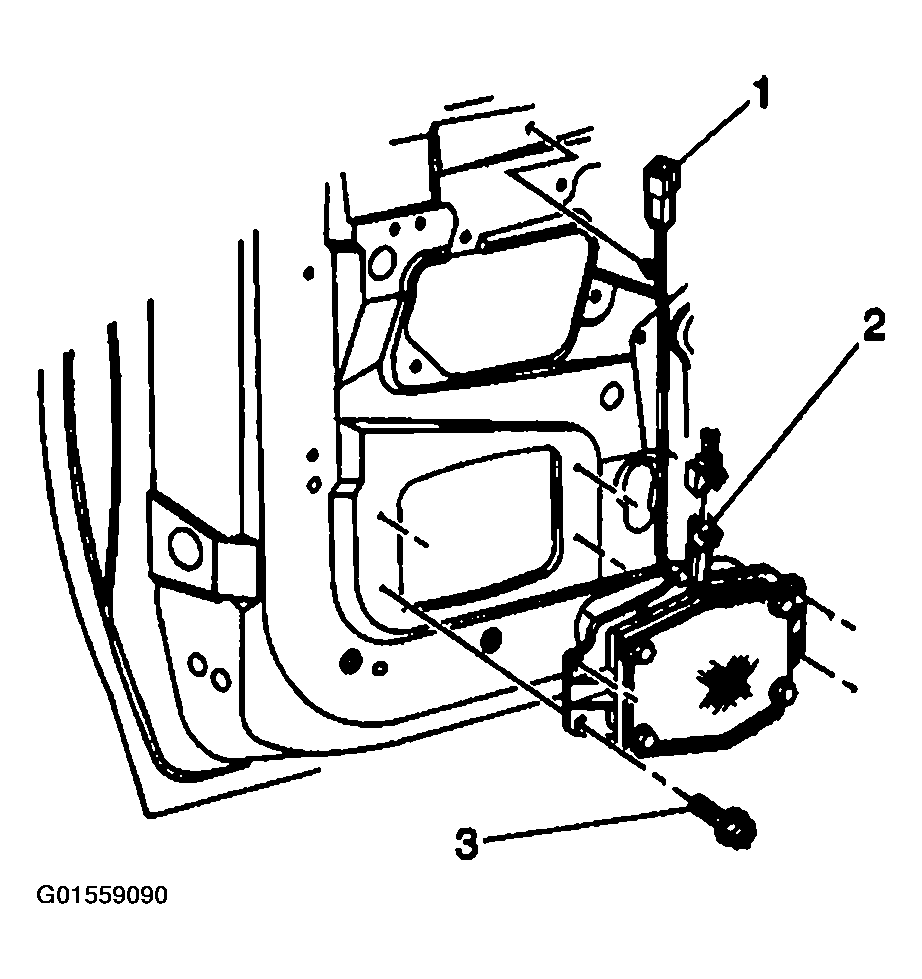

    Fig 1: Removing Front Door Speaker
    G01559090Courtesy of GENERAL MOTORS CORP.
