Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The tweeter speaker is not serviced separately from the speaker grille. Replace as an assembly.
  1. Remove the front door trim panel (3) from the inner door. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC) or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET) in Doors.
  2. Remove the retaining nuts (2) form the speaker grille on the back side of the trim panel (3).
  3. Remove the speaker grille (1) from the trim panel (3).

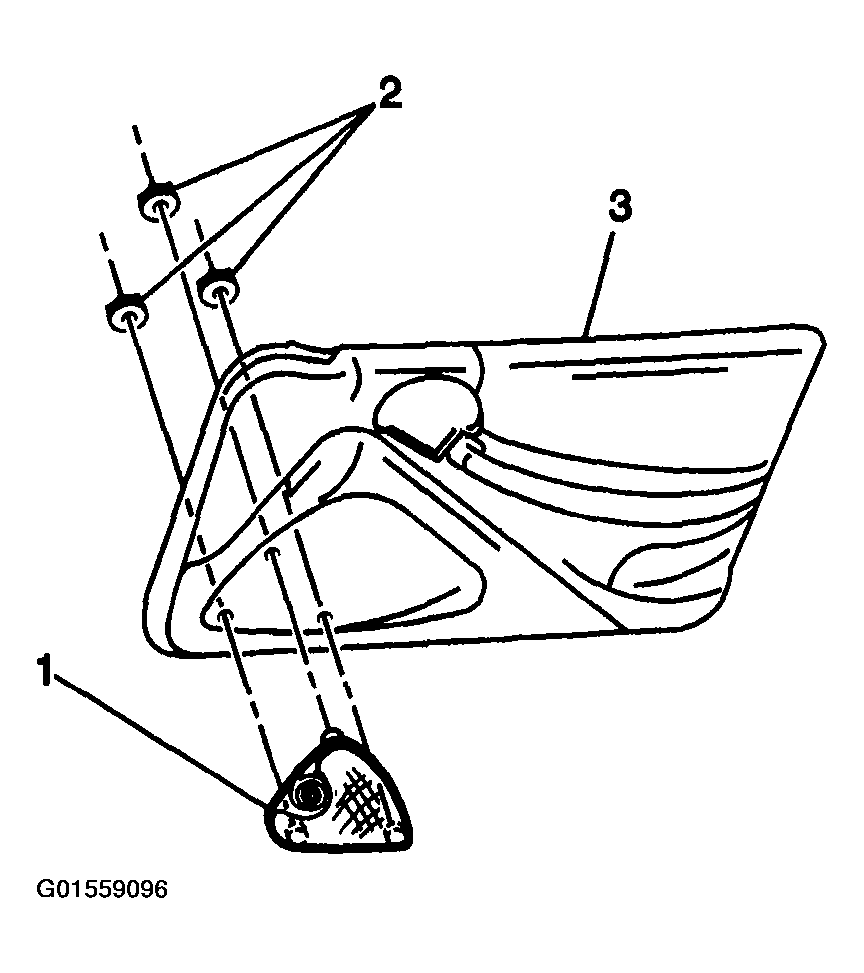

    Fig 1: Removing Front Speaker Grille
    G01559096Courtesy of GENERAL MOTORS CORP.
