Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.
  1. Pull back the rear compartment trim panel to gain access to the antenna.
  2. Remove the antenna mast (2) from the antenna base (1).
  3. Remove the antenna base screws (5) from the bracket on the antenna base (1).
  4. Remove the antenna base from the antenna mounting spacer (3) and the wheelhouse pinchweld flange.
  5. Disconnect the antenna lead-in (4) from the antenna base (1).

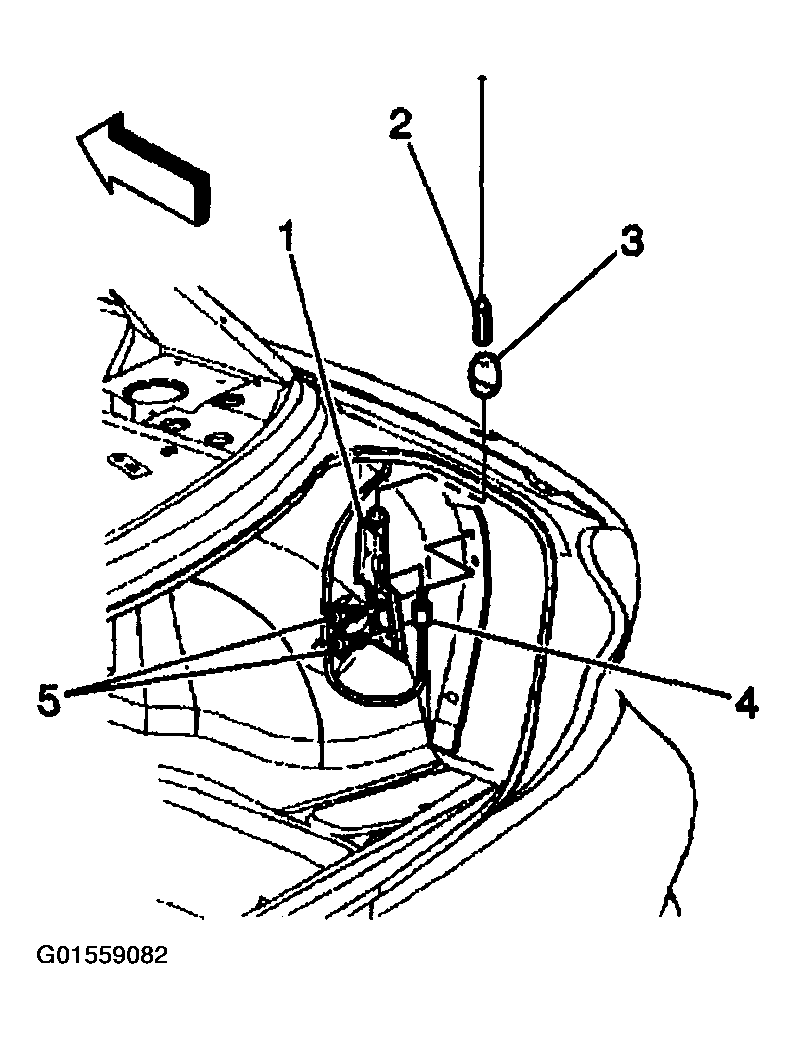

    Fig 1: Removing Fixed Antenna
    G01559082Courtesy of GENERAL MOTORS CORP.
