Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf trim panel if equipped with antenna amplifier. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER in Interior Trim.
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING in Seats.
  4. Remove the right carpet retainers. Refer to CARPET RETAINER REPLACEMENT (SEDAN) or CARPET RETAINER REPLACEMENT (COUPE) in Interior Trim.
  5. Remove the center pillar trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
  6. Pull back the carpet for access to the wiring harness as required.
  7. Disconnect the antenna coaxial cable from the rear of the radio. Refer to RADIO REPLACEMENT  .
  8. Cut off the visible end of the coaxial antenna cable (1) from the wiring harness in the instrument panel area.
  9. Cut off the visible end of the coaxial antenna cable from the wiring harness in the rear shelf area.

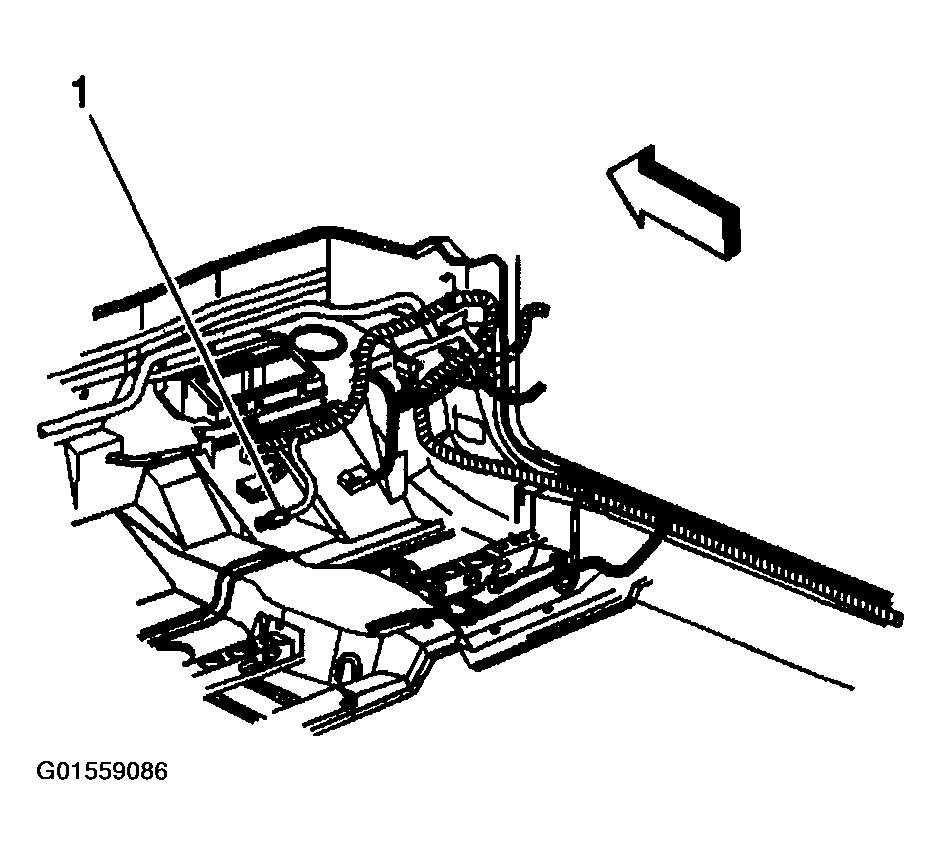

    Fig 1: Locating Coaxial Cable
    G01559086Courtesy of GENERAL MOTORS CORP.
