Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coaxial antenna cables to the wiring harness. Use electrical tape in order to secure the antenna extension cable to the top of the wiring harness. Secure the cable to the harness at least every 150 mm (6 in).
  2. Connect the coaxial antenna cable to the rear of the radio. Install the radio. Refer to RADIO REPLACEMENT  .
  3. Reposition the carpet.
  4. Install the center pillar trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR in Interior Trim.
  5. Install the right carpet retainers. Refer to CARPET RETAINER REPLACEMENT (SEDAN) or CARPET RETAINER REPLACEMENT (COUPE) in Interior Trim.
  6. Position the coaxial antenna cable from the body wiring harness to the rear shelf area.
  7. Install the rear shelf trim panel if equipped with antenna amplifier. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER in Interior Trim.

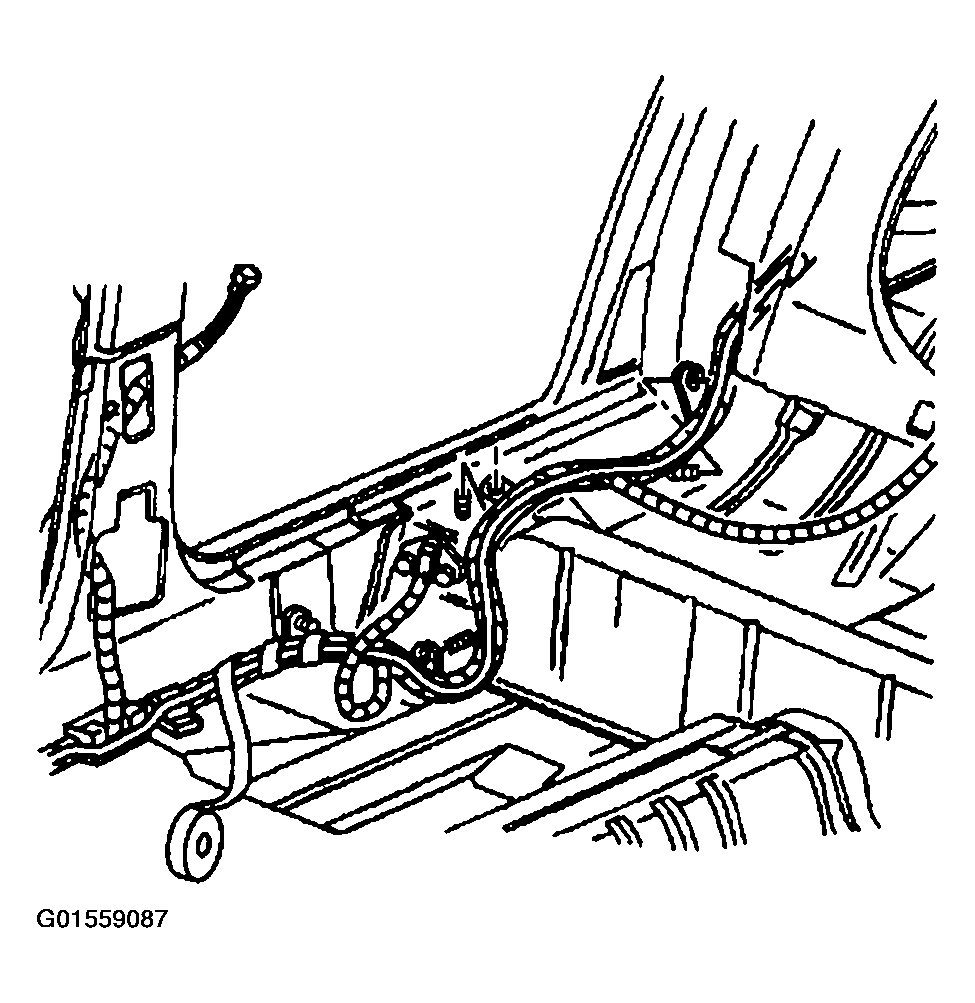

    Fig 1: Replacing Coaxial Cable
    G01559087Courtesy of GENERAL MOTORS CORP.
  8. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING in Seats.
  9. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
