Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the replacement coaxial cable (4) along side the old coaxial cable harness. Secure the new coaxial cable to the old coaxial harness every 150 mm (6 in) with electrical tape, nylon straps, or a hot glue gun.
  2. Connect the coaxial cable to the pigtail connector (2) at the antenna base.
  3. Install the headliner (8) to the original position. Refer to HEADLINER REPLACEMENT in Interior Trim.
  4. Install the coax cable connector (5) to the digital radio receiver.
  5. Install the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

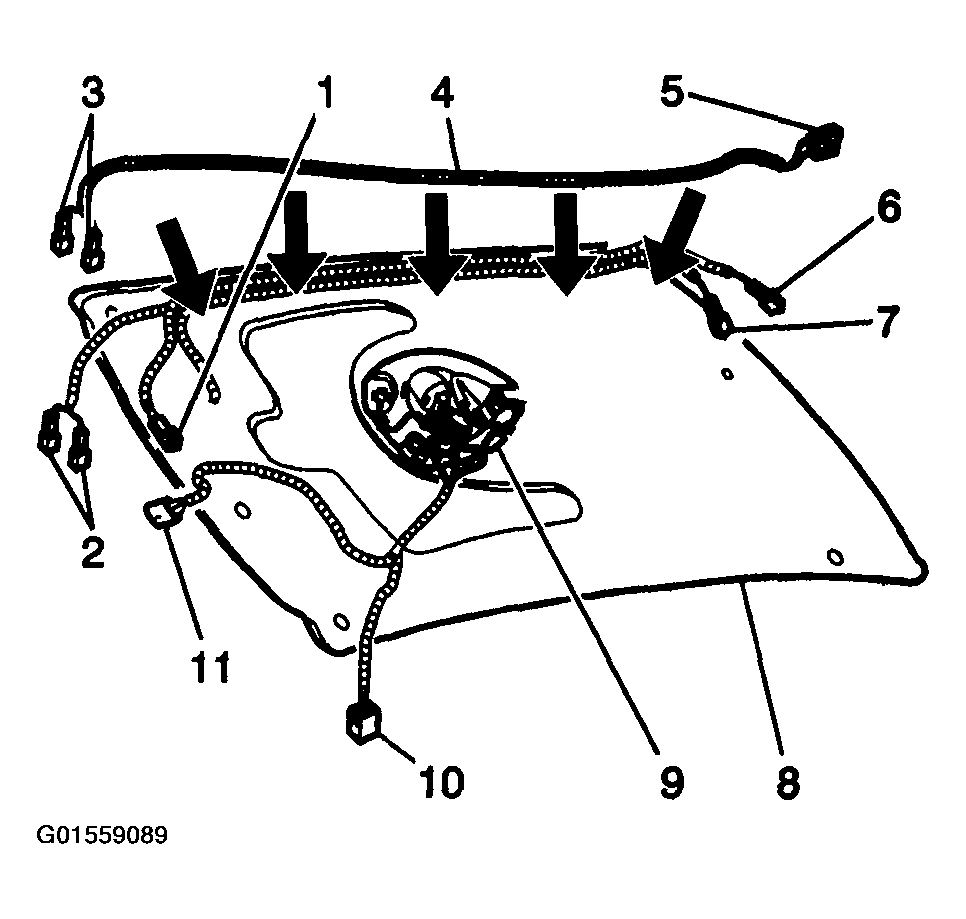

    Fig 1: Installing Digital Radio Coaxial Cable
    G01559089Courtesy of GENERAL MOTORS CORP.
