Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove enough of the headliner in order to expose the antenna base and the electrical connections. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Release the locking tabs for the antenna leads (2)
  3. Disconnect the antenna leads (2) from the headliner wire harness assembly.
  4. Remove the power sunroof motor/actuator, if equipped. Refer to SUNROOF MOTOR/ACTUATOR REPLACEMENT in Roof.
  5. Remove the antenna base nut (3).
  6. Remove the antenna base (1) from the vehicle roof.
  7. Route the antenna leads (2) through the opening in the vehicle roof (4).

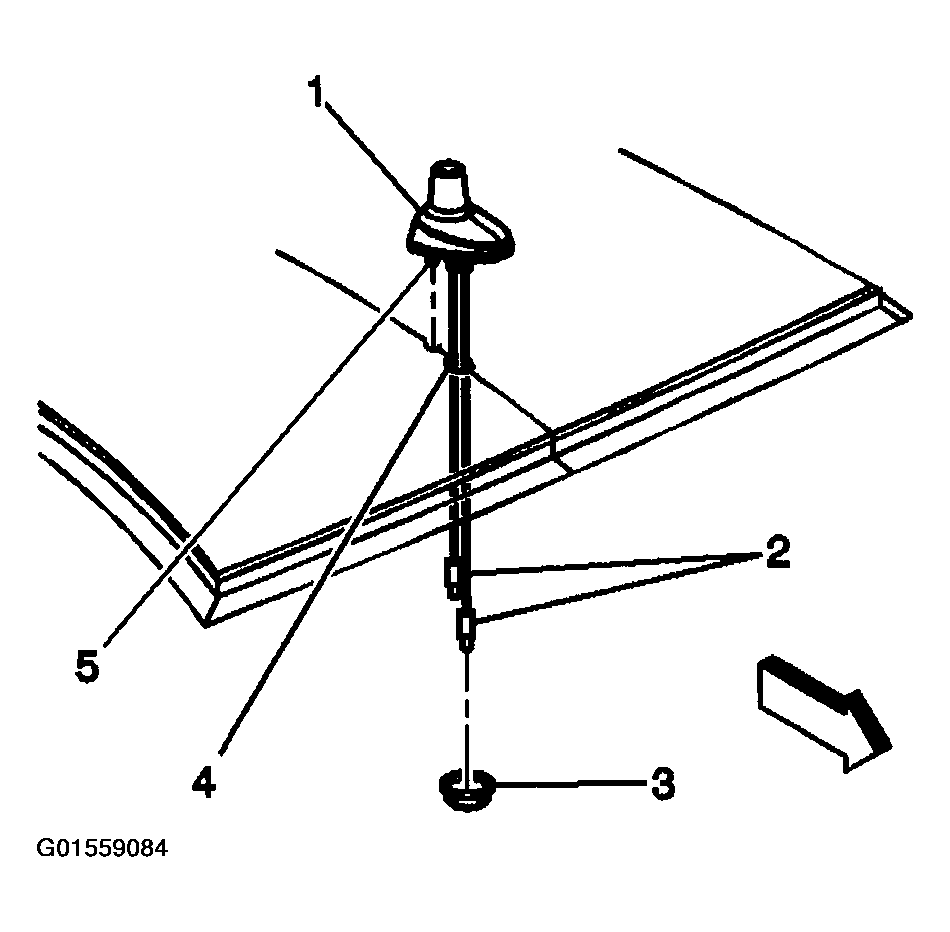

    Fig 1: Removing Digital Radio Antenna
    G01559084Courtesy of GENERAL MOTORS CORP.
