Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the antenna leads (2) through the opening in the vehicle roof (4).
  2. Align the locating pin (5) on the antenna base (1) to the vehicle roof.
  3. Install the antenna base (1) to the vehicle roof.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the antenna mounting nut (3).

    Tighten

    Tighten the nut to 6 N.m (53 lb.in).

  5. Install the power sunroof motor/actuator. Refer to SUNROOF MOTOR/ACTUATOR REPLACEMENT in Roof.
  6. Connect the antenna lead (2) to headliner wire harness assembly.
  7. Press the connector until the locking tabs are fully engaged.
  8. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

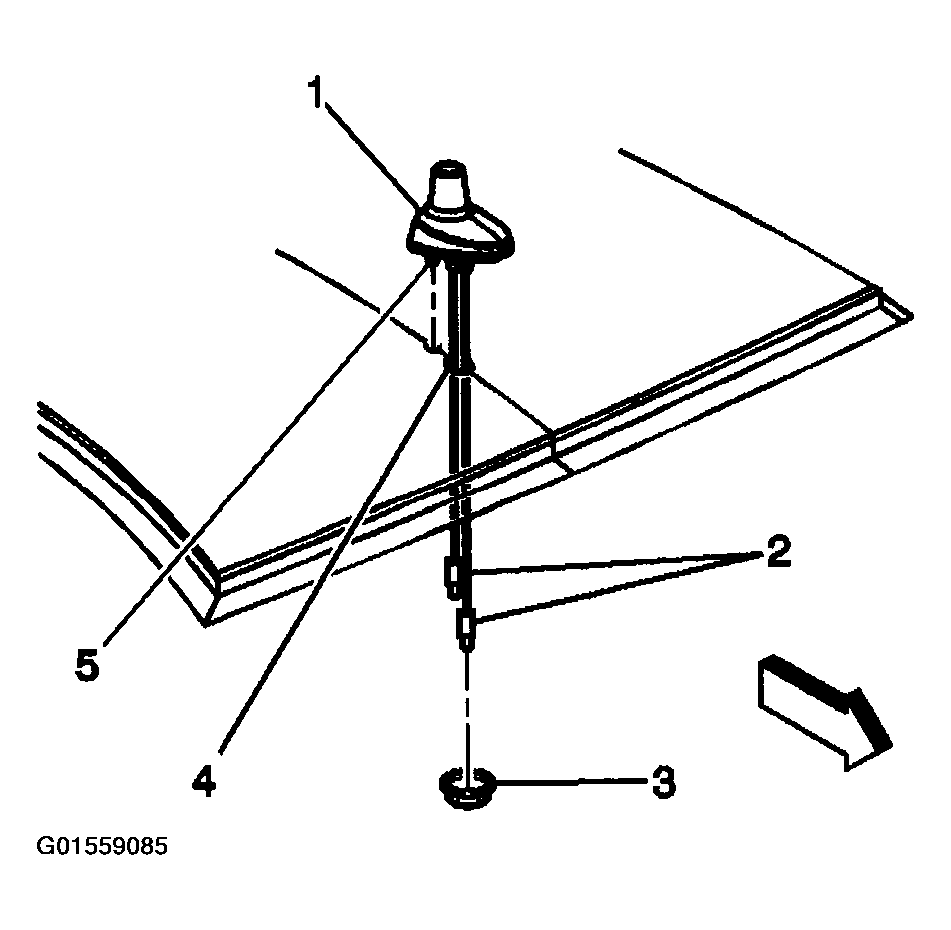

    Fig 1: Installing Digital Radio Antenna
    G01559085Courtesy of GENERAL MOTORS CORP.
