Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the rear compartment trim panel to gain access to the amplifier. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  2. Remove the amplifier nuts.

    Remove the amplifier from the bracket.

  3. Disconnect the electrical connector from the amplifier.

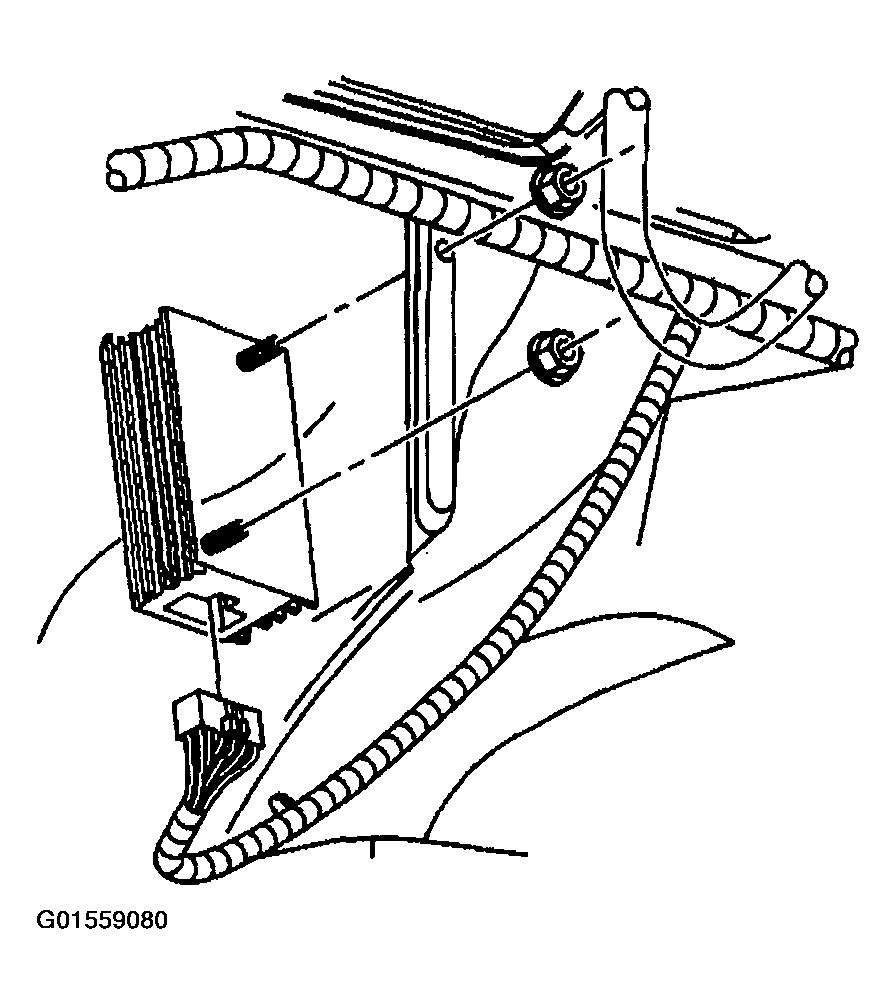

    Fig 1: Disconnecting Electrical Connector From Amplifier
    G01559080Courtesy of GENERAL MOTORS CORP.
